Product Description

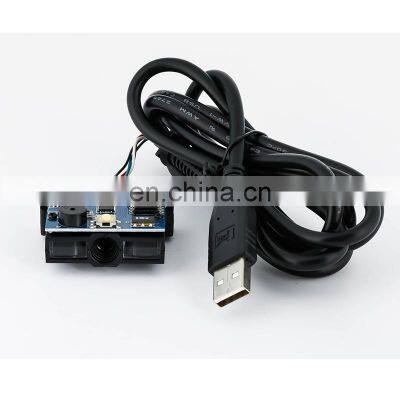

1d ccd Scan Engine USB KB RS232 Barcode Scanner Module
Physical Parameter
Device Weight |
<16g |
|
|
Device Dimension |
32.2mm L * 44.15mm W * 20mm H |
|
|
Cable Length |
1500mm(optional) |
|
|
Interface |
USB/TTL-RS232/RS232/PS2 |
|
|
Connector |
11pin pitch 1.25 |
|
|
Performance parameters |
|
Light source |
632nm visible red light |
|
|
Image Sensor |
Linear CCD Sensor |
|
|
Processor |
ARM32-bit |
|
|
Depth of field |
3-70CM |
|
|
Resolution |
≥3mil/0.1mm@PCS90% |
|
|
Print Contrast |
30%PCS |
|
|
Work Voltage |
DC 3.3-5V |
|
|
Electriccurrent |
110mA(work);30mA(stand by) |
|
|
Image Resolution |
2500dpi |
|
|
Ambient illumination |
100,000Lux Max |
|
|
|
EAN-8, EAN-13, Codabar, CODE11, CODE 39, CODE 93, CODE128,China |
|
Post, GS1-128, GS1 Limited, GS1 Omnidirectional, UPC-A, UPC-E, |
Decode Capability |
ISBN/ISSN, ISBT , Interleaved 2 of 5, Matrix 2 of 5, Industrial 2 of 5, MSI, |
Plessey, ITF14. |
|
|
|
|
|
Environmental parameters |
|
Operating Temperature |
-20℃ to 50℃ |
Storage Temperature |
-40℃ to 70℃ |
Relative humidity |
5% to 95%(Non-condensing) |
Drop test |
1.2meter,100times |
Shock resistance |
10H@125RPM |
If you are interested in our products,please click here.
RAKINDA (Rakinda Technologies Co., Ltd) is a company established in 2000. Our offices are located at GuangZhou, Shenzhen, Xiamen, Suzhou and Beijing. With Auto ID technology as our major focus, we are devoted to provideing enterprise-grade competitive IoT solutions and serves for clients.
Q1: Can I get some samples? Are they free?
A1: We support 1pc sample order. Samples should be paid.
Q2: Can I get extra cables for the scanners?
A2: Yes you can. We will provide according to your request.
Q3: How can I buy?
A3: We are trade assurance supplier at Alibaba. You can start online order directly. Or pls contact us first according to the contact info. We will send you proper link directly.
Q4: What is your payment method?
A4: We accept online credit card, TT, Paypal, Western Union.
Q5: Can I visit your factory:
A5: Yes, you are warmly welcome.
Q6: How long is your warranty time:
A6: 1 Year.
Q7: Where can we download the user manual of the scanners?
A7: We will send by email after you get samples.
Q8: What's the lead time?
A8: For sample, it is typically within 3 days. For bulk order, it depends on quantity and model you order.
Q9: Can you provide OEM service?
A9: Yes. We need further discuss about details.
Q10: How do you ship the scanners usually?
A10: Since it is light and compact, we usually use DHL, UPS, Fedex, TNT and post air mail.
