Rakinda Desktop 1D 2D Barcode Reader Scanner for Mobile Payment with USB and White LED Light Source

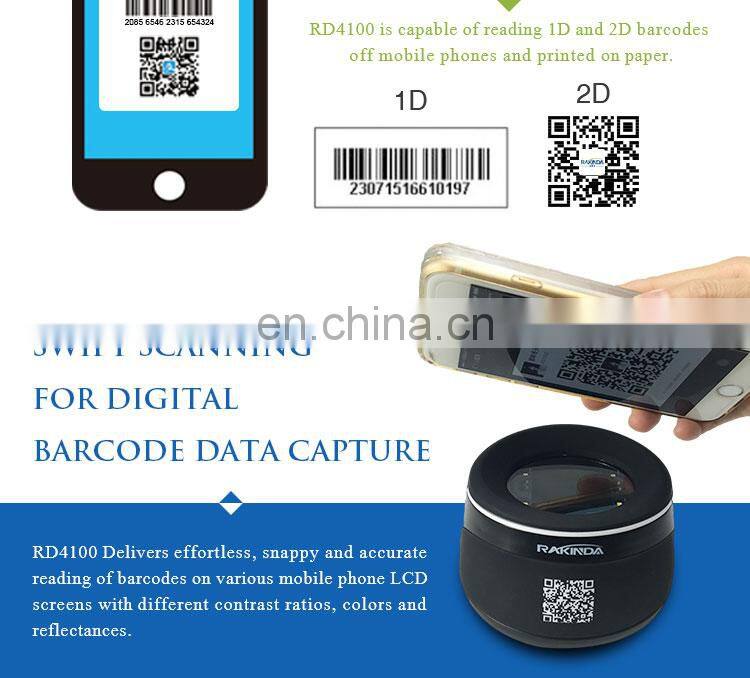

RD4100 2D barcode scanner module brings the benefits of barcode scanning to all types of OEM devices. It is widely used in APP QR pay scanning, QR code ticketing validation, 2D code meeting attendance, Mobile Payment, Chain Restaurant, Garment industry, Metro card recharge, Hotel etc.
Product Features:

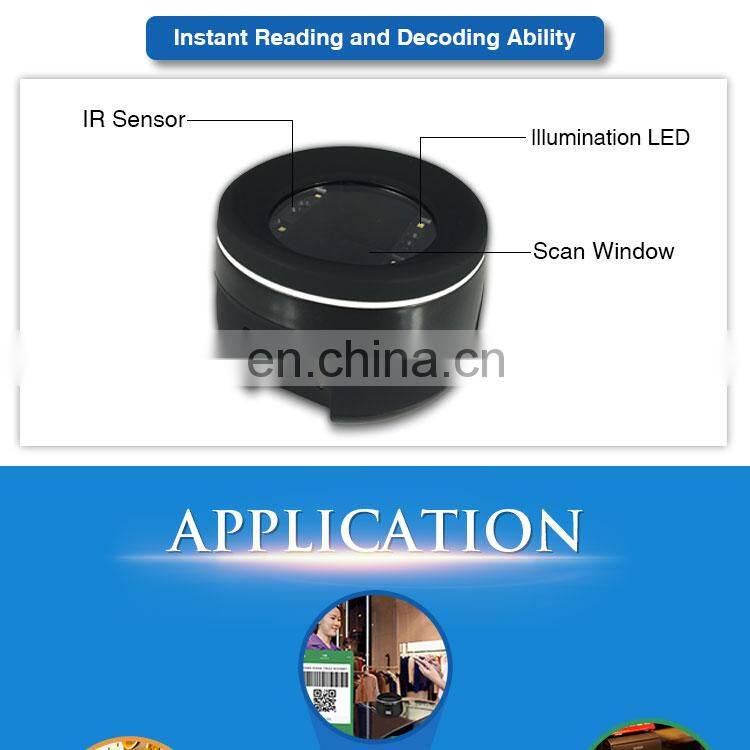

1) RD4100 is a compact long range CMOS barcode scanner module with high sensitive linear image sensor and built in auto sense function.
2) RD4100 decode board is powered by a fast processor and to decode a wide array of 1D 2D barcodes. The decode board is compatible with Utility, a PC based software for easy configuration.
3) RD4100 is designed with the industrial standard size, mounting options and output to facilitate integration into existing applications.
Application:
APP QR pay scanning, QR code ticketing validation, 2D code meeting attendance, Mobile Payment, Chain Restaurant, Garment industry, Metro card recharge, Hotel etc.

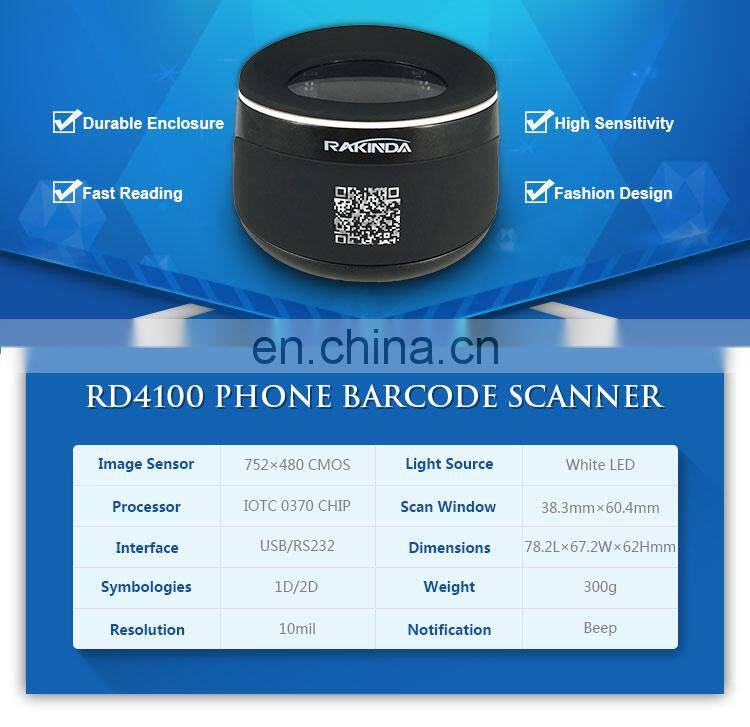

Product Parameters:
| Product name | 2D Barcode Scanner |
| Item number | RD4100 |

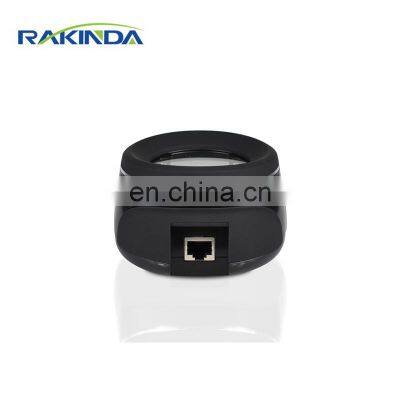

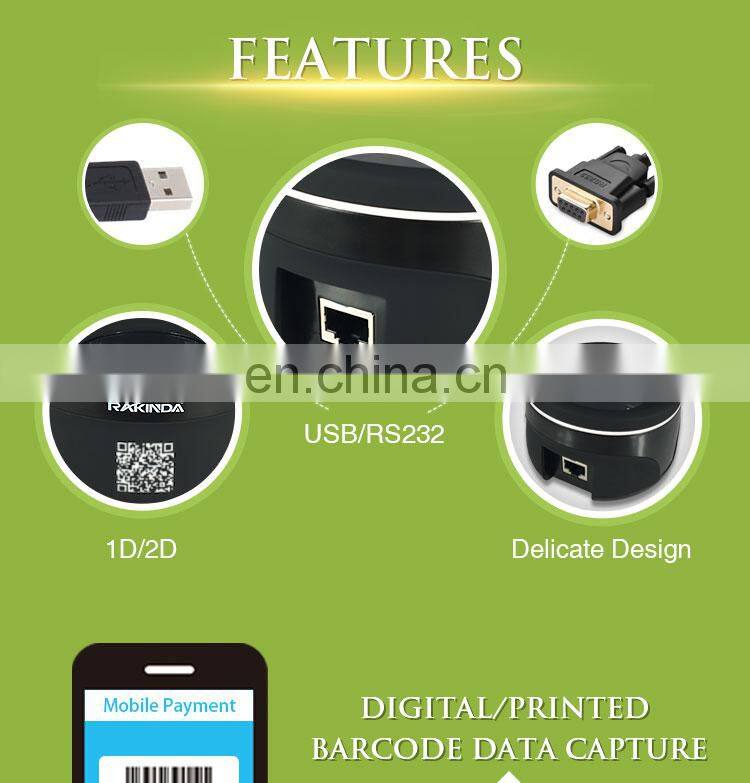

| Interface | RS232/ USB |
| Image Sensor | 752 x 480CMOS |
| Symbologies |
2D: PDF417, Data Matrix, QR Code 1D: EAN-13, EAN-8, UPC-A, UPC-E, ISSN, ISBN, |
| Precision | 10 mil |
| Light Source | White LED |
| Scan Window | 38.3mm*60.4mm |
| Depth of Field* | 40mm-430mm |
| Print Contrast Signal | ≥ 30% |
| Illumination | 0 ~ 100,000 LUX |
| Power Consumption | 1.75W (max) |
| Power Adaptor | Output: DC5V, 0.5A, Input: AC100~240V, 50~60Hz |
| Weight | 300g |
| Dimensions | 90mm(Diameter) x 60mm(H) |
| Notification | Beep |
| Operating Temperature | -10 ℃ to + 50 ℃ |
| Storage Temperature | -20 ℃ to + 60 ℃ |
| Humidity | 5% - 95% ( non-condensing ) |
| Certification | FCC Part15 Class B, CE EMC Class B |
| |
|
|
|
|
|
|
RAKINDA (Rakinda Technologies Co., Ltd) is a company established in 2000. Our offices are located at GuangZhou, Shenzhen, Xiamen, Suzhou and Beijing. With Auto ID technology as our major focus, we are devoted to provideing enterprise-grade competitive IoT solutions and serves for clients.
Q1: Can I get some samples? Are they free?
A1: We support 1pc sample order. Samples should be paid.

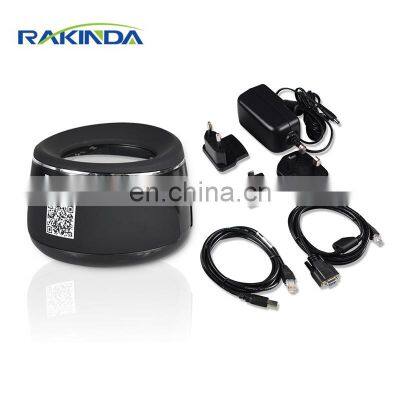

Q2: Can I get extra cables for the scanners?
A2: Yes you can. We will provide according to your request.
Q3: How can I buy?
A3: We are trade assurance supplier at Alibaba. You can start online order directly. Or pls contact us first according to the contact info. We will send you proper link directly.
Q4: What is your payment method?
A4: We accept online credit card, TT, Paypal, Western Union.
Q5: Can I visit your factory:
A5: Yes, you are warmly welcome.
Q6: How long is your warranty time:
A6: 1 Year.
Q7: Where can we download the user manual of the scanners?
A7: We will send by email after you get samples.
Q8: What's the lead time?
A8: For sample, it is typically within 3 days. For bulk order, it depends on quantity and model you order.
Q9: Can you provide OEM service?
A9: Yes. We need further discuss about details.
Q10: How do you ship the scanners usually?
A10: Since it is light and compact, we usually use DHL, UPS, Fedex, TNT and post air mail.
