Home > Office Supplies > Scanner > Mini CMOS 2D Scan Engine 2D Barcode Scanner Mount Fixed 2D QR Code Module

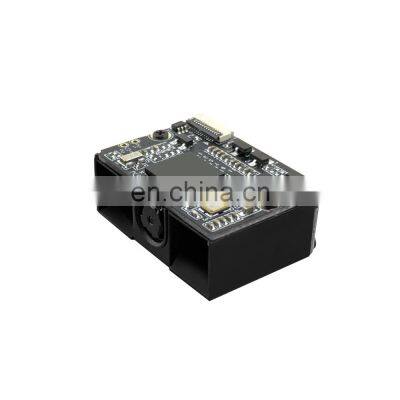

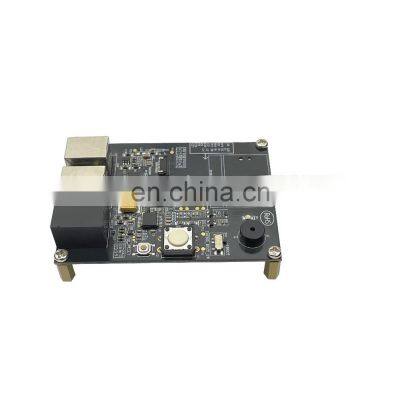

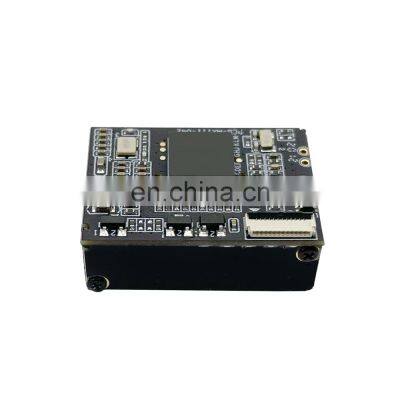

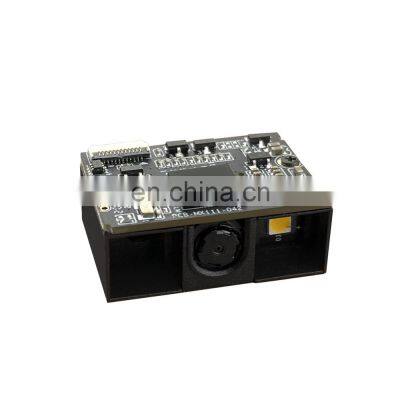

Mini CMOS 2D Scan Engine 2D Barcode Scanner Mount Fixed 2D QR Code Module
Negotiable
MOQ: 1 set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Business Type:
Agent
Year Established:
1993
Annual Export Value:
US$1.5 Million - US$2.5 Million
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
1D 2D Fixed Mount Barcode Scanner Module Access Control System Turnstiles Controller QR Code Reader Memory Card White LED 33gNegotiableMOQ: 1 -
USB / RS232 QR Code Mobile Online Payment QR Barcode Scanner BoxNegotiableMOQ: 1
-
OEM High Quality 3mil Laser 650nm CMOS Mini QR Code Reader Scanner 1D 2D Module for PDA Handheld DeviceNegotiableMOQ: 1
-
USB/ RS232/ KB OEM 1d Laser Arduino Barcode Scanner Module Barcode ModuleNegotiableMOQ: 1
-
RS232 Wiegand QR Code Scanner Module Rugged 2D Barcode Reader White LED Beeper, Green LED Indicator for Access Control RakindaNegotiableMOQ: 1
Mini CMOS 2D Scan Engine 2D Barcode Scanner Mount Fixed 2D QR Code Module 2d barcode scanner mount fixed 2d qr code module 2d scan engine
Product Description
Optical System |
640 pixels(H)x 480 pixels(V) |
Illumination Element |
Aiming: 617nm LED; Illumination 3200K White LED |
Depth of Field |
40 mm - 280 mm @UPCA -13 mil 100 %,PCS 90% |
Scan Angle |
38° (H) x 25° (V) |
Min. Bar Width |
0.1mm(4mil)@Code 39, PCS=90% |
Scan Mode |
Trigger mode, Auto-sensing, Continuous scan, Pulse mode |
Print Contrast |
> 30%(UPC/EAN 100% , PCS 90%) |
System Interface |
TTL232 (12pin), USB 1.1 (HID Keyboard、Virtual COM Port) |
Dimensions |
28.2mm x 20.5mm x 11.8mm |
Weight |
About 5g |
Input Voltage |
DC 3.3V±5% |
Operating Current |
130 mA ±5%（Typical）, 300 mA ±5%（Max.） |
Operating Temperature |
-20℃~50℃ |
Humidity |
5%~95% (non-condensing) |
Storage Temperature |
-40℃~+70℃ |
Light Level |
0~100,000Lux（fluorescence ） |
(1D 2D)
|
UPC/EAN/JAN,UPC-A & UPC-E,EAN-8 & EAN-13, JAN-8 &JAN-13, ISBN/ISSN, Code 39 (with full ASCII), Codabar (NW7), Code 128 & EAN128,Code 93,Interleaved 2 of 5 (ITF),Addendum 2 of 5, IATA Code,MSI/Plessy, China Postal Code,Code 32 (Italian Pharmacode),RSS14,RSS Limited, RSS Expanded PDF417 MicroPDF417 Data Matrix QR Code Micro QR Code Aztec Code Maxi Code
Reads barcode reliably ofcell phone screens
|
Mini CMOS 2D Scan Engine 2D Barcode Scanner Mount Fixed 2D QR Code Module 2d barcode scanner mount fixed 2d qr code module 2d scan engine
