Product Description
2D Scan for Bus Android Barcode Scanner Terminal QR Code Scanner Android QR Barcode Scanner
Product Introduction:

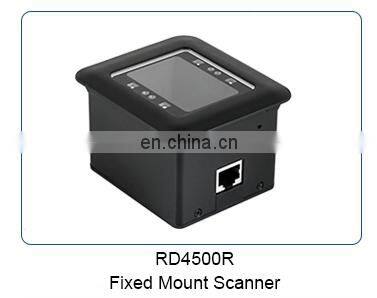

RD4500R fixed mount barcode scanner is designed primarily for such applications as electronic tickets/coupons, mobile marketing, mobile payment, kiosk, turnstile, and office automation, the series fixed mount barcode scanner is able to read barcodes on paper and mobile phones.
Compatible OS: Android, Windows, Linux

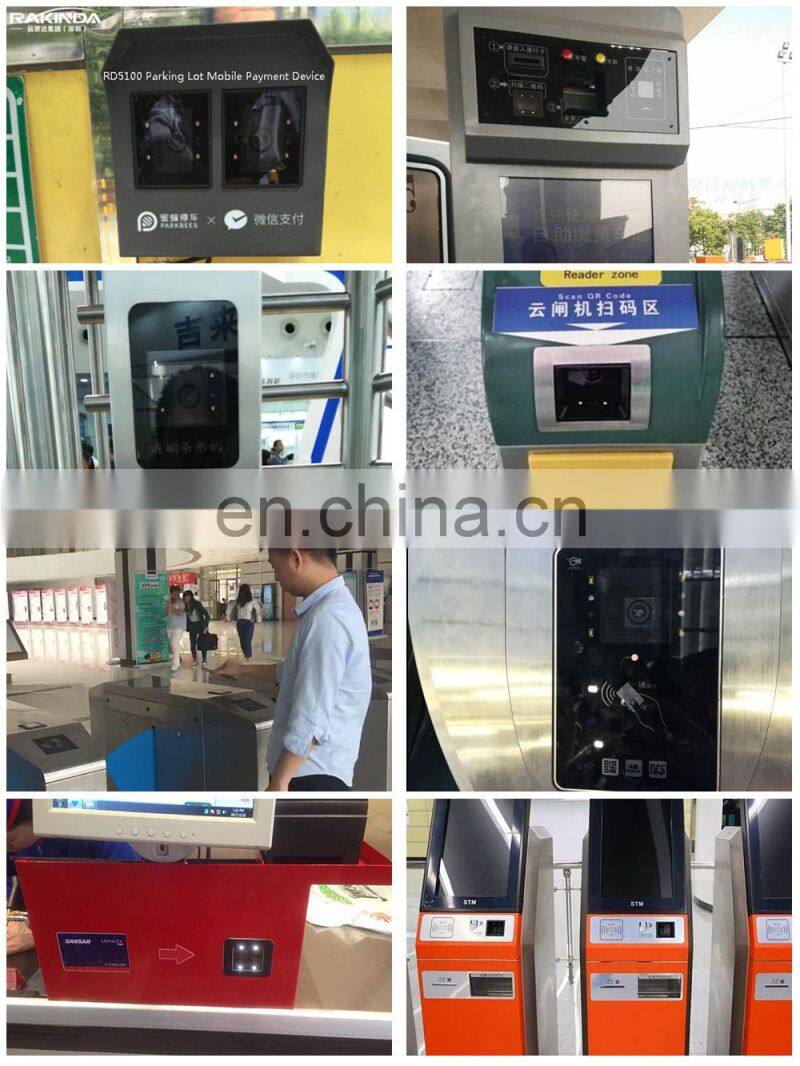

Projects: Turnstile, Kiosk, ATM, Payment Terminal, Ticketing Validator, etc.
RD4500R 2d barcode reader boasts the following features:

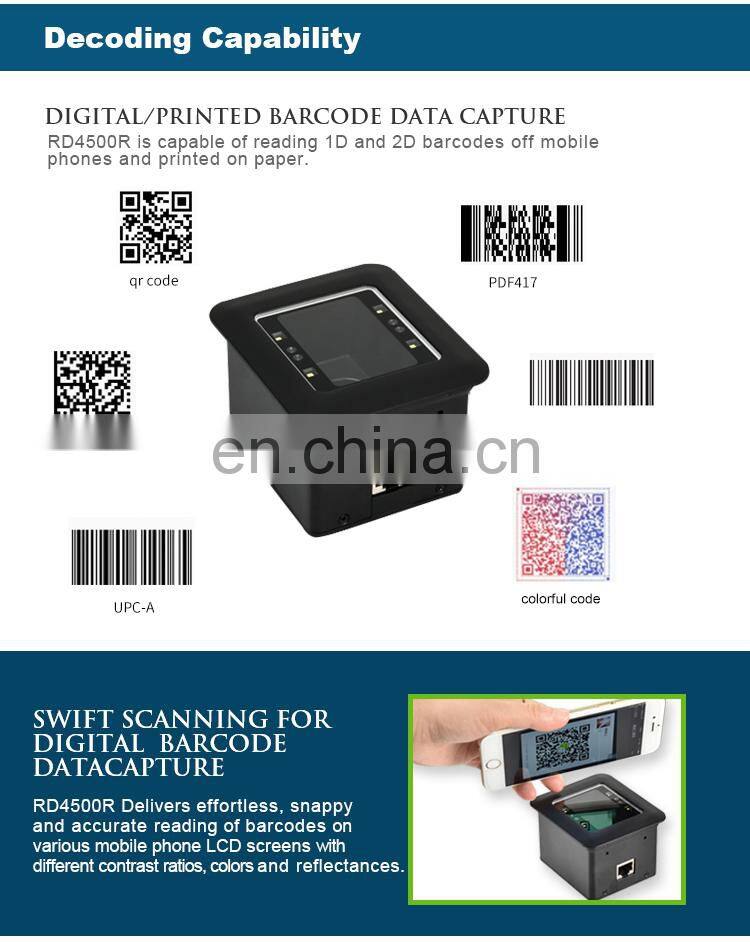

1. It can read both printed and phone screen 1D/2D barcodes

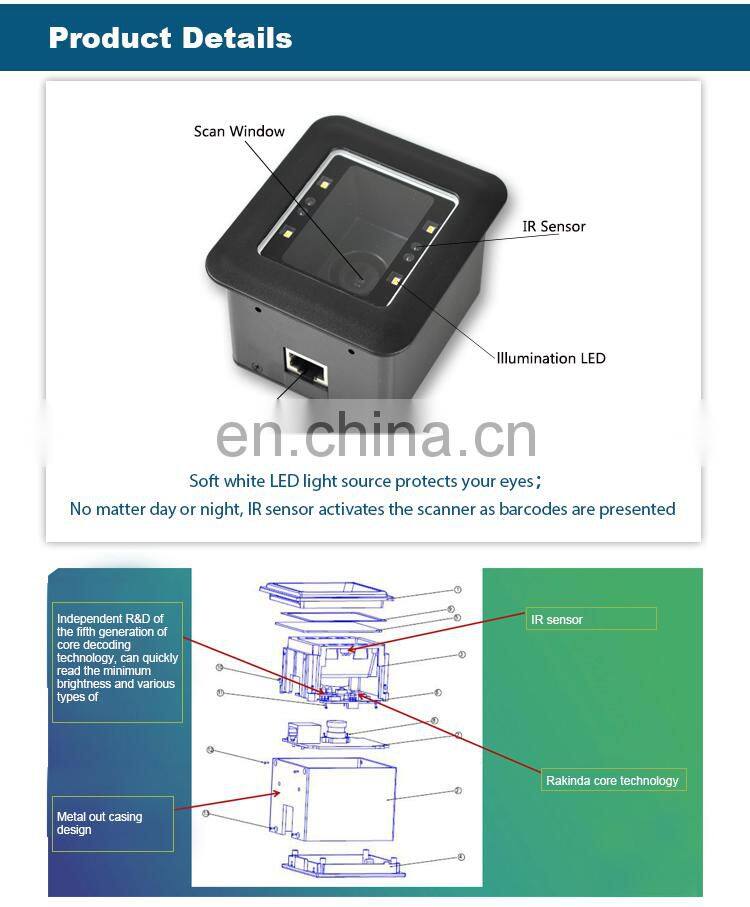

2. Designed with IR sensor, it can read even in total darkness.

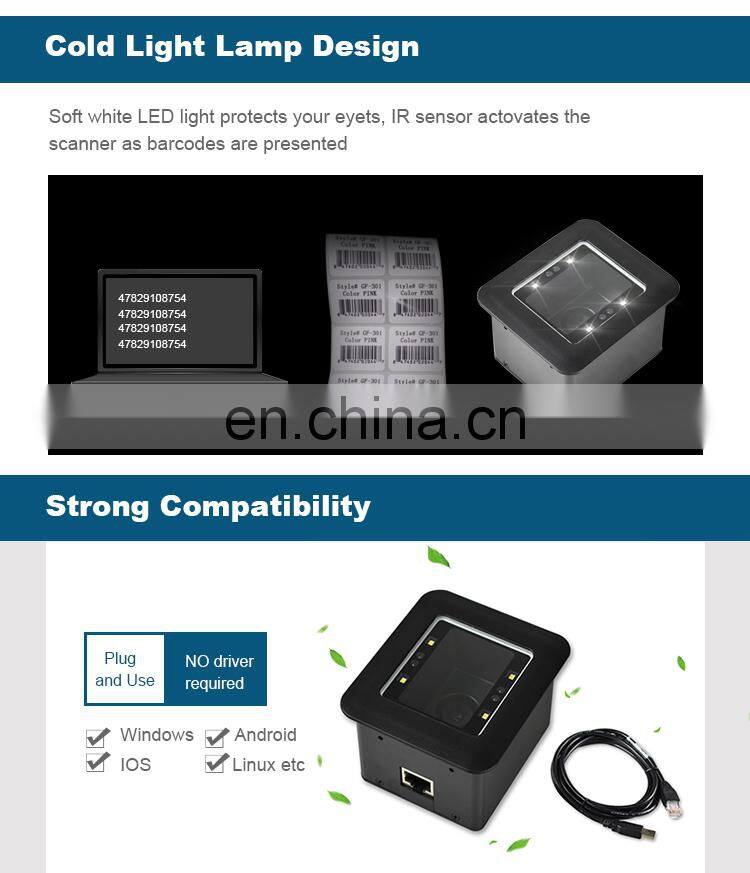

3. White LED light source protects users' eyes.
4. Instant reading and decoding within 0.3 sec.

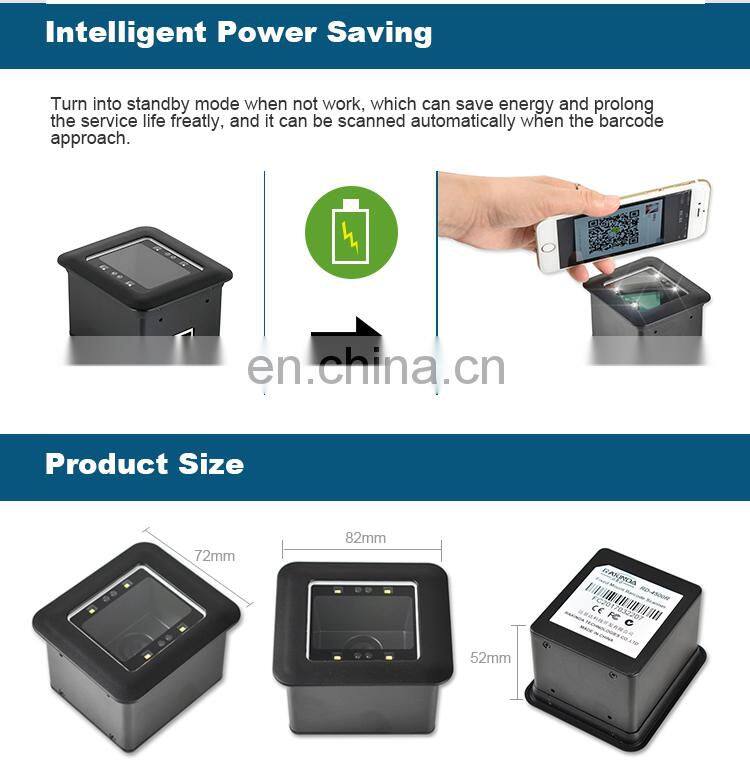

5.Outstanding Power Efficiency
6.The advanced technology incorporated in the scanner helps to reduce the power consumption and prolong the service life of the device

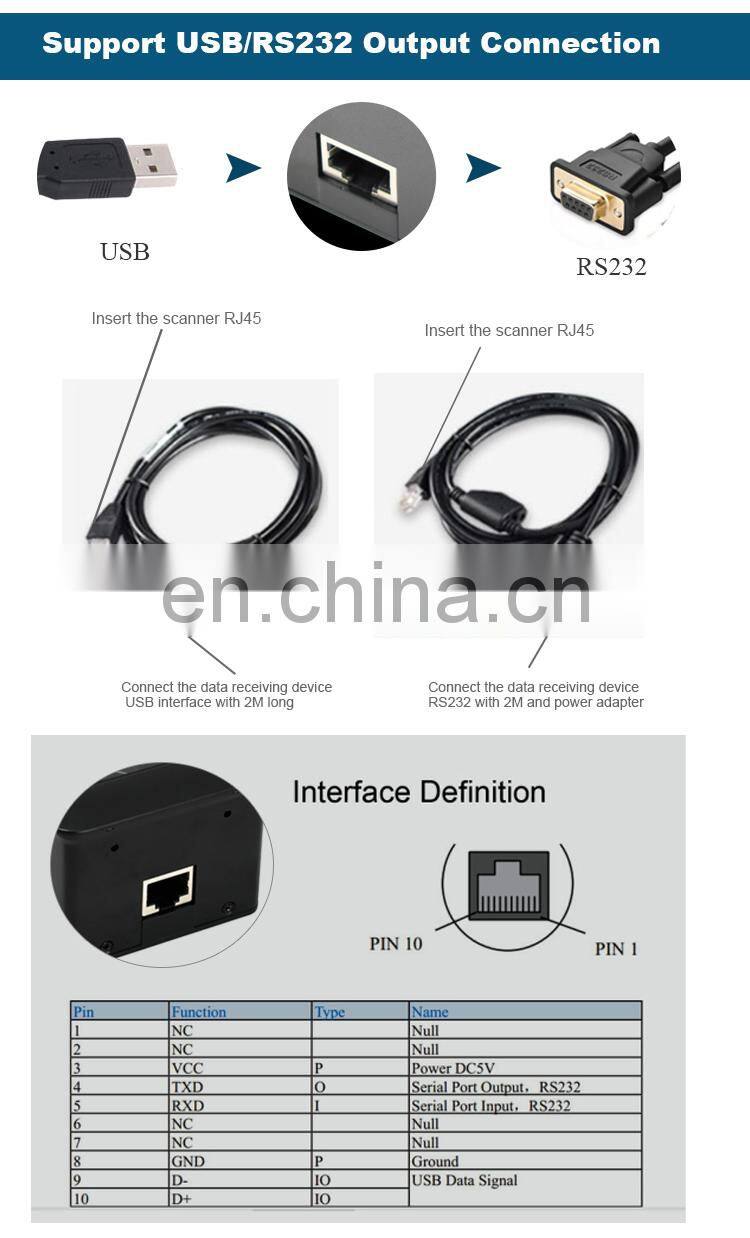

7.USB/RS232 Cable Power Adaptor
Product Specification:
| Product name | Fixed Mount 2D Barcode Scanner |
| Item number | RD4500R |
| Interface | RS232/ USB |
| Image Sensor | 752 x 480CMOS |
| Symbologies |
2D: PDF417, Data Matrix, QR Code 1D: EAN-13, EAN-8, UPC-A, UPC-E, ISSN, ISBN, |
| Precision | 10 mil |
| Light Source | White LED |
| Scan Window | 38.3mm*60.4mm |
| Depth of Field* | 40mm-430mm |
| Print Contrast Signal | ≥ 30% |
| Illumination | 0 ~ 100,000 LUX |
| Power Consumption | 1.75W (max) |
| Power Adaptor | Output: DC5V, 0.5A, Input: AC100~240V, 50~60Hz |
| Weight | 300g |
| Dimensions | 82 mm(L) X 72mm (W) X 52mm(H) |
| Notification | Beep |
| Operating Temperature | -10 ℃ to + 50 ℃ |
| Storage Temperature | -20 ℃ to + 60 ℃ |
| Humidity | 5% - 95% ( non-condensing ) |
| Certification | FCC Part15 Class B, CE EMC Class B |
RD4500R fixed mount barcode scanner is designed primarily for such applications as electronic tickets/coupons, mobile marketing, mobile payment, kiosk, turnstile, and office automation, the series fixed mount barcode scanner is able to read barcodes on paper and mobile phones.
Compatible OS: Android, Windows, Linux
Projects: Turnstile, Kiosk, ATM, Payment Terminal, Ticketing Validator, etc.

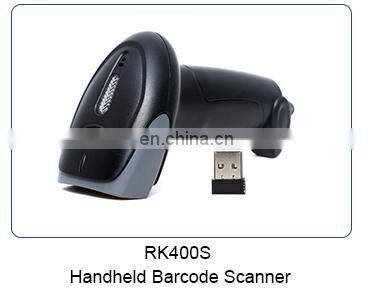

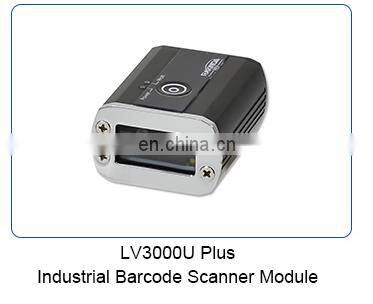

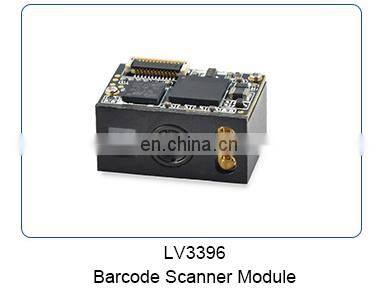

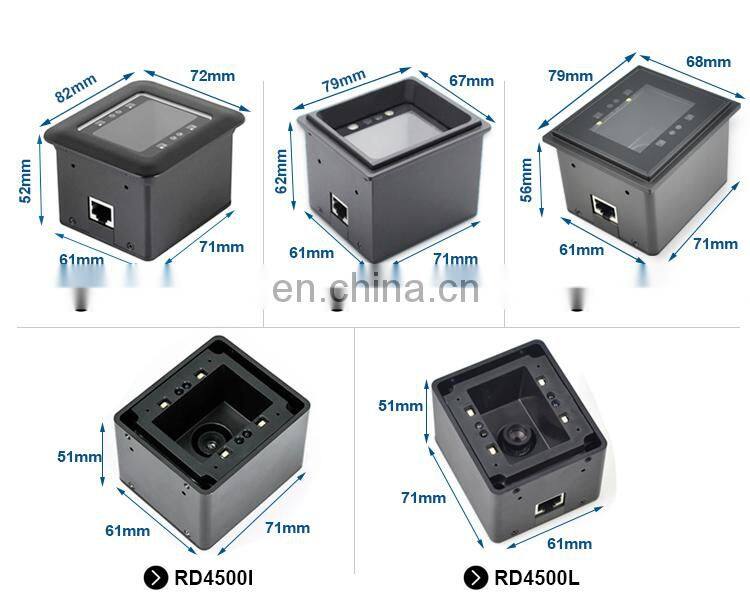

5 Series of Fixed Mount 1d 2d Barcode Scanner:
We have scanner models in different size which could be installed flexiblely in various applications, if there is any product you are interested in for your projects, please click it for more details and Contact Us.
Q1: Can I get some samples? Are they free?
A1: We support 1pc sample order. Samples should be paid.
Q2: Can I get extra cables for the scanners?
A2: Yes you can. We will provide according to your request.
Q3: How can I buy?
A3: We are trade assurance supplier at Alibaba. You can start online order directly. Or pls contact us first according to the contact info. We will send you proper link directly.
Q4: What is your payment method?
A4: We accept online credit card, TT, Paypal, Western Union.
Q5: Can I visit your factory:
A5: Yes, you are warmly welcome.
Q6: How long is your warranty time:
A6: 1 Year.
Q7: Where can we download the user manual of the scanners?
A7: We will send by email after you get samples.
Q8: What's the lead time?
A8: For sample, it is typically within 3 days. For bulk order, it depends on quantity and model you order.
Q9: Can you provide OEM service?
A9: Yes. We need further discuss about details.
Q10: How do you ship the scanners usually?
A10: Since it is light and compact, we usually use DHL, UPS, Fedex, TNT and post air mail.
|
