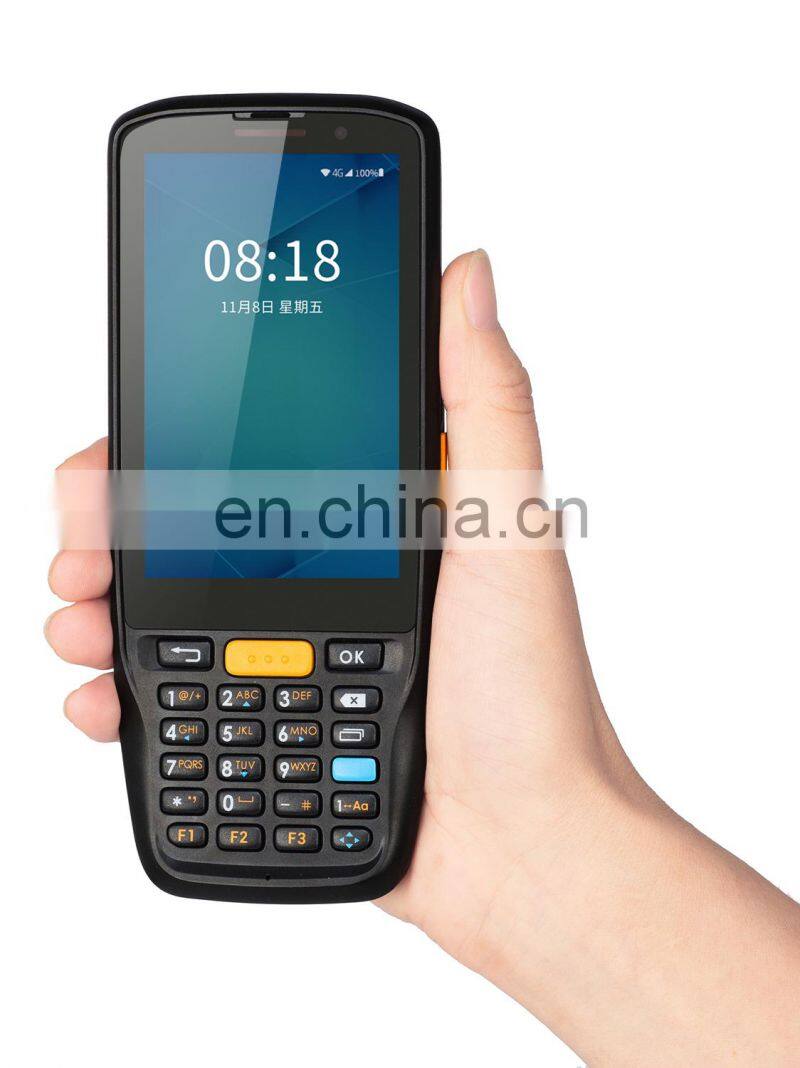

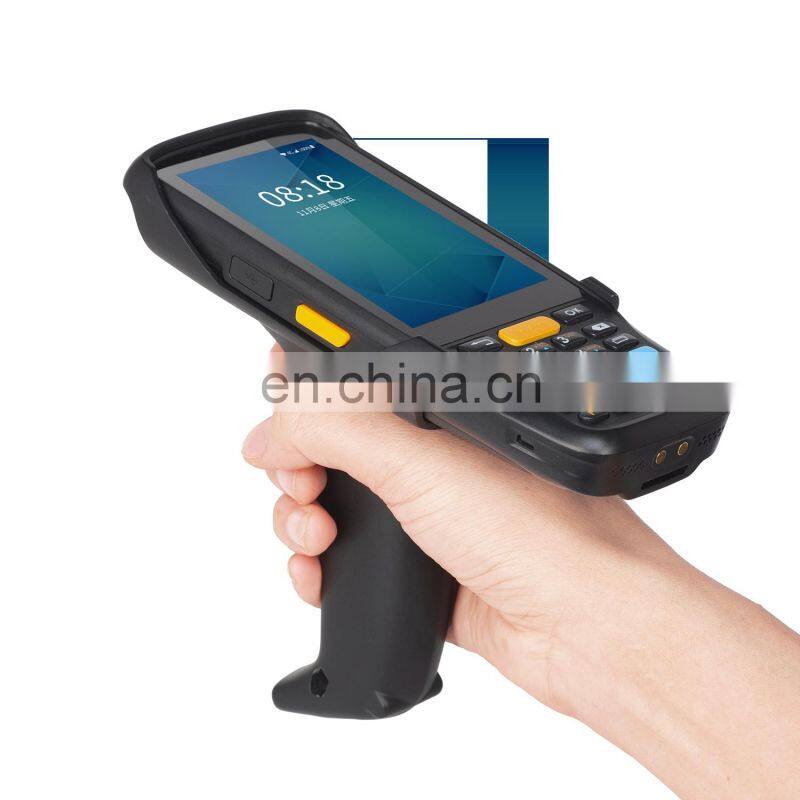

Rugged Android 9.0 2D Barcode Scanner Keypad Mobile Data Collector With Pistol Grip Battery Cradle Option

Rugged Android 9.0 2D Barcode Scanner Keypad Mobile Data Collector With Pistol Grip Battery Cradle Option photo-1

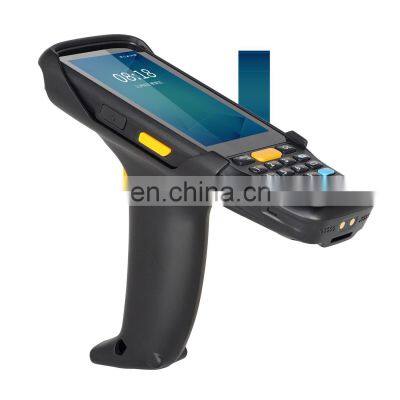

Rugged Android 9.0 2D Barcode Scanner Keypad Mobile Data Collector With Pistol Grip Battery Cradle Option photo-2

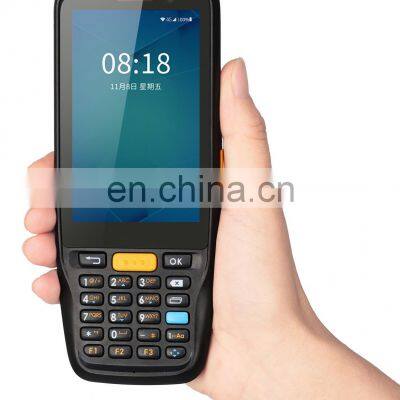

Rugged Android 9.0 2D Barcode Scanner Keypad Mobile Data Collector With Pistol Grip Battery Cradle Option photo-3

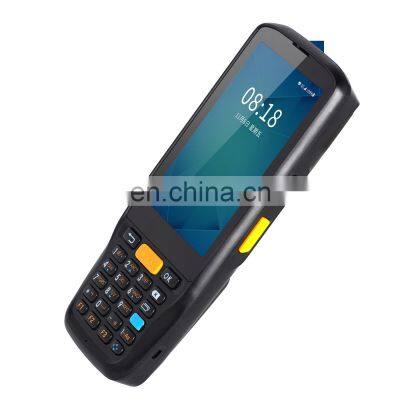

Rugged Android 9.0 2D Barcode Scanner Keypad Mobile Data Collector With Pistol Grip Battery Cradle Option photo-4
Negotiable MOQ: 1 set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Business Type:
Agent
Year Established:
1993
Annual Export Value:
US$1.5 Million - US$2.5 Million
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.

Rugged Android 9.0 2D Barcode Scanner Keypad Mobile Data Collector with Pistol Grip Battery Cradle Option

Rugged Android 9.0 2D Barcode Scanner Keypad Mobile Data Collector with Pistol Grip Battery Cradle OptionRugged Android 9.0 2D Barcode Scanner Keypad Mobile Data Collector with Pistol Grip Battery Cradle OptionRugged Android 9.0 2D Barcode Scanner Keypad Mobile Data Collector with Pistol Grip Battery Cradle Option



System Configuration

CPU Octa-core 2.0 GHz
Operating System Android 9.0
Memory (ROM+RAM) 16GB +2GB, optional 32GB + 3GB /64GB + 4GB/128GB + 6GB
Expansion Slot Micro SD card, up to 256 GB
Display 4-inch, 800*480 IPS
Touch Panel Industrial-grade capacitive panel (supporting operation with gloves)
Camera 8MP(optional 13MP) autofocus camera in the back side, autofocus lens,
LED flash, supporting PDAF, Highlight flash
Flash light 800mA
Keyboard light White
Exit window Mitsubishi composite plate
Keypad 26 durable industrial keypads with interior transmission light
Battery 3.8 V 4400mAh rechargeable lithium polymer battery, power backup
support
Audio Built-in microphone
Notification Scanning prompt LED/Charging prompt LED/ Vibrator alerts
Vibration Motor Built-in programmable vibration motor

Structural Parameters

Dimensions (LxWxD) 168mmx71mmx26mm
Weight 270g (battery included)
1D Laser Scanner
Optical Resolution 4 mil
Scan Depth of Field 3.81 cm - 60.98 cm
Scan Angle 47°±3°(Standard)
Scan Speed 102±12 scans/sec. (Bidirectional)
1D / 2D Area Imager
Optical Resolution 3 mil
Scan Angle Omnidirectional
Scan Speed 300 scans/sec.
NFC(Optional)
Frequency 13.56 MHz
Reading Distance Within 30 mm
Protocol ISO14443A/14443B/15693
Input/output Ports
USB Port 1, 2pin Charger Port
Charger Port Type-C, headphone
OTG Support
Accessories
Standard Battery, Power adapter, Wrist strap, Hand Strap, Bottom charging cable, USB
cable
Optional 4-slot battery cradle, Pistol grip, Single cradle
