Standard I.500.22.00.A Rotary Turntbale Bearing Ring Factory Supply

Luoyang MC Bearing Technology Co., Ltd.
Standard I.500.22.00.A Rotary Turntbale Bearing Ring Factory Supply thumbnail-1
Standard I.500.22.00.A Rotary Turntbale Bearing Ring Factory Supply thumbnail-2
Standard I.500.22.00.A Rotary Turntbale Bearing Ring Factory Supply photo-1
Standard I.500.22.00.A Rotary Turntbale Bearing Ring Factory Supply photo-2
US$ 300 - 800 MOQ: 1 Piece
Key Specifications
Get Latest Price
Brand Name:
LYMC
Place of Origin:
China
Model Number:
I.500.22.00.A
Contact Supplier Request Quote Chat Now
Payment & Shipping
Payment Methods:
Port of Shipment:
shanghai, qingdao, ningbo.
Delivery Detail:
15 days

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Brand Name LYMC
Place of Origin China
Model Number I.500.22.00.A
Feature Four Point Contact
Seals Type open
Outside Diameter 330, 499
Bore Size 61, 82
Gear Options Internal Gear Only

Standard I.500.22.00.A rotary turntbale bearing ring factory supply

Material:42CrMo/50Mn
Structure:Internal gear four point contact slewing ball bearing
Hardness:55~62HRC

Inner and outer ring modulation hardness:229-269HB

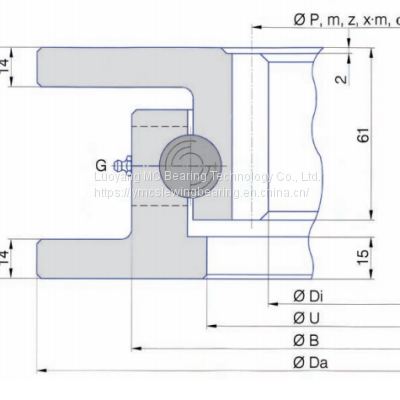

Dimensions:

Da:499mm

B:431mm

U:379mm

Di:330mm

Gear teeth:

P:340mm

m:5

z:68

Tooth force:

Fz nor:11.30KN

Fz max:22.60KN

Mass:

Weight:38kgs

if you have needs of this type slewing bearing, please contact us freely.
