Smart Digital Lock Storage Cabinets Electronic Drawer File Cabinet Electromagnetic Lock Wardrobe Door Lock
Negotiable
MOQ: 1 set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Business Type:
Distributor/Wholesaler
Year Established:
2001
Annual Export Value:
US$10 Million - US$50 Million
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
High-end RFID Digital Sauna Spa Room Lock Electronic Cabinet Safe Lock Smart LockNegotiableMOQ: 1 -
NEW Induction Electronic Lock Sauna Rfid Cabinet Sensor Lock for Clubhouse Fitness Club SpasNegotiableMOQ: 1
-
High Sale Zinc Alloy Intelligent Keyless Sauna Intelligent RFID Card Reader Sauna Room Electronic Locker LockNegotiableMOQ: 1
-
Digital Rfid Locker Lock With Wristband Key Card for Golf Spa Gym Swimming Pool Sauna Bathroom Panel Cabinet LockNegotiableMOQ: 1
-
Cardoria Electronic Hidden RFID Card Cabinet Lock for LockersNegotiableMOQ: 1
Smart password lock storage cabinets electronic lock drawer file cabinet electromagnetic lock the wardrobe door lock
Product Description
The pw206 Electric Cabinet Lock is designed to electronically secure cabinets and drawers. The addition of a keypad or remote control of your choice provides true access control and convenience of use.
Specifications:
| Model | intelligent cabinet lock pw206 |

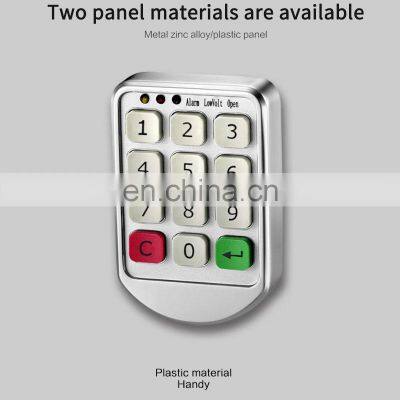

| Material | Lock Panel: Zinc alloy; Lock body: ABS |
| Password digit | ≥4, ≤ 10 |
| Material | plastic |
| Power source | DC6V alkaline battery( AA1.5V*4pcs) |
| Static current | <10uA |
| Dynamic current | <220mA |
| Alarm power | < 4.7V; alarm by red light |

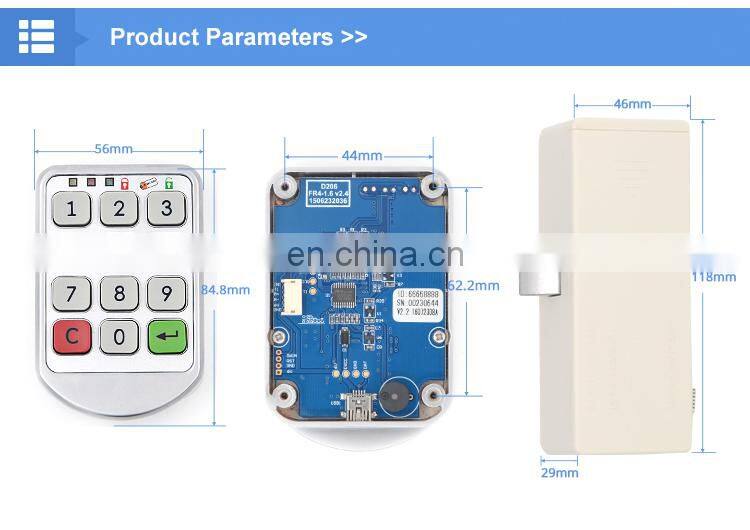

| Size | 58*34.8mm |
| Memory capacity | 4160 Bit |
| Work temperature | -15°C ~ 65°C |
| Work humidity | 5%~95%RH(No condensation) |
| Anti-static electricity | Air discharge 15KV,Contact discharge 8KV |
| Battery life | >10,000 times |
| Suitable for door thickness | All |
| Double mode | Public mode or private mode; It can be changed as your need. |
| Jump Code | Another way for emergency opening |

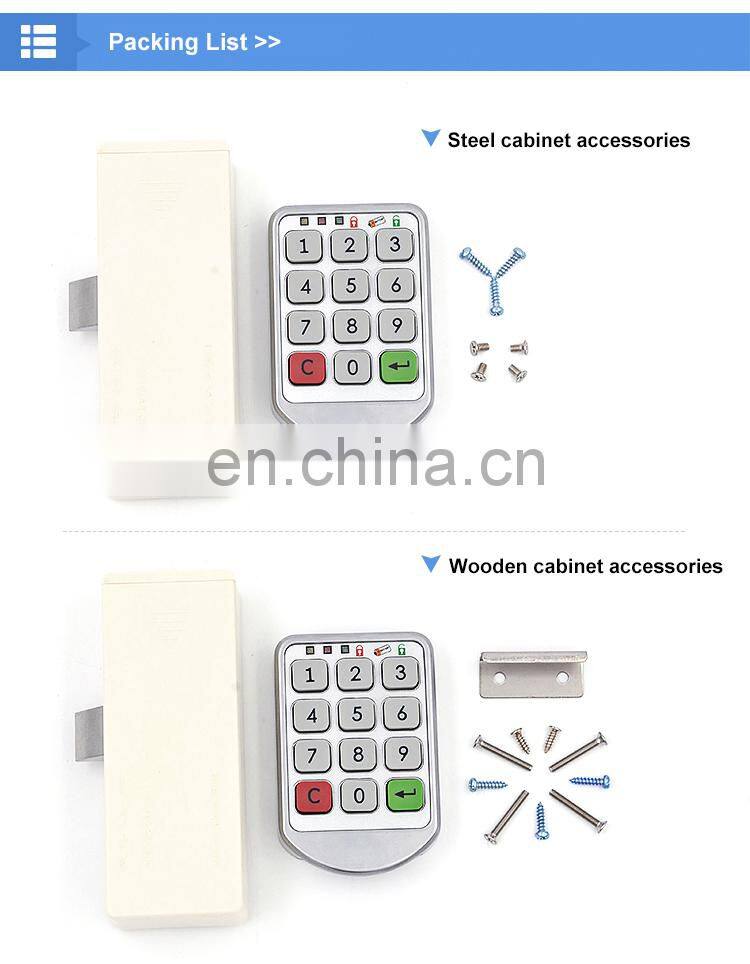

| Package Includes |
1 set x intelligent cabinet lock
(includes 1 keypad, 1 lock, 5 screws and 1 lock catch.)
|
| Operating Instruction |
Turn on lock
There are 2 groups password for you to use the cabinet lock at the first time.User password "1111"and Management password "0000 0000", Both the user password and the management password are at latest 4-10 digits.
1. Input the right password you set (If you haven't changed, Please use the default
password), then press "#"button to turn on lock.
2. If the password is correct, the green LED on;Or, the Yellow LED flick.
3. Please pull the door during the green led on.
Remark:"#"button for confirmation;"*"button for elimination.
Turn off lock
Private type: Push the cabinet door to the close situation, then can turn off lock.
Public type: When cabinet lock at the state of opening (Latch/volt at the state of
retract) , push cabinet door to the state of closing, Input the password which you set,
and press "#" button to confirm, Then can turn off lock(Input the password you set ,it can
turn on lock again).
How to change your password
1. Press twice the green button until the yellow light flash, then enter your old password
2. Press the green button to confirm
3. Enter your new password
4. Press the green button to confirm;
5. Green light flash one time,after beep twice, showing the new user password changed
successfully.
Management password modification:
Press and hold the green button for about 5 seconds, the yellow light flashes, press the
green button after entering the old password (enter the correct green light), then enter a
new management password and press the green button (the green light is changed)
Mode switching:
Enter C#4#admin password# to switch to public type
Enter C#5#admin password# to switch to private type
Emergency Treatment:
1. when the user forgot password, use the management password or software size,
after the lock the user password for the factory password recovery.
2. if the lock when the battery is low,can be unlocked with an external power supply
(When the battery is low, the red light will flash when the password is unlocked. Please
replace the battery as soon as possible.)
3. Public type change the user code
The public type don't need to change user code, the code which used to turn off the lock is the code can open it. The code can set as customer pleased.
|
