Automatic 1.2cubic Meter Charging Capacity Portable Concrete Mixer Truck

Automatic 1.2cubic Meter Charging Capacity Portable Concrete Mixer Truck thumbnail-1
Automatic 1.2cubic Meter Charging Capacity Portable Concrete Mixer Truck thumbnail-2
Automatic 1.2cubic Meter Charging Capacity Portable Concrete Mixer Truck thumbnail-3
Automatic 1.2cubic Meter Charging Capacity Portable Concrete Mixer Truck thumbnail-4
Automatic 1.2cubic Meter Charging Capacity Portable Concrete Mixer Truck thumbnail-5
Automatic 1.2cubic Meter Charging Capacity Portable Concrete Mixer Truck photo-1
Automatic 1.2cubic Meter Charging Capacity Portable Concrete Mixer Truck photo-2
Automatic 1.2cubic Meter Charging Capacity Portable Concrete Mixer Truck photo-3
Automatic 1.2cubic Meter Charging Capacity Portable Concrete Mixer Truck photo-4
Automatic 1.2cubic Meter Charging Capacity Portable Concrete Mixer Truck photo-5
Negotiable MOQ: 1 set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Business Type:
Government ministry/Bureau/Commission
Year Established:
1998
Annual Export Value:
Below US$1 Million
Contact Supplier Request Quote Chat Now
Shandong Hengwang Group Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Product Description

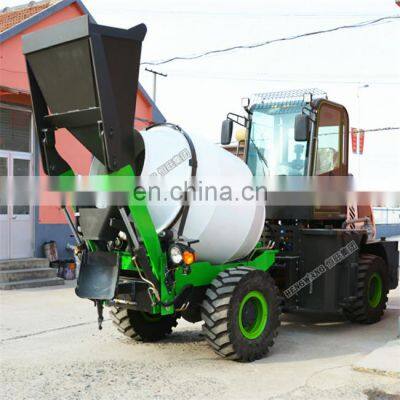

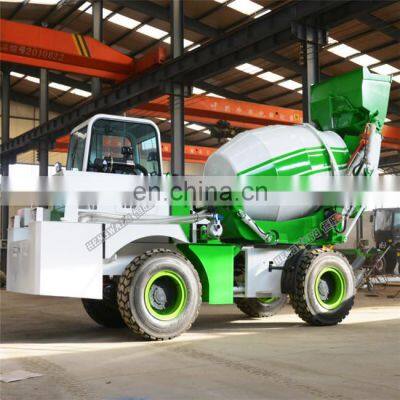

Automatic Discharge Way 1.2cubic meter Charging Capacity portable concrete mixer truck
Combine concrete truck mixer with concrete mixer, self loading concrete mixer can automatic feeding, metering, and mixing to discharge, and more, it can realize the transportation and site construction operations, which greatly improves the work efficiency, reduce production cost and time.
Specification
Actual stirring capacity
1.2m3
Rotary drum capacity
1.4m3
Degree of bias
16°
Rotational speed
0-14r/min
Direction of rotation
Feed:clockwise output:counter clockwise
Mixing drum blade
Two sets of spiral blades and four sets of auxiliary blade
Slump of concrete
70-260mm
Hydraulic power transmission system
Pump model
CBGV-4025
hydraulic motor model
BMSS-250
reducer ratio
01:10
water supply
tank capacity/water supply form
540/automatic timing water supply mechanism with automatic timing
The main performance parameters of the chassis and the engine
Engine type/displacement
CF4B68G-Z-13B2/CF4C100T-Z-13B2
Model
Straight injection type four stroke water cooled supercharged diesel engine
Rated power
55KW/2400 78KW/2400
Max torque
255/1500-1800 380/1500-1800N.m/r/min
Max running speed
24km/h
Min steering radius
5000mm
Climbing capacity
26°
Tire
23.5/70-16
Driving way
4X4
Weight
4580kg
Maximum load capacity
2800kg
whole machinery weight
7380kg
overall size (L*W*H)
6100*1850*3000mm

Advantage:Automatic feeding self loading 1.2 CBM diesel engine concrete mixer truck

.1. Italy leading design, automatic feeding mixing system
.2. Simple and convenient operation1Concrete Mixer 3m3 MIni Concrete Mixer Truck for sale
.3. High efficiency output, save time and labor, save cost
.4. The perfect combination of mixing truck and loading car.

Detailed Images
Related Products
Packing&Shipping
After Sales Service
AFTER-SALES
1. WE MACHINE WARRANTY IS ONE YEAR;
2. FREE SPARE PARTS ARE AVAILABLE;
3. OPERATING VIDEO ARE AVAILABLE;
4. ENGINEERS ARE AVAILABLE FOR FIELD TESTING AND OPERATING;
Company Introduction
FAQ

Q1. What is your terms of payment?

Ans.: T/T 30% as deposit, and 70% before delivery. We'll show you the photos of the products and

packages before you pay the balance.



Q2. What is your terms of delivery?

Ans.: EXW, FOB, CFR, CIF.



Q3. How about your delivery time?

Ans.: Generally, it will take 7 -10 working days after receiving your advance payment.

The specific delivery time depends on the items and the quantity of your order.



Q4. What is the warranty of our machine?

Ans.:Our main machine enjoys a 1 year warranty, during this time all accessories

broken can be changed for a new one.And we provide videos for machine install and operation.



Q5. What is your terms of packing?

Ans.: Generally, we use standard exported wooden case for LCL goods, and fixed well for FCL goods.



Q6. Do you test all your goods before delivery?

Ans.: Yes, we have 100% test before delivery.And we will attach our inspect report for every machine.



Q7.Do you Preferred provide wear parts for transacted clients?

Ans.: Yes, we have recor d s for your clients, and will  prefer  provid ing  accessories to clients.



Q8: How do you make our business long-term and good relationship?

Ans.: 1. We keep good quality and competitive price to ensure our customers benefits;                                            2. We respect every customer as our friend and we sincerely do business and make friends with them,

no matter where they come from.



Q9.Do you have any certificates for your machine?

Ans.: All of our products coming with the certificates of CE, ISO9001.
