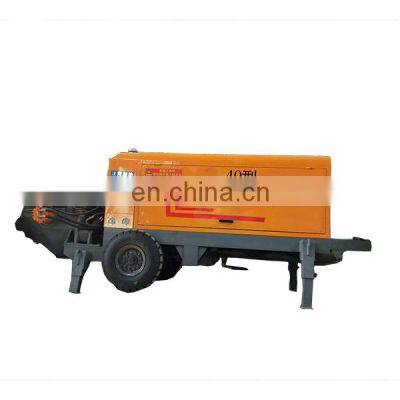

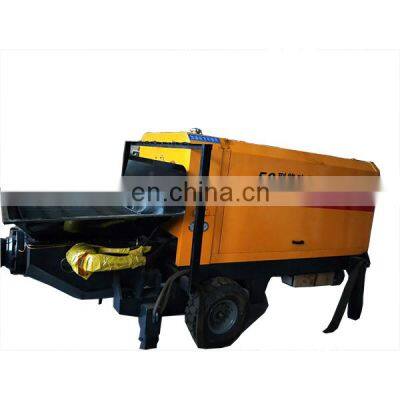

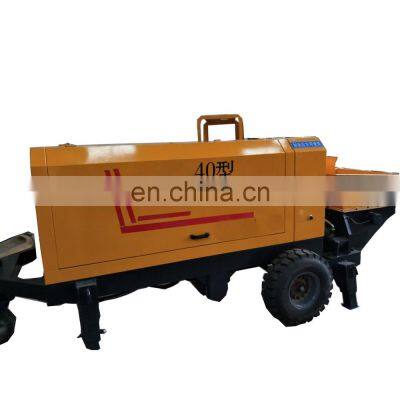

Help CenterElectric Mini Concrete Pump
Related Products
-
Concrete/cement Mortar Spraying Machine for SaleNegotiableMOQ: 1 -
Small Concrete Line Pump for Sale in PhilippinesNegotiableMOQ: 1
-
Secondary Constructional Column Pump Small Portable Concrete PumpNegotiableMOQ: 1
-
Automatic Putty/mortar Plastering Spraying MachineNegotiableMOQ: 1
-
Mobile Mini Concrete Mixer With Pumps MachineNegotiableMOQ: 1
CONCRETE PUMP
High- floor cement mortar pump is a small fluid mixture conveying equipment, widely not only used for wet-mixed mortar pumping and wall plastering in high- floor buildings
construction, but also for support lining construction in ground heating project, tunnels, mines and other underground engineering. HW could pump less than 25mm fine aggregate concrete with lower investment cost and operating cost, it is first choice ideal equipment for engineering construction. It adopts S tube as distributing valve to meet large aggregate concrete pumping.
The hydraulic- driven mixing device can play the good role of secondary mixing conducive to pumping.
The glasses plate and cutting ring adopt hard alloy material inlay manufacturing with wear resistant and long service life. The hydraulic system adopts independent three circuit electro-hydraulic control with high reliability. The electrical system control is fully functional with returning pressure control function eliminating pipe blocking failure.
Its elegant appearance and light weight is easy to transport;
Working with batching mixing equipment can achieve continuous pumping construction to improve construction schedule.
SPECIFICATIONS FOR CONCRETE PUMP |
||||||
Model |
HW15-05-22(piston) |
HW20-08-33(piston) |
HW-04(squeeze) |
|||
Motor power |
22KW |
30kw |
4kw |
|||
Maximum theoretical working pressure |
5.3Mpa |
8Mpa |
5Mpa |
|||
Theoretical displacement |
15m³/h |
20m³/h |
6m³/h |
|||
Maximum horizontal delivery distance |
200m |
350m |
180m |
|||
Maximum vertical delivery distance |
80m |
140m |
180m |
|||
Maximum grain size |
≤20mm |
≤25mm |
≤6mm |
|||
Cylinder diameter and stroke |
Φ140×800mm |
Φ140×800 |
Squeeze pipe Φ50×1400
|
|||
Delivery hose diameter |
Φ80, Φ50mm |
Φ100,Φ80 |
Φ38 |
|||
Net weight |
1580kg |
2000kg |
500kg |
|||
Dimension (L×W×H) |
3400×1320×1480mm |
4000×1500×1550mm |
800×1100×1300mm |
|||
