Hydraulic Farm Loader Wheel Loader Mini Loader With CE Certificate

Hydraulic Farm Loader Wheel Loader Mini Loader With CE Certificate photo-1

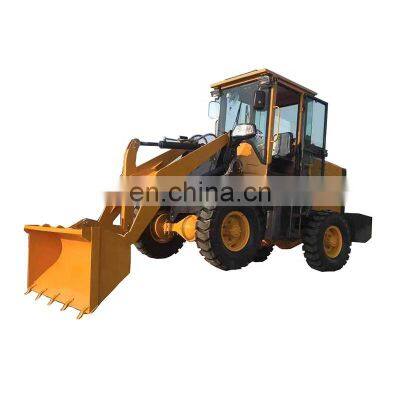

Hydraulic Farm Loader Wheel Loader Mini Loader With CE Certificate photo-2

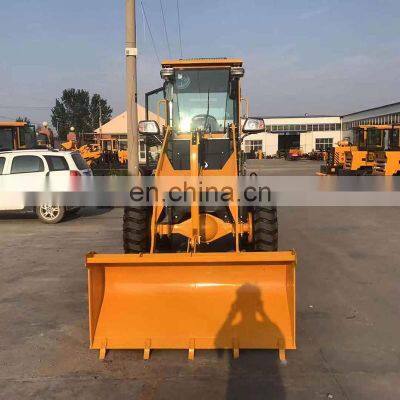

Hydraulic Farm Loader Wheel Loader Mini Loader With CE Certificate photo-3

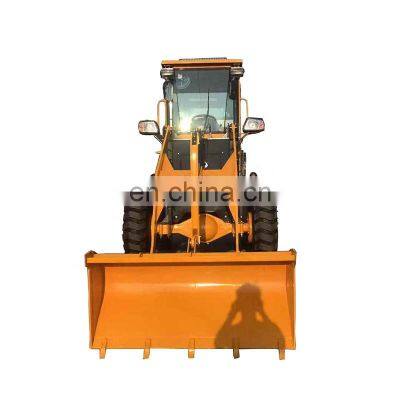

Hydraulic Farm Loader Wheel Loader Mini Loader With CE Certificate photo-4

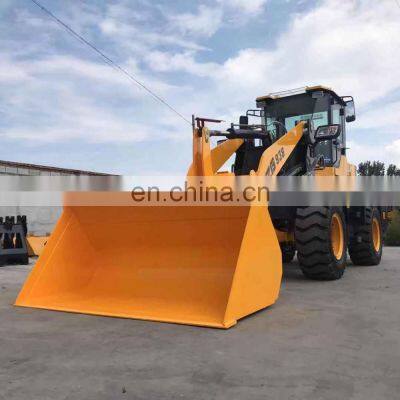

Hydraulic Farm Loader Wheel Loader Mini Loader With CE Certificate photo-5
Negotiable MOQ: 1 set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Business Type:
Government ministry/Bureau/Commission
Year Established:
1998
Annual Export Value:
Below US$1 Million
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Product Description


Hot Sale Chinese HengWang Wheel loader Agricultural Loader With Cheap Price


The loader machine adopts the complete machine is rationally distributed and compact; it is comfortable and convenient to handle,the turning radius is small and the cost performance is high. It is widely used in municipal administration, the construction of projects such as the building, the oil field, water conservancy,the forest farm, the military project, and so on.
It also can be used in carrying and leveling and can carry on the flexible and swift homework to scarp heap and waste residue of the large and medium-sized enterprise.

The dyadic center equidistance hinge joint fleet of carriage, makes turn the radius is small, the expedient function is good.The drive’s cab, wide vision, air-conditioning, operation environment sealing off subtraction vibrating, allocating are comfortable, safe. Various machines and tools such as may select and use for –in-one bucket, breaking a hammer to pieces, the function are especially all in readiness.
Technical Parameters
SPECIFICATIONS FOR DIGGER LOADER
Model
HWLD-58
Rated capacity
0.3-0.6m³
Operating weight
1500kg
Transportation
5460*1750*2720mm
Dump height
3300mm
Dump distance
1400mm
Wheel base
2000mm
Tread
1440mm
Max. breakout force
48.87 KN
Total time
12s
Operating weight
6000kg
Engine Model
WC38
Pattern
Inline, water-cooled, 4-stroke, direct injection
Rated power/Speed
38KW/2400 rpm
Pattern
3-element single stage
Transmission type
Full-power shift, countershaft type
Number of gear
2 forward, 2 reverse 2
Max. travel speed
24km/h
Axle
Hualu
Main reducer pattern
Arc taper gear, model ration of first grade
Pattern of wheelside moderation
Planet gear moderation of single
Tire size
16/70-24
Steering system

Pattern
Articulated and hydraulic steering
Min. turning radius(outside of bucket)
6000mm
Max. turning angle
35°±1
Implement pump
CB2063
System working pressure
20MPa
Brake type
Air assisted oil disc on four wheel
Parking brake type
Soft axle control, outside bunch drum type
Details

Rated Weight 2000KG Wheel Loader Small Mini Front End Loader For Sale

Match with high quality engine, low, low blow off of noise, driving force forceful, twist from when reserve is big. The driving force loader special use fixing an axis changes the gear speed change box, structure is compact, drive is efficient, structure stiffness is big, life-span is long.
Made in China HW wheel loader for sale with accessory parts
Made in China HW wheel loader for Application
About Us
Wheel Loader For Company Strength

Shandong Hengwang Group Co., Ltd focuses on technical innovation and sustainable development all the time. It ranks as one of domestic leading and nearly international advanced manufacturers in research & development capability, manufacturing capabilityand product quality.
