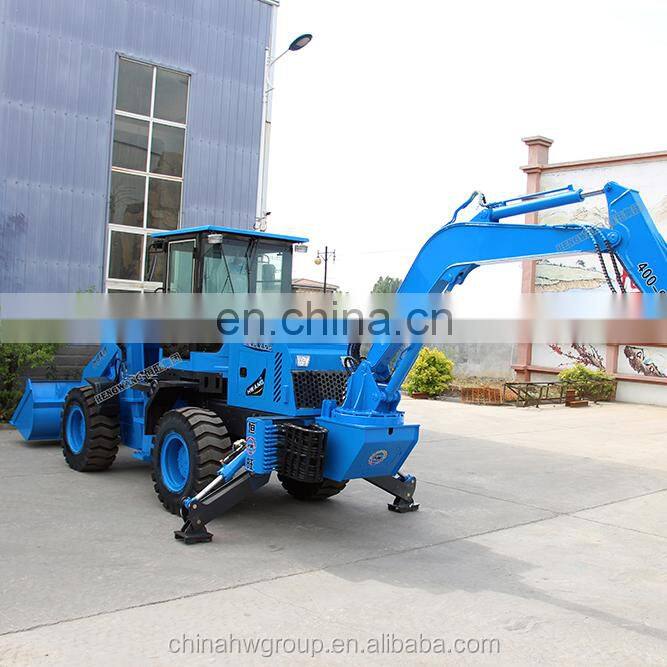

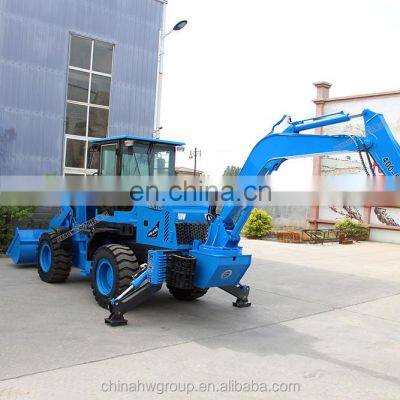

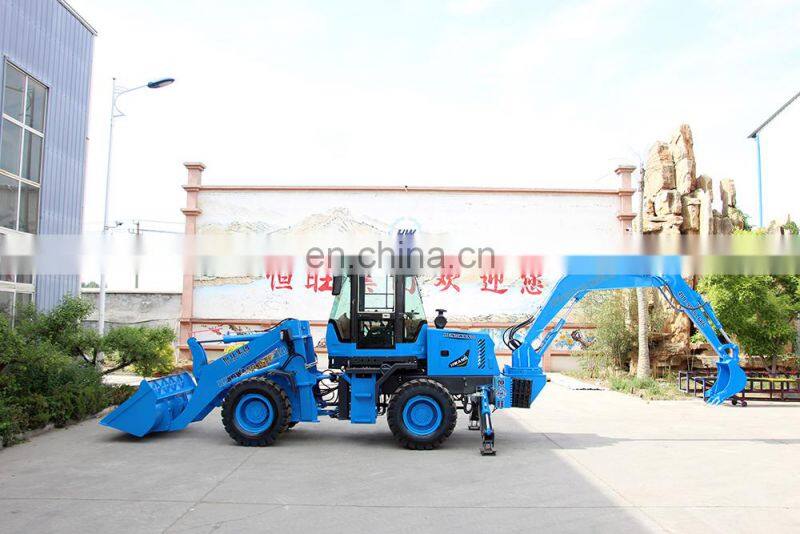

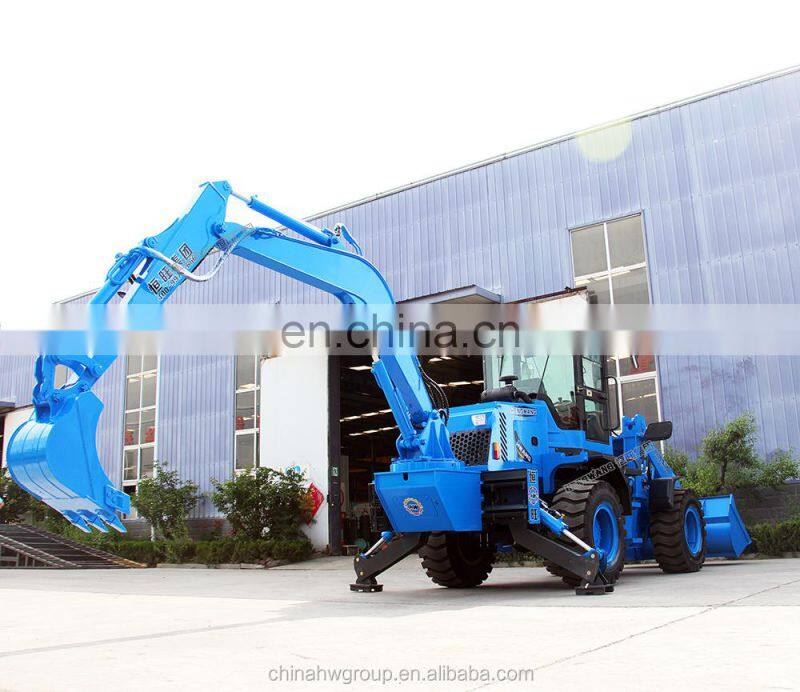

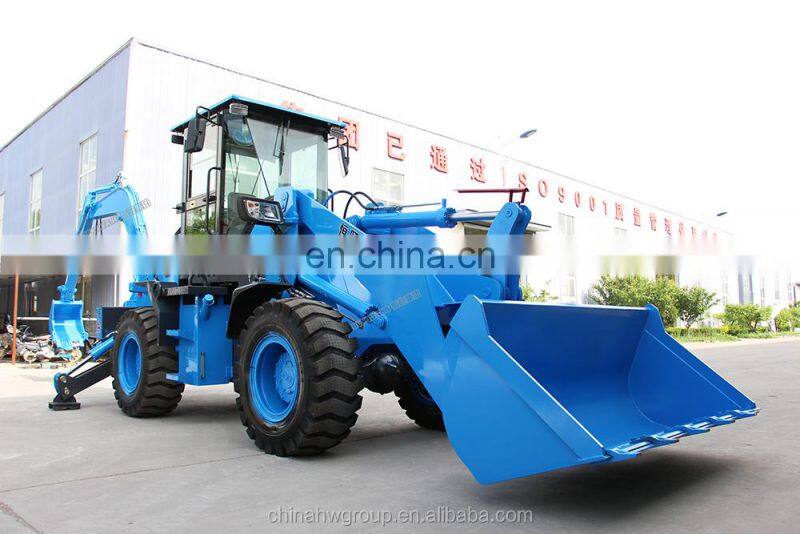

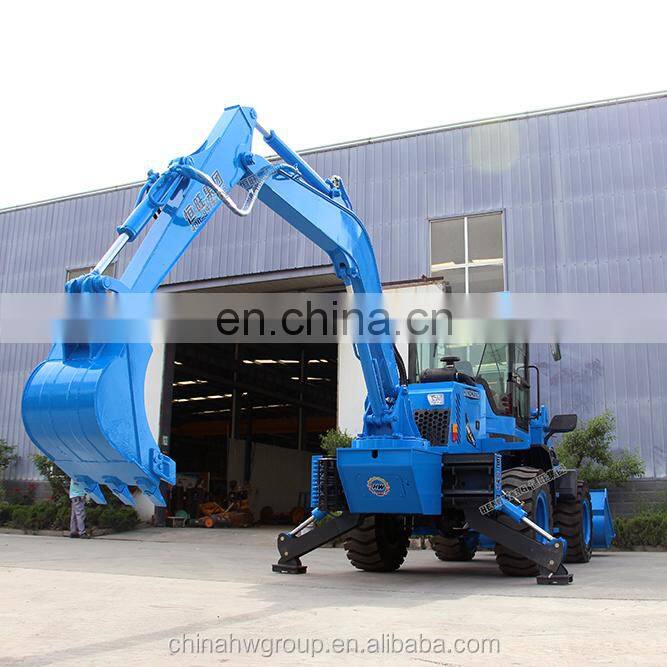

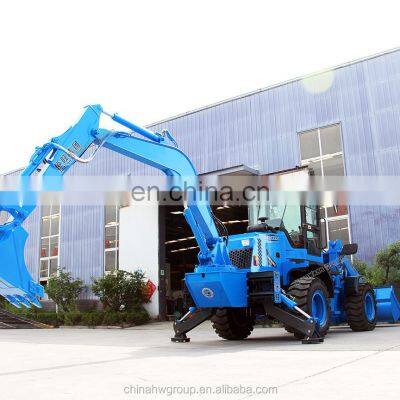

Multi-function backhoe wheel loader mini wheel loader wheel loader for sale
Negotiable
1 (Min.Order)
- 1000 per Month
- T/T Credit Card
You May Like
-
Multi-function loader 10-20 Heavy Mining Machinery backhoe wheel loader
-
China Best Cheap Electric Mini Skid Steer Loader Wheel With Attachment Price For Sale
-
5 Ton Pay Loader 4.5 Cubic Meters Bucket HWZG ZL50GN Wheel Loader with Factory Price
-
Construction Machine Wheel loader SEM655D 5ton prices
-
Mini loader 2ton HW 10-20 used wheel loader backhoe with CE
-
Mini loader 1 ton HW 10-20J used wheel loader backhoe with CE EPA approved
Product Description
Product Description
We are manufacturer welcome to visit our factory--HengWang!
Cheap price and high quality！
Ms Andy Whatsapp/Mobile/Wechat: +0086 17686192616
Wheel loader functional properties：
Ms Andy Whatsapp/Mobile/Wechat: +0086 17686192616

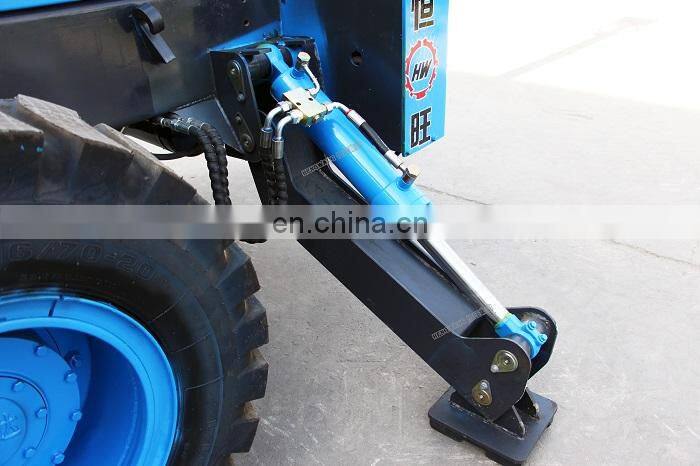

Multi-function shovel digging machine, also known as the front dig shovel two busy one machine, two busy, many areas have different names for this machine according to different habits. The shovel digging machine produced by our company is suitable for small space, can drive in both directions, fast and convenient for back control, with side shifting, can move left and right, greatly improve work efficiency, hydraulic lock with legs, improve work safety , silencer, air filter built-in design, reducing working noise. The multi-function shovel digging machine is compact, flexible and convenient, energy-saving and efficient, coherent compound action, spacious cab independent console, simple and easy to operate. The excavator is designed as a slideway with the advantages of folding side digging, free sliding, preparation There are auxiliary oil passages, and the upgradeable utility aids can achieve the function of real multi-purpose. In addition to the shovel digging function of different specifications and different operations, the multi-function shovel digging machine can also complete the work of bulldozing, lifting, loading and unloading other materials if the different working devices are replaced, greatly improving the efficiency of the machine. . It can also carry out excavation, shovel loading, road surface crushing, leveling the site, excavating ditches, laying pipes and many other industries. After each work of the multi-purpose shovel digging machine, it is necessary to carry out the necessary repair inspection of the machine. Because of the influence of the construction environment, the functions that are not used are closed and folded as much as possible, so that the operation in a narrow space can be realized to the utmost extent.
Outer dimension | ||||
1 | overall dimensions （mm） | 5800*1850*2750 | ||
2 | wheel base（mm） | 2315 | ||
3 | wheel track （mm） | 1500 | ||
4 | minimum groud clearance（mm） | 220 | ||
Specifications | ||||
1 | system pressure（Mpa） | 16 | ||
2 | machine weight （Kg） | 4800 | ||
3 | maximum speed（Km/h） | 26 | ||
4 | max Climb capablity（°） | 25 | ||
5 | minimum turning radius（mm） | 4000 | ||
Digging parameters | ||||
1 | maximum digging depth（mm） | 2700 | ||
2 | excavated unloading height（mm） | 2200 | ||
3 | maximum digging radius（mm） | 4600 | ||
4 | scoop width（mm） | 600 | ||
5 | bucket capacity（ cubic meter） | 0.2 | ||
6 | maximum excavation height （mm） | 4200 | ||
7 | maximum digging force （KN） | 28 | ||
8 | excavator turning angle（°） | 180 | ||
Loading paramters | ||||
1 | maximum dumping height（mm） | 3300 | ||
2 | maximum dump reach（mm） | 850 | ||
3 | loader bucket width（mm） | 1900 | ||
4 | loader capacity（cubic meter） | 0.7 | ||
5 | loader max.lift height（mm） | 4200 | ||
6 | maximum digging force（KN） | 36 | ||
7 | forward shovel action time（S） | 12 | ||
Engine | ||||
1 | model | YN27GBZ | ||
2 | type | turbocharging，four-stroke | ||
3 | power rating（KW） | 55 | ||
4 | rated speed（r/min） | 2400 | ||
5 | number of cylinders - inside | 4-90 | ||
Steering system | ||||
1 | type | articulated fully hydraulic steering | ||
2 | steering angle（°） | 33 | ||
Drive system | ||||
1 | speed changing box | power shift | ||
2 | gear number | front 2 back 2 | ||
3 | torque converter | ZL29A | ||
Bridge | ||||
1 | type | wheel eage | ||
Tire | ||||
1 | specification | 23.5-16 | ||
2 | front tyre pressure（Kpa） | 250 | ||
3 | rear tyre pressure（Kpa） | 250 | ||
4 | service brake | gas cap oil clamp disc brake | ||
5 | parking braking | hand movement | ||
Oil mass | ||||
1 | fuel tank（L） | 40 | ||
2 | hydraulic oil tank（L） | 40 | ||
Other | ||||
1 | driving type | four-wheel drive | ||
2 | vanriable-speed type | hydraulic variable speed | ||
3 | braking distance（mm） | 4500 | ||

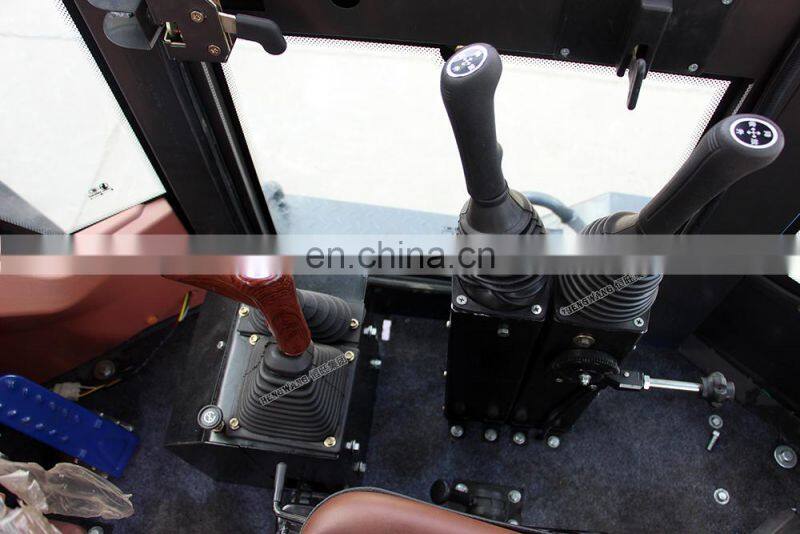

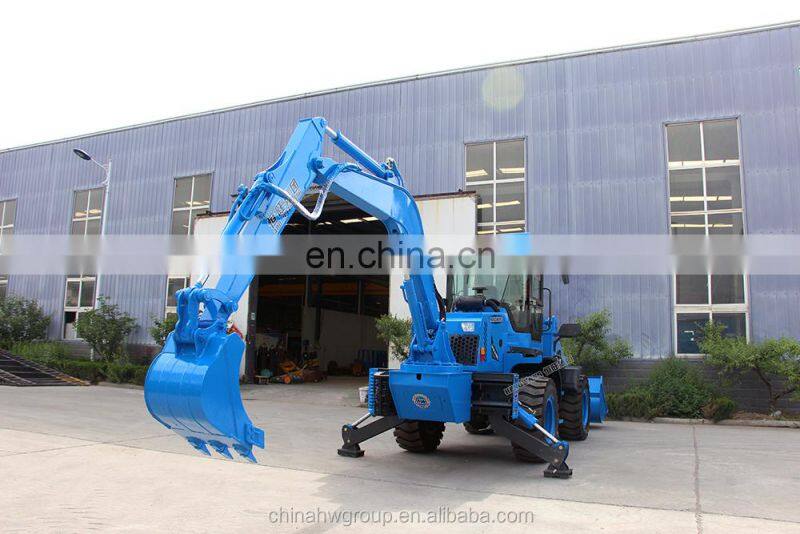

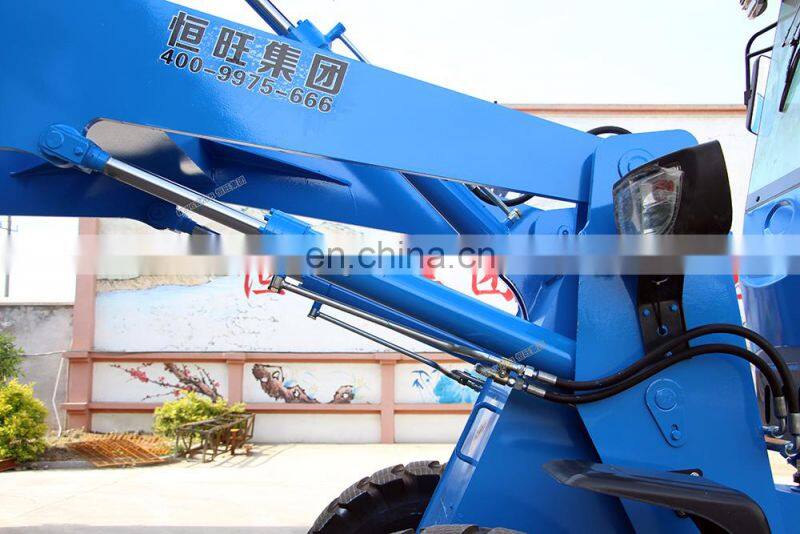

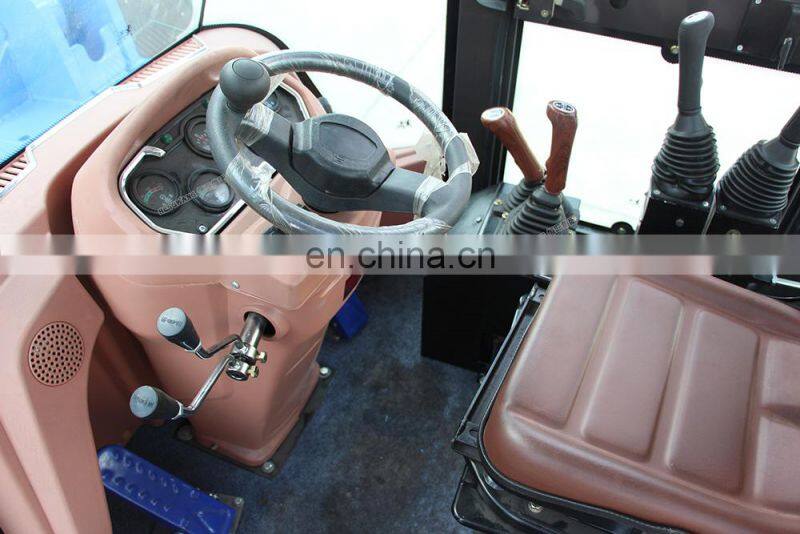

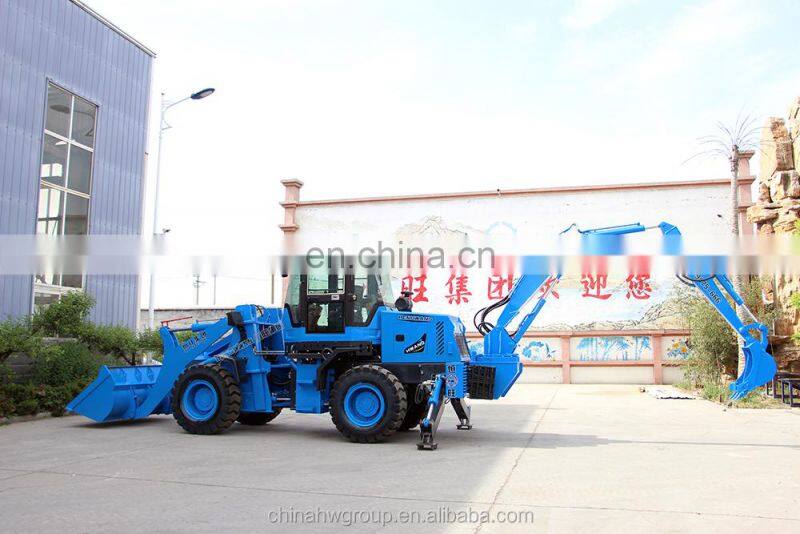

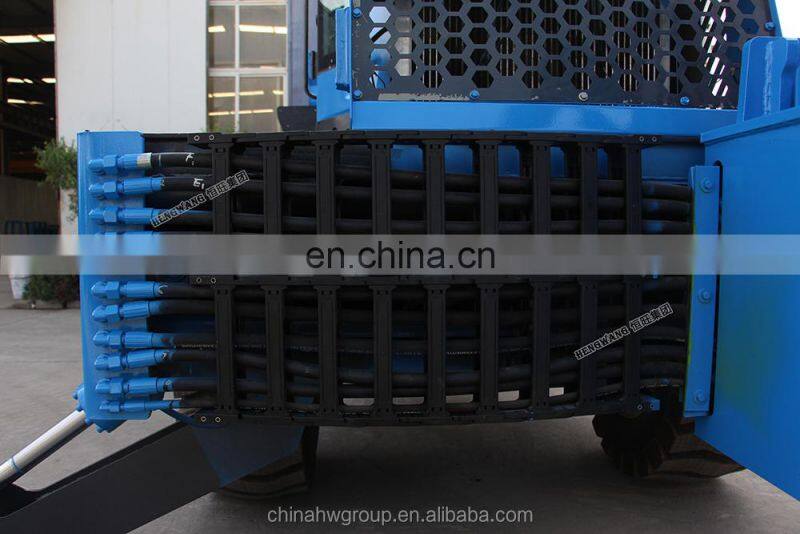

Details Images
Our Company

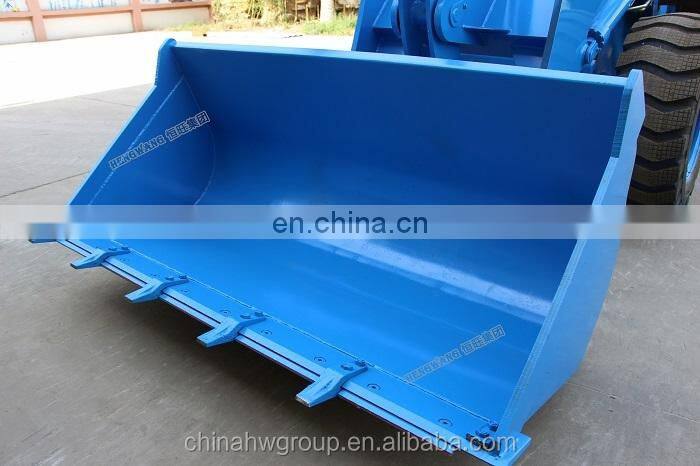

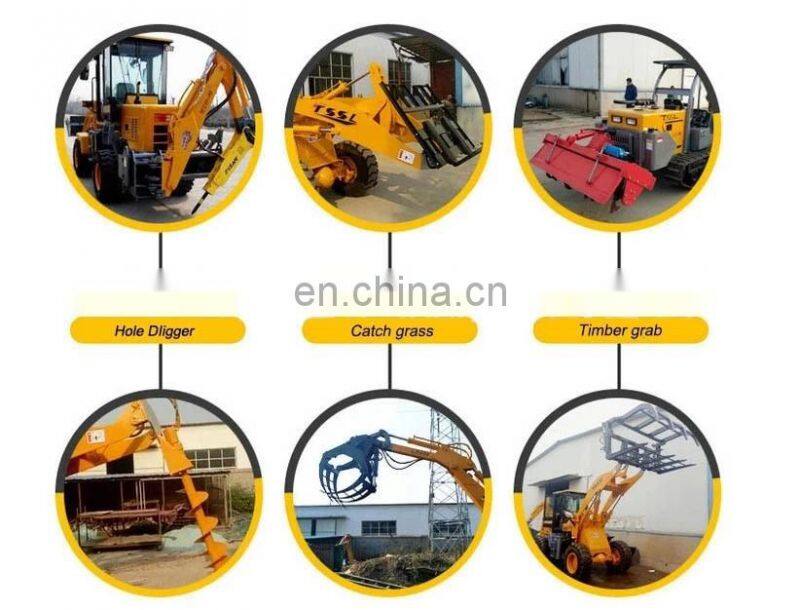

Attachment
