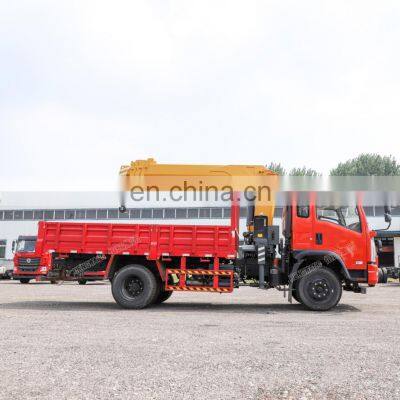

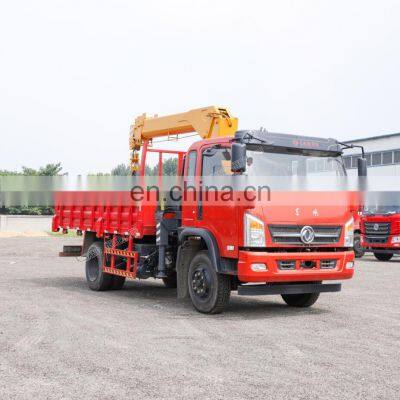

Hengwang HW-6.3T Hydraulic Mobile Crane 6.3T Crane Mounted Truck With Cheap Price
Negotiable
MOQ: 1 set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Business Type:
Government ministry/Bureau/Commission
Year Established:
1998
Annual Export Value:
Below US$1 Million
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Hengwang HW-8T Truck Crane Small 8T Hydraulic Cargo Cranes For SaleNegotiableMOQ: 1 -
Hengwang HW-SPC3 Small Hydraulic Crane Spider Crane 3T Portable Mini Hydraulic Mobile Spider For SaleNegotiableMOQ: 1
-
Hengwang HW-16T Dong Feng Chassis Hydraulic Telescoping Boom 16 Ton Cranes For SaleNegotiableMOQ: 1
-
Hengwang HW-SPC3 Mini Crawler Crane Spider Crane Hydraulic Small Mobile SpiderNegotiableMOQ: 1
-
Hengwang HW-SPC3 Crane Lift Spider 3Tons Hydraulic Small Mobile Spider CraneNegotiableMOQ: 1
Product description
Hengwang HW-6.3T Hydraulic Mobile Crane 6.3T Crane Mounted Truck With Cheap Price
Our truck mounted cranes, articulating cranes and hydraulic loaders help you accomplish more on your job sites.Whether your crane truck will be working on a construction site, in a mine, moving materials, assisting with utility maintenance,handling tires or transporting heavy equipment, our truck mounted crane team can specify and customize a truck to successfully accomplish the unique challenges you face.
Truck Cranes Advantage :
1.Better Performance
The layout of the whole machine is optimized, the main load-bearing members are more reasonable in force, and the lifting performance exceeds the same tonnage products in the industry.The mature boom technology combining the inserted arm head, the embedded arm block and the special telescopic mechanism makes the boom expansion and contraction more stable and high reliability.Optimized for force design, with new box legs, larger span, stronger stiffness and better stability.
2.Reliable Quality
With the classic boom telescopic technology, the work is safer and more reliable.Carefully build the most complete safety device system in the industry to ensure safe and reliable lifting operations.
Fully upgraded brake system, dual-circuit air pressure design, multiple systems to ensure the safety of the vehicle while driving.
The high rigidity of the turntable and frame structure is completely coordinated with the strength and rigidity.The perfect combination of design and structural process manufacturing, complete automation of welding and higher reliability.
3.Easier Maintenance
The new optimized design of pipeline routing, the layout is more scientific and reasonable, greatly shortening the pipeline
disassembly time and reducing maintenance costs.The electrical system is fully upgraded, and a number of electronic devices are available in optional configurations. All of them are equipped with anti-leakage connectors, which greatly extend the service life of components. Adopt anti-corruption rope technology to improve the efficiency of lifting work, reduce labor intensity and extend the life of
steel rope. The carefully designed telescopic wire rope guiding and guarding device prevents the wire rope from being broken.
4.Energy saving and more environmentally friendly
The electromechanical dual-purpose hydraulic system is more environmentally friendly and economical.Adopting advanced machine matching technology, the design is more scientific, the mechanism loss is reduced, the service life of the whole machine is extended, and the residual value of the equipment is high.
Technical Parameters
Model |
HW-6.3T |
Dimensions (mm) |
4800/5500/5700 |
||
Choose chassis |
Dongfeng |
Engine model |
YC6JA180-50 |
||
Emission Standards |
National V emission standards |
Engine power |
132KW |
||
Maximum lifting weight （T） |
6.3 |
Tyre model |
10.00R20 |
||
Boom （M） |
12.5 |
Wheelbase (mm) |
5100 |
||
Basic arm length （M） |
4 |
Dimensions (mm) |
9000*2400*3850 |
||
Maximum lifting height （M） |
15.3 |
Internal dimensions of cargo box (mm) |
5600*2300*550 |
||
Number of boom sections |
4 |
Total weight(kg) |
3225 |
||
Maximum elevation angle |
80° |
Rated load weight (kg) |
5805 |
||
Turn around angle |
0-360 |
Curb weight (kg) |
12380 |
||
Swing speed |
0-3 |
Top speed (km/h) |
90 |
||
Hydraulic outrigger |
Automatic |
Out arm way |
Cylinder + rod rope |
||
Big frame |
Three layers |
Steering method |
Hydraulic boost |
||
Products Display
Why Choose Us
Product package and Shipping
Packing :
Roll on roll off (RORO) ship
It's the specialized ship to transport cars and trucks, which has power wheel, it's the best way of truck transportation.
Bulk carrier ship
It's the specialized ship to transport grain, coal, ore, salt, cement ,etc, dry and bulk goods, can also used to transport trucks,price is cheap, but the truck always be put on the deck, sea water will damage the truck painting
Container ship
Bulk carrier ship
It's the specialized ship to transport grain, coal, ore, salt, cement ,etc, dry and bulk goods, can also used to transport trucks,price is cheap, but the truck always be put on the deck, sea water will damage the truck painting
Container ship
It's well-known shipping way, and also the highest cost among these three ways. Few sea port only container ship can arrive, so sometimes, we have to use container ship.
