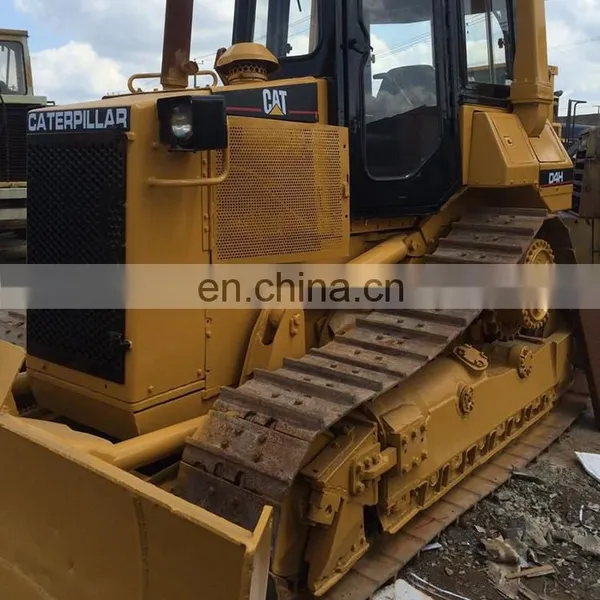

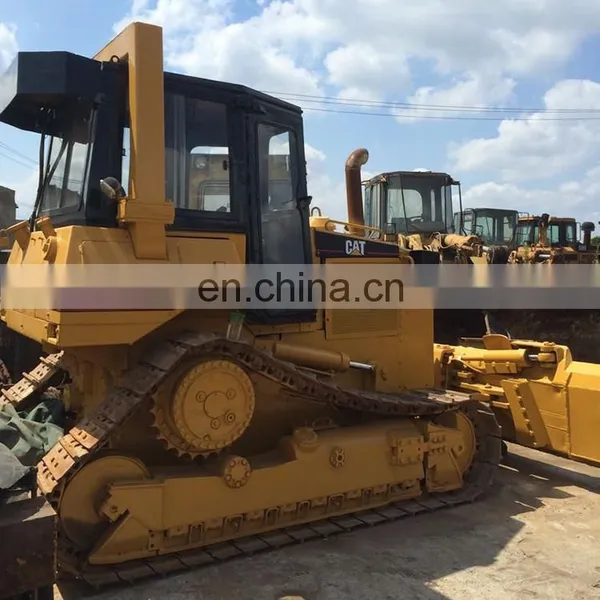

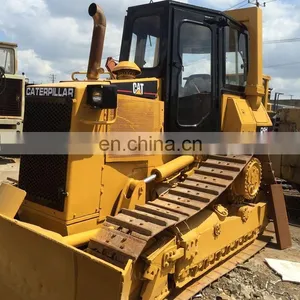

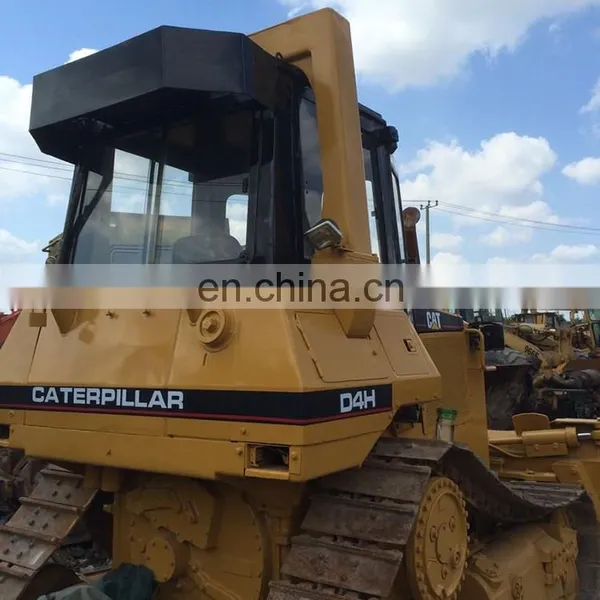

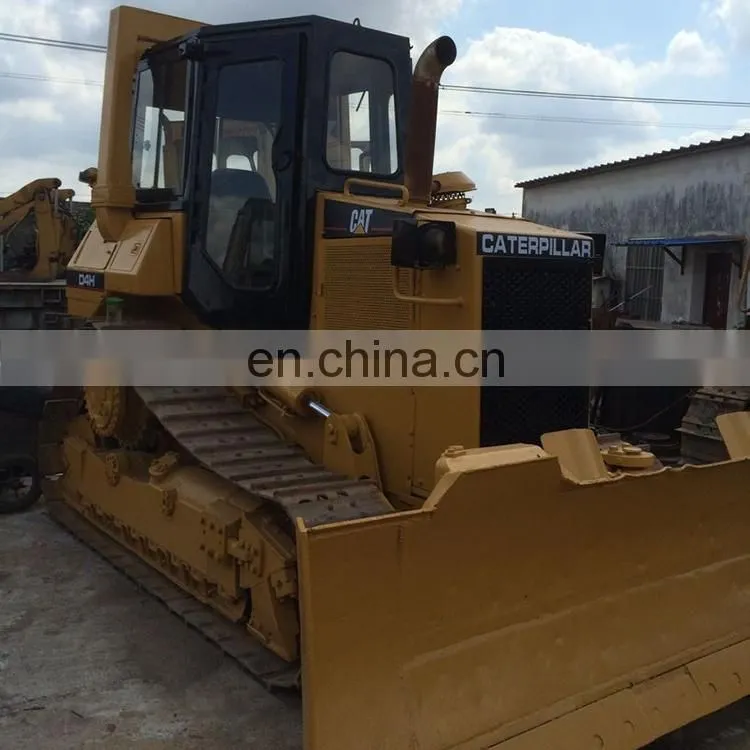

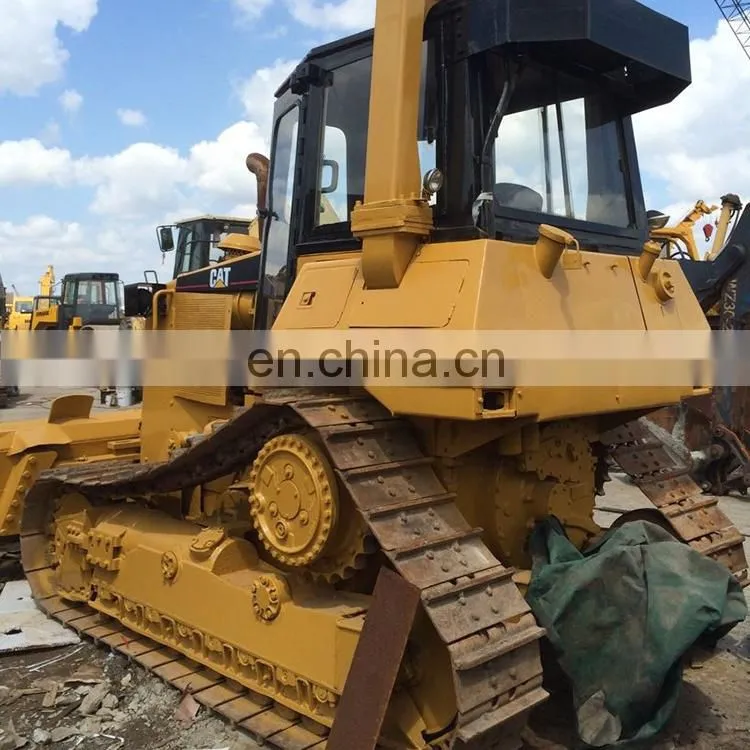

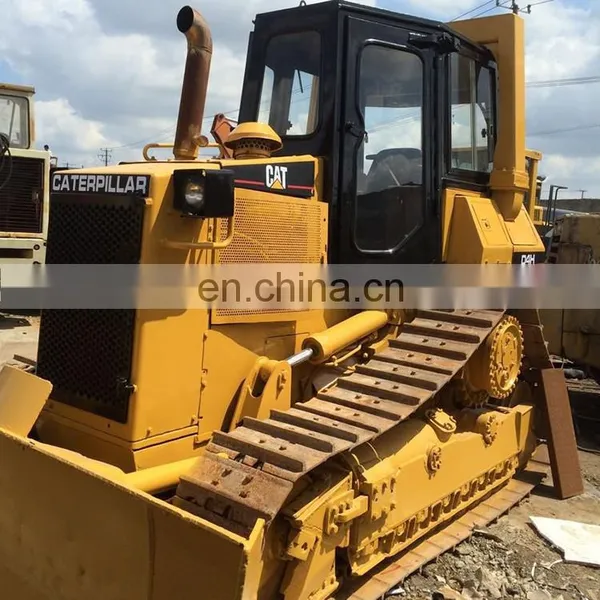

Caterpillar D4H
Used bulldozer for sale
Cheap bulldozer
Location: Shanghai China
Year: 2013
Place of Origin: Japan
Well serviced and maintenance
Low working hours
Guarantee: One year
Specification
|

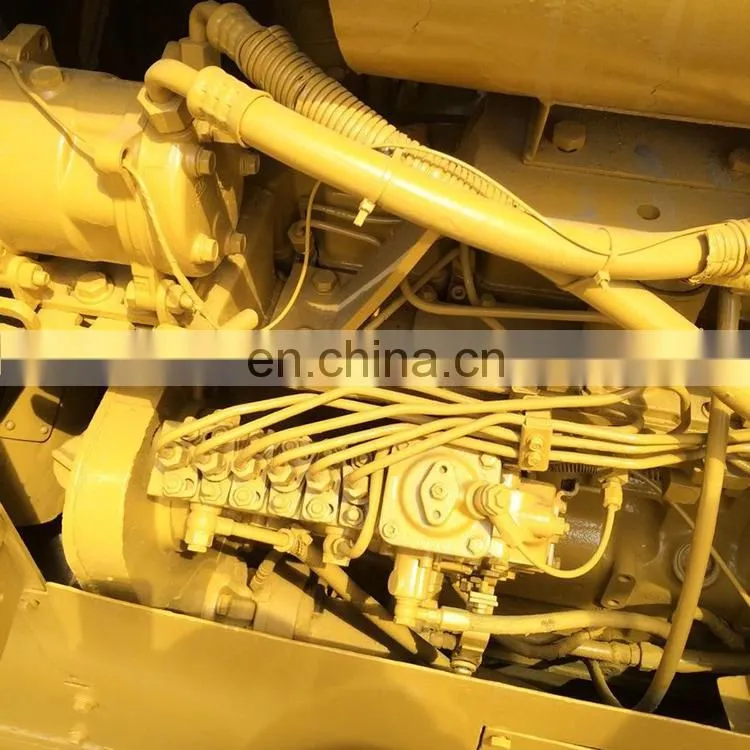

Engine |
||
|
Make |
Caterpillar |
|
|
Model |
3204 |
|
|
Gross Power |
99 hp |
73.8 kw |
|
Net Power |
95 hp |
70.8 kw |
|
Power Measured @ |
2200 rpm |
|
|
Displacement |
317.3 cu in |
5.2 L |
|
Number of Cylinders |
4 |
|
|
Aspiration |
turbocharged |
|
|
Operational |
||
|
Operating Weight |
22597.4 lb |
10250 kg |
|
Fuel Capacity |
44.1 gal |
167 L |
|
Cooling System Fluid Capacity |
7.1 gal |
27 L |
|
Engine Oil Capacity |
4 gal |
15 L |
|
Hydraulic Fluid Capacity |
17.8 gal |
67.3 L |
|
Final Drives Fluid Capacity |
1.6 gal |
6 L |
|
Operating Voltage |
V |
|
|
Transmission |
||
|
Type |
planetary power shift |
|
|
Number of Forward Gears |
3 |
|
|
Number of Reverse Gears |
3 |
|
|
Max Speed - Forward |
6.3 mph |
10.2 km/h |
|
Max Speed - Reverse |
7.6 mph |
12.2 km/h |
|
Undercarriage |
||
|
Ground Pressure |
7.1 psi |
49.2 kPa |
|
Ground Contact Area |
3168 in2 |
2 m2 |
|
Standard Shoe Size |
18.1 in |
460 mm |
|
Number of Shoes per Side |
39 |
|
|
Number of Track Rollers per Side |
7 |
|
|
Track Gauge |
5.5 ft in |
1680 mm |
|
Hydraulic System |
||
|
Pump type |
Variable-displacement piston pump senses implement load |
|
|
Relief Valve Pressure |
2700 psi |
18615.8 kPa |
|
Pump Flow Capacity |
25 gal/min |
94.6 L/min |
|
Standard Blade |
||
|
Width |
8.5 ft in |
2584 mm |
|
Height |
38 in |
965 mm |
|
Capacity |
2.5 yd3 |
1.9 m3 |
|
Cutting Depth |
16.3 in |
414 mm |
Excellent running condition, be ready to work
Payment Terms: By TT Bank Transfer, 30% deposit+ 70% balance
Delivery time: within 7 working days after your payment
Our company is a professional large-scale supplier of all types of used construction machinery, including used cranes, wheel loaders, excavators, used bulldozers, compactor rollers, motor graders, forklifts, concrete mixer trucks, tractor heads, dump trucks, pavers, generators, stone crushers, used drillingmachines, and other related products.
If you need any more information, please feel free to contact me at any time.
Mob: 0086 15800691978
Skype: usedheavymachine
Whatsapp: 0086 15800691978
Need more information about used heavy machine, you can also scan follow picture to add our WECHAT public platform / Personal WECHAT.
