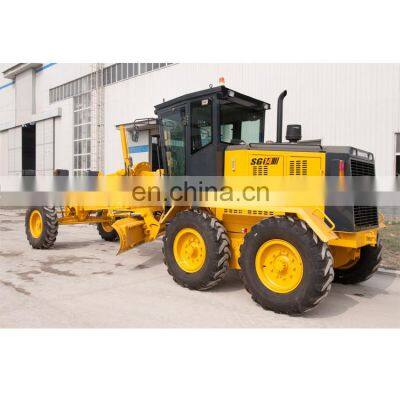

2022 Evangel 2022 Evangel New Motor Grader SHANTUI SG14 Motor Grader
Negotiable
1 (Min. Order)
- T/T Credit Card
You May Like
-
2022 Evangel 2022 Evangel Hot Selling SHANTUI SG14 Mini New Motor Grader
-
2022 Evangel 2022 Evangel Motor Grader SHANTUI SG14 140HP Motor Grader
-
140HP Motor Grader 11ton Road Grader Price SHANTUI SG14
-
2022 Evangel 2022 Evangel Price Tractor Grader Blade 140HP New Grader SHANTUI SG14
-
Motor Grader SHANTUI SG14 140HP China Motor Grader
-
2022 Evangel 2022 Evangel Chinese Brand SHANTUI Motor Grader SHANTUI SG14
Product Description
new motor grader SHANTUI SG14 motor grader
Contact way:
Contact Way
Annie Li
Mobile / Whatsapp / Wechat: +86138 1769 0558
Evangel(shanghai)Industrial Co,Ltd
Evangel International Machinery Ltd
Add: Suite 2806, Super Ocean Finance Center,
No. 2067 West Yan'an Road, Shanghai, China
Web:
Product Description
ENGINE POWER
With 112kW/2200,this engine conforms to China-II non-road machinery emission regulation
OVERALL WEIGHT
11600kg
WIDTH OF SHOVEL BLADE
3660mm
Power System
- It's powered by Dongfeng Cumins 6BTAA5.9-C150 China-II compliant inline, 4-stroke, direct injection, water-cooled, and turbocharged and intercooled diesel engine, featuring compact structure, stable performances, and high efficiency and energy-saving.
- The high torque reserve enables the machine to output stable power under severe working conditions and meet your working needs.
Operating performance
- It features the highest traction force among the domestic motor graders of like type and the highest operating efficiency among the domestic products of like type.
- The external gear working device of proprietary technology features high drive torque and strong resistance against external force impact.
- The blade of larger angular adjustment range (37°-83°) improves the material control capability and remarkably promotes the operating efficiency of motor grader, especially during the handling of dry material and clay.
- With full-load scraping capability in 2nd forward gear, the motor grader can remarkably promote the production efficiency compared with domestic products of like type.
- With high resistance against external force impact, the link type swing frame is applicable for the working conditions with high operating volume and severe operating environment.
Working adaptability
- With 6 forward gears and 3 reverse gears, the electro-hydraulically controlled power shift transmission can select the optimal gear based on the working road condition to realize the best match between traveling and operation.
- The integral three-segment drive axle is built internally with imported no-spin automatic limited slip differential to guarantee stable and reliable drive.
- The balance box is capable of 15° angular swing in vertical direction and the heavy-duty roller chain drive guarantees better terrain adaptability of the machine. It can meet the normal operations under special road conditions, featuring stable power output and strong drive force.
| Product name | SG14 |
| Performance parameters | |
| Operating weight of machine (kg) | 11600 |
| Wheelbase (mm) | 5812 |
| Wheel tread (mm) | 2050 |
| Minimum ground clearance (mm) | 430 |
| Steering angle of front wheels (°) | ±45 |
| Articulated steering angle (°) | ±25 |
| Maximum traction force (kN) | 65(f=0.75) |
| Turning radius (mm) | 6600 (Outer side of front wheel) |
| Maximum gradeability (°) | 20 |
| Width of shovel blade (mm) | 3660 |
| Height of shovel blade (mm) | 615 |
| Blade slewing angle (º) | 360 |
| Blade cutting angle (º) | 30-68 |
| Maximum digging depth of blade (mm) | 500 |
| Length (mm) | 8036 |
| Width (mm) | 2380 |
| Heigh (mm) | 3170 |
| Engine | |
| Engine model | 6BTAA5.9-C150 |
| Emission | China-II |
| Type | Mechanical direct injection |
| Rated power/rated speed (kw/rpm) | 112kW/2200 |
| Drive system | |
| Torque converter | Single-stage single-phase three-element |
| Transmission | Countershaft power shift |
| Gears | Six forward and three reverse |
| Speed for forward gear I (km/h) | 5.4 |
| Speed for forward gear II (km/h) | 8.3 |
| Speed for forward gear III (km/h) | 13.2 |
| Speed for forward gear IV (km/h) | 20.6 |
| Speed for forward gear V (km/h) | 29.6 |
| Speed for forward gear VI (km/h) | 44 |
| Speed for reverse gear I (km/h) | 5.4 |
| Speed for reverse gear II (km/h) | 13.2 |
| Speed for reverse gear III (km/h) | 29.6 |
| Brake system | |
| Service brake type | Hydraulic brake |
| Parking brake type | Mechanical brake |
| Brake oil pressure (MPa) | 10 |
| Hydraulic system | |
| Working pump | Constant displacement gear pump, with flow at 28ml/r |
| Operating valve | Integral multi-way valve |
| Pressure setting of safety valve (MPa) | 16 |
| Pressure setting of safety valve (MPa) | 12.5 |
| Filling of fuel/oils/fluids | |
| Fuel tank (L) | 220 |
| Working hydraulic fuel tank (L) | 85 |
| Transmission (L) | 28 |
| Drive axle (L) | 28 |
| Balance box (L) | 2X23 |
