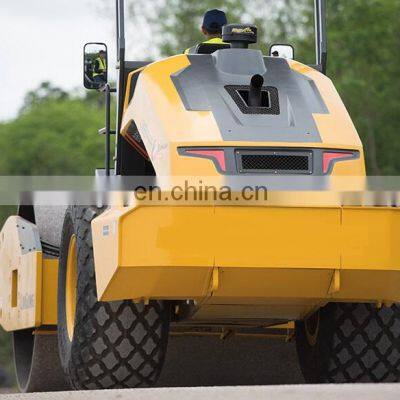

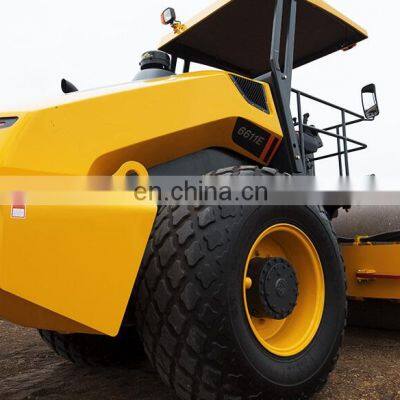

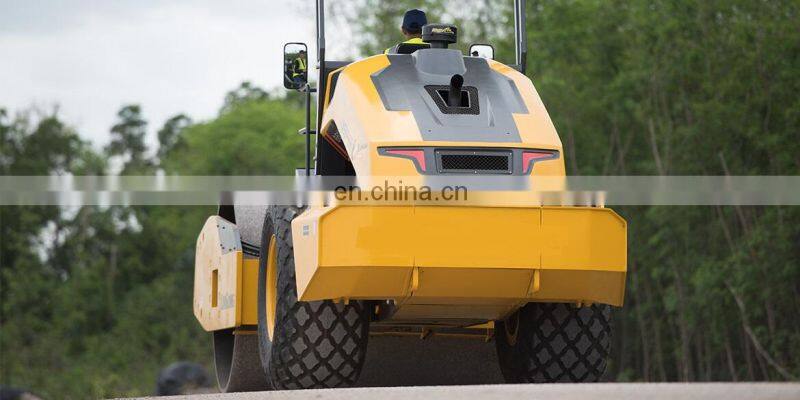

Small Single Drum Road Roller 11 Ton Operating Weight CLG6611E With Cu-mmins Engine
Negotiable
MOQ: 1 set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Business Type:
Business Service (Transportation, finance, travel, Ads, etc)
Year Established:
2004
Annual Export Value:
US$1 Million - US$1.5 Million
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Paver Asphalt Paving Stone Asfalt Paver Small Paver MachineNegotiableMOQ: 1 -
2022 Evangel Paver Machine Shantui 2.5-9.5m Hot Selling Asphalt PaverNegotiableMOQ: 1
-
Mini Asphalt Paver Asphalt Sensor Paver Asphalt PaverNegotiableMOQ: 1
-
2022 Evangel Shantui Paver Block Machine Sandstone Pavers SRP95M PlusNegotiableMOQ: 1
-
2022 Evangel Shantui Road Paver Machinery 2.5-9.5m SRP95M Plus Asphalt Concrete PaverNegotiableMOQ: 1

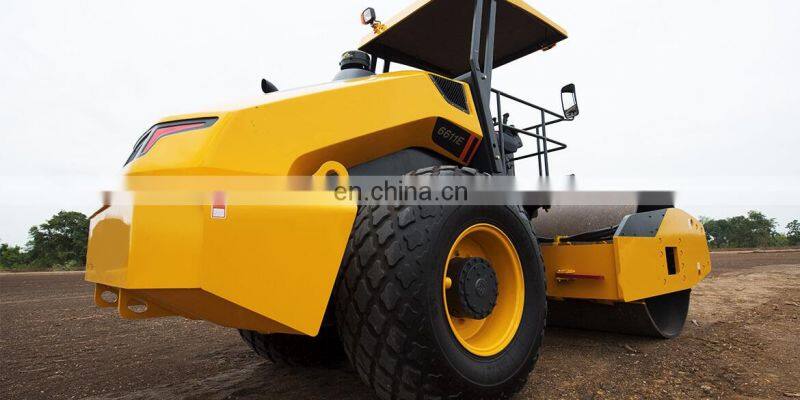

Small single drum road roller 11 ton operating weight 6611E with Cu-mmins engine
Product Description
Flexible and non-impact technology on our vibratory rollers extends the vibratory bearing’s working life to beyond 10,000 hours increasing productivity and reducing part wear.
With dual frequency and double amplitude vibratory mode, our rollers generate industry leading centrifugal compaction force.

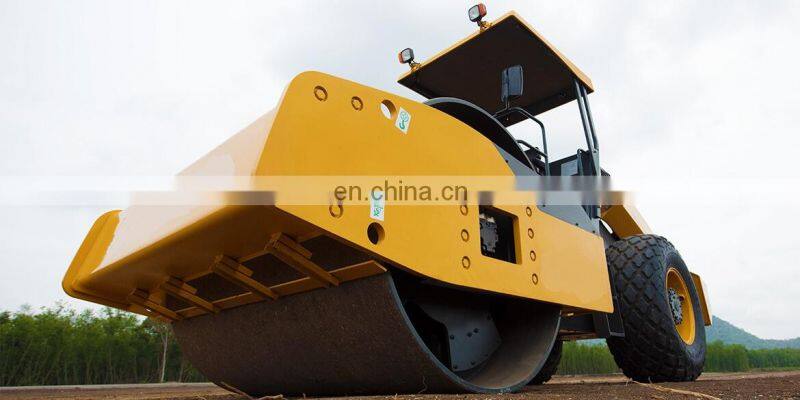

With a larger diameter drum, combined with amplitude consistency and uniformity, we ensure that the optimum compaction force is delivered with fewer passes required.
| Operating Mass | 11350 kg |
| Mass On Vibrating Drum | 6350 kg |
| Mass On Drive Axle | 5000 kg |
| Front Drum Static Linear Load | 292 N/cm |

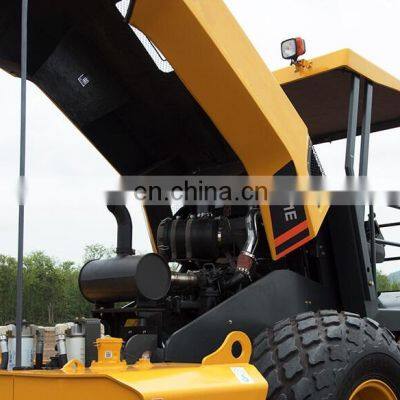

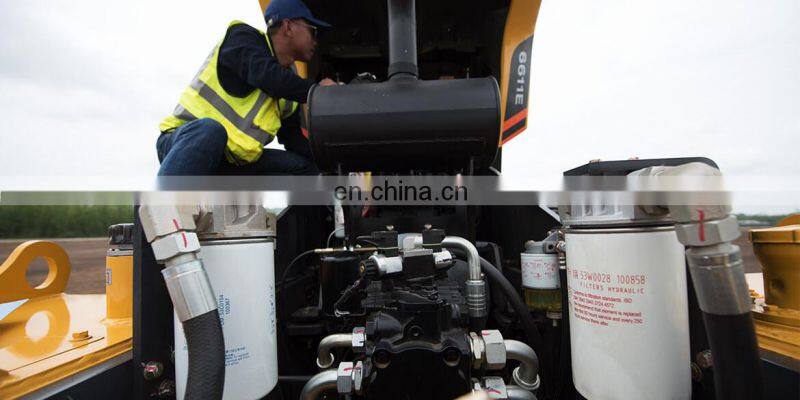

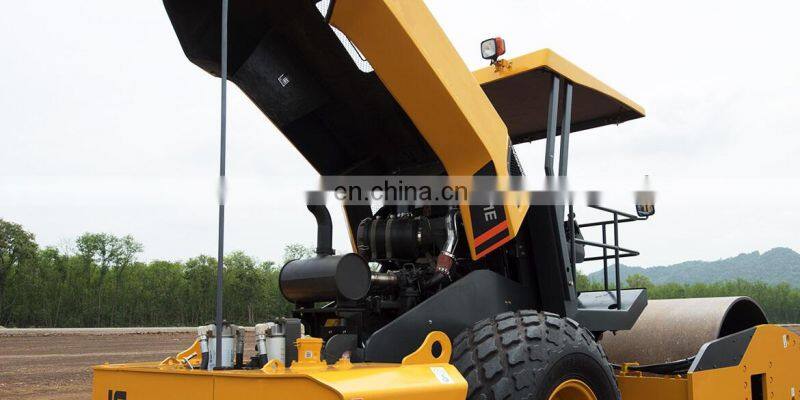

| Model | Cu-mmins 4BTAA3.9-C125 |
| Emission Regulation | Stage II |
| Rated Power | 93 kW (125 hp) @ 2200 rpm |
| Vibration Frequency | 30/33 Hz |
| Nominal Amplitude | 2.0/1.1 mm |
| Centrifugal Force | 300/190 kN |
| Drum Diameter | 1555 mm |
| 1st Maximum Speed, fwd | 6 km/h |
| 2nd Maximum Speed, fwd | 10.5 km/h |
| Theoretical Gradeability | 45% |
| Min. GroundClearance | 470 mm |
| Wheelbase | 2980 mm |
| Min. Outside Turning Radius | 6500 mm |
| Overall Length | 6000 mm |
| Overall Width | 2280 mm |
| Overall Height | 3180 mm |
