China brand 10 ton single drum Vibratory roller XS103H XS103 road roller for sale
Contact person:Jin Zou
Mobile/Whatspp/Wechat/Skype:+86 17707042688
Email:jin at
Specifications
Good quality with low price; Convenient operation ;
vibratory road roller XS103H has a very high static line load and exciting force and is suitable to the compaction operation of pebbles, sandy soils, moraine soil, blasting rock and clayey soil, etc. and roller XS103H is also suitable to the compaction of concrete and stabilized soil base materials in various large projects.
Thus, vibratory road roller XS103H is a kind of important compaction equipment in the construction of large projects such as the expressway, railway, mine, port, etc.
Parameters:
|
Item |
Unit |
Parameter |
|
|
Work weight |
kg |
10600 |
|
|
Drive wheel distribution weight |
kg |
5900 |
|
|
Vibratory drum distribution weight |
kg |
4700 |
|
|
Static line load |
N/cm |
216 |
|
|
Vibration frequency |
Hz |
30/35 |
|
|
Theoretical amplitude |
mm |
1.9/0.95 |
|
|
Exciting force |
kN |
220/150 |
|
|
Speed range |
km/h |
0~7.3 |
|
|
Wheelbase |
mm |
3040 |
|
|
Compaction width |
mm |
2130 |
|
|
Theoretical climbing ability |
% |
40 |
|
|
Minimum turning radius |
mm |
6400 |
|
|
Vibratory drum diameter |
mm |
1513 |
|
|
Minimum ground clearance |
mm |
431 |
|
|
Engine |
Rated speed |
r/min |
2200 |
|
Rated power |
kW |
100 |
|
|
Dimensions |
mm |
6150×2300×3200 |
|
|
Vibration system pressure |
MPa |
18 |
|
|
Steering system pressure |
MPa |
16 |
|
|
Drive system pressure |
MPa |
40 |
|

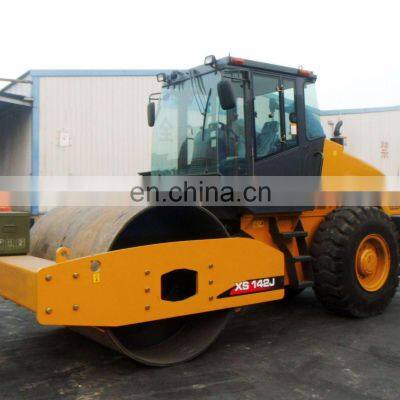

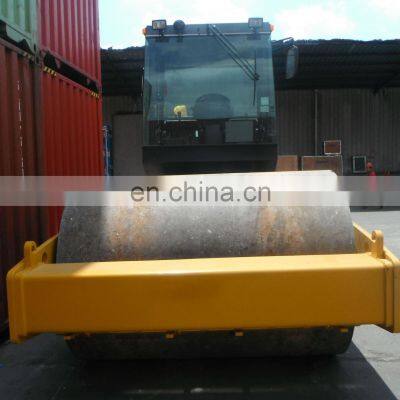

Pictures of product
