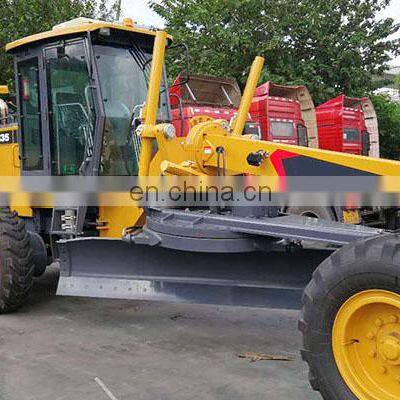

Hot Sale 135HP Small Motor Grader GR135 In Philippines
Negotiable
1 (Min. Order)
- T/T Credit Card
You May Like
-
2022 Evangel China Motor Grader GR215 With Blade and Ripper
-
2022 Evangel GR2153 Gr215 Motor Grader China 215hp 180hp GR163 GR180 Motor Grader
-
2022 Evangel Motor Grader 180hp Motor Grader GR180 GR1803 Sale With Cheap Price
-
Road Mini Vibratory Roller 4 Ton Double Drum Road Roller Compactor XMR403
-
Road Roller Double Drum XD102
-
2022 Evangel SHANTUI Brand New 18T Single Drum Road Roller SR18M Vibratory Roller SR20
Product Description
Products Description

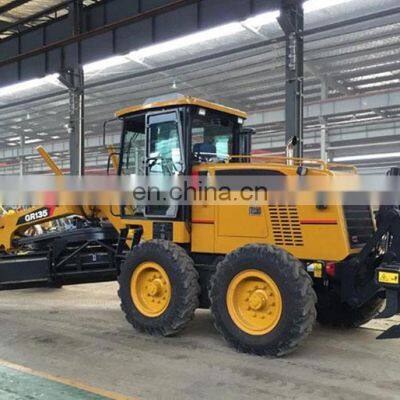

Hot Sale 135HP Small Motor Grader GR135 In Philippines
The GR135 motor grader is mainly used for ground leveling, ditching, slope scraping, bulldozing, scarification, snow removal for large areas such as highway, airports, farm- lands etc. It is the necessary construction machinery for national defense construction, mine construction, urban and rural road construction and water conservancy construction, farmland improvement and so on.
1. GR135 adopt 6BT5.9-C130-II turbocharged diesel engine, Large output torque and power reserve coeficient and low oil
consumption.
2. Torque converter has big torque coefficient, wide high efficiency area.
3. The rear axle adopts balanced suspension to ensure the uniform load of four wheels, which is conducive to the full use of its adhesion ability.
4. The front axle is steering axle. The axle can swing from side to side. In addition to the front steering, it also uses the
articulated frame, which can further reduce the turning radius.
5. The hood is structural part, well shaped with turn over function, the two sides double door is reversible, enhances the
maintainability.
1. GR135 adopt 6BT5.9-C130-II turbocharged diesel engine, Large output torque and power reserve coeficient and low oil
consumption.
2. Torque converter has big torque coefficient, wide high efficiency area.
3. The rear axle adopts balanced suspension to ensure the uniform load of four wheels, which is conducive to the full use of its adhesion ability.
4. The front axle is steering axle. The axle can swing from side to side. In addition to the front steering, it also uses the
articulated frame, which can further reduce the turning radius.
5. The hood is structural part, well shaped with turn over function, the two sides double door is reversible, enhances the
maintainability.
Specification
Description | Unit | Parameter value | ||
Engine model | 6BT5.9-C130-Ⅱ | |||
Rated power/speed | kw(r/min) | 97(2200) | ||
Overall dimension (standard) | 8015X2380X3050 | |||
Total weight (standard) | kg | 11000 | ||
Tire specification | 13.00-24 | |||
Ground clearance (front axle) | mm | 515 | ||
Tread | mm | 2020 | ||
Space of front and rear axles | mm | 5780 | ||
Forward velocity | km/h | 5/8/13/20/30/42 | ||
Reverse speed | km/h | 5/13/30 | ||
Tractive effort f=0.75 | kN | 61.3 | ||
Maximum gradeability | % | 20 | ||
Tire inflation pressure | kPa | 300 | ||
Working system pressure | MPa | 16 | ||
Transmission pressure | MPa | 1.3—1.8 | ||
Maximum steering angle of front wheel | ±49° | |||
Maximum slant angle of front wheel | ±17° | |||
Maximum oscillating angle of front axle | ±15° | |||
Maximum oscillating angle of equilibrium box | ±16° | |||
Maximum steering angle of frame | ±27° | |||
Minimum turning radius | m | 6.6 | ||
Scrape knife | Maximum lift height | mm | 410 | |
Maximum cutting depth | mm | 515 | ||
Maximum tilt angle | 90° | |||
Cutting angle | 54°—90° | |||
Angle of revolution | 360° | |||
Length & chord height | mm | 3048x610 | ||
Coolant | L | 50 | ||
Fuel tank | L | 260 | ||
Engine | L | 18 | ||
Transmission | L | 26 | ||
Hydraulic oil | L | 96 | ||
Drive axle | L | 28 | ||
Balancing box | L | 46 | ||
Details Images
