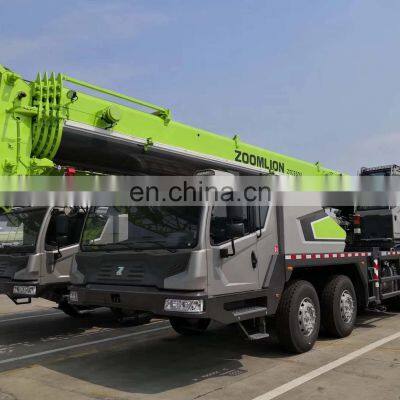

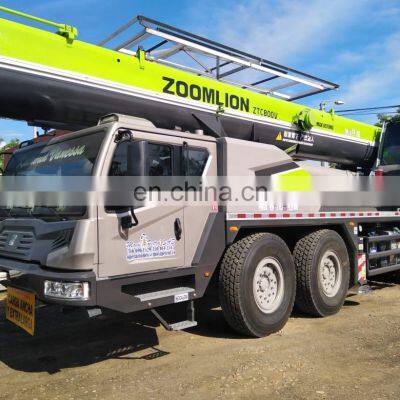

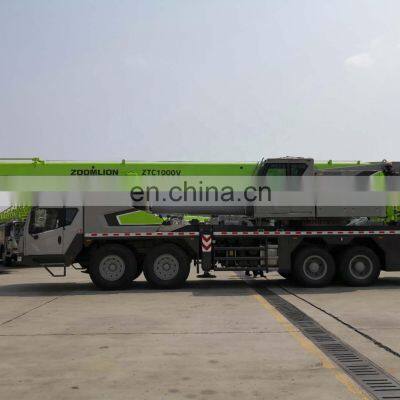

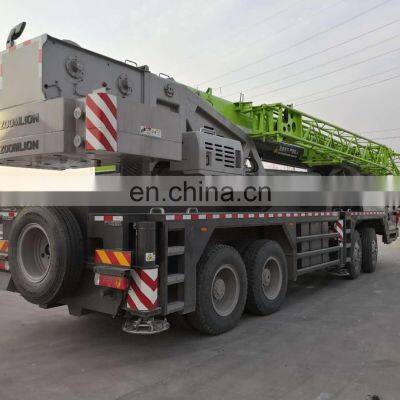

Chinese Top Brand 100 TON Truck Crane ZTC1000V Heavy Duty Mobile Crane For Sale
Negotiable
MOQ: 1 set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Business Type:
Business Service (Transportation, finance, travel, Ads, etc)
Year Established:
2004
Annual Export Value:
US$1 Million - US$1.5 Million
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
ZOOMLION 100 Ton Truck Crane ZTC1000V Brand New Crane Truck In DubaiNegotiableMOQ: 1 -
Zoomlion 71M Mobile Diesel Crane Truck ZTC1000VNegotiableMOQ: 1
-
100T Lifting Cranes With Cheapest Price ZOOMLION ZTC1000VNegotiableMOQ: 1
-
Zoomlion ZTC1000V 2021 New Hydraulic Mobile Crane 100Ton Truck Crane For SaleNegotiableMOQ: 1
-
ZOOMLION Manufacturer Sale ZTC1000V 100 Ton Hydraulic Mobile Mounted Truck CraneNegotiableMOQ: 1
ZOOMLION 100 ton 200 ton all terrain crane ZAT2000V with 300 ton ZAT3000V crane all terrain hot sale in Africa
Product Description
Specification:
Four axles (1 & 2 for turning, 3 & 4 for driving), HANDE brand,
Weichai engine 276kW,
Fast brand transmission,
6-section main boom (13.6-64m),
2-section jibs (17.5m),
A/C for carrier and crane,
45t removable balance weight,
70t, 25t, 7t hooks.
Four axles (1 & 2 for turning, 3 & 4 for driving), HANDE brand,
Weichai engine 276kW,
Fast brand transmission,
6-section main boom (13.6-64m),
2-section jibs (17.5m),
A/C for carrier and crane,
45t removable balance weight,
70t, 25t, 7t hooks.
ZTC1000V653 truck crane is our experience and advanced technology for adapting to market demand. A new generation of high performance products developed by the main. This product is a highly concentrated high-tech product of electro-hydraulic systems. It will be distinguished by its excellence. Active control, economical construction, excellent micro-motion performance, huge lifting capacity and extraordinary lifting height. Various areas. This product is suitable for lifting operations in chemical, mining, oil fields, port terminals, construction sites and other places. Installation work. This product is not suitable for areas with strong electromagnetic waves.
This product is a full-slewing, telescopic boom-type, electro-hydraulic proportional control truck crane, which is made by our company.Full-drive four-bridge dedicated chassis, wide view, luxurious and comfortable decoration, 8×4 drive, hydraulic power steering, light and flexible.
Adopts the latest load-feedback electro-hydraulic proportional directional control valve and multi-plunger variable displacement pump, open and closed combined variables. The system makes the working capacity of each actuator fully exerted, and the double rocker is operated, which can realize the main and auxiliary lifting, variable amplitude, rotation, The combined action between the telescopic mechanisms greatly improves the working efficiency of the crane. Lightweight, flexible, and easy to operate. It is characterized by smooth and reliable, stepless speed regulation. In the hydraulic system, there are relief valves, balancing valves, hydraulic locks, brake valves, etc. Safety devices to prevent overloading of the oil circuit and to avoid accidents caused by oil pipe rupture.
The crane is equipped with a variety of safety devices such as a torque limiter and a complete lighting system to ensure safe operation. Rely on, and easy to work at night. The product is novel in shape, with a beautiful body, a beautiful line and a beautiful color.
| Item | Value | Remarks | |
|---|---|---|---|
| Work performance |
Max. rated lifting capacity kg | 10000 | |
| Max. load moment of basic boom kN.m | 4410 | ||
| Max. load moment of main boom (fully extended) kN.m | 2328 | ||
| Max. lifting height of basic boom m | 14.0 | ||
| Max. lifting height of main boom m | 64.5 | ||
| Max. lifting height of jib m | 82.2 / (89.2) | ||
| Work speeds |
Max. hoist rope speed (Main winch) m/min. | 115 | |
| Max. hoist rope speed (Auxiliary winch) m/min. | 90 | ||
| Boom derricking up time s | 70 | ||
| Boom extending time s | 13 | ||
| Max. slewing speed r/min. | 1.5 | ||
| Driving | |||
| Max. driving speed km/h | 85 | ||
| Max. gradeability % | 45 | ||
| Min. turning diameter m | 24 | ||
| Min. ground clearance mm | 330 | ||
| Fuel consumption per hundred kilometers L | 46 | ||
| Mass | Deadweight in driving condition kg | 50000 | |
| Complete vehicle kerb mass kg | 49805 | ||
| Load on axles 1 and 2 kg | 24000 | ||
| Load on axles 4 and 5 kg | 26000 | ||
| Dimensions | Overall dimensions (L × W × H) mm | 14990x2900x3990 | |
| Outrigger spread (L) m | 6.53 | ||
| Outrigger spread (W) m | 7.8 (fully extended), 5.6 (intermediately extended) |
||
| Main boom length m | 13.6~64.0 | ||
| Boom angle ° | -0.5~82 | ||
| Jib length m | 10.4 ,17.5 | ||
| Jib + extension length m | 24.5 | ||
| Offset ° | 0, 15, 30 | ||
| Engine | Engine model | WP12.375E50 | |
| Rated power | 276kW/1900r/imn | ||
| Rated torque | 1800N.m/(1000-1400)r/min |
