ZOOMLION 60 ton mobile truck crane for sale
Product Description
-
-
-
New generation 4.0 series platform 60T with 5 section main boom(11.6m-45m).
-
Max. lifting moment reaches to 2033kN.m, max. lifting height with jib up to 61.5m.
-
Full width right-handed driver's cab offers comfortable driving experience.
-
Standard tiltable operator's cab. Max. 11T counterweight with hydraulic ballast system.
-
High ROI.
-
-
Parameter
| Item | Unit | Value | Remarks | |
|---|---|---|---|---|
| Working performance | Max. rated lifting capacity | kg | 60000 | |
| Max. load moment of basic boom | kN.m | 2033 | ||
| Max. load moment of main boom(fully extended) | kN.m | 1235 | ||
| Max. lifting height of main boom | m | 45.7 | These parameters do not include deflection of main boom and jib | |
| Max. lifting height of jib | m | 61.5 | ||
| Working speeds | Max. hoist rope speed(Main winch) | m/min | 125 | At 4th layer |
| Max. hoist rope speed(Auxiliary winch) | m/min | 125 | At 4nd layer | |
| Boom demrricking up time | s | 45 | ||
| Boom telescoping out time | s | 95 | ||
| Slewing speed | r/min | 0-2.2 | ||
| Driving | Max. driving speed | km/h | 90 | |
| Max. gradeability | % | 47 | ||
| Turning diameter | m | ≤23 | ||
| Min. ground clearance | mm |
285 |
||
| Oil consumption per hundred kilometers | L | 43 | ||
| Mass | Deadweight in driving condition | kg | 42000 | |
| Complete vehicle kerb mass | kg | 41805 | ||
| Front axle load | kg | 16000 | ||
| Rear axle load | kg | 26000 | ||
| Dimension | Overall dimensions(L×W×H) | mm | 13950×2800×3710 | |
| Longitudinal distance between outriggers | m | 5.92 | ||
| Transversal distance between outriggers | m | For completely extended: 7.10 m; For half extended: 4.8 m |
||
| Tail slewing radius | mm | 3930 | ||
| Main boom length | m | 11.6 – 45.0 | ||
| Main boom angle | ° | -2 - 80 | ||
| jib length | m | 9.2, 14.6 | ||
| Offset | ° | 5 / 25 / 45 |

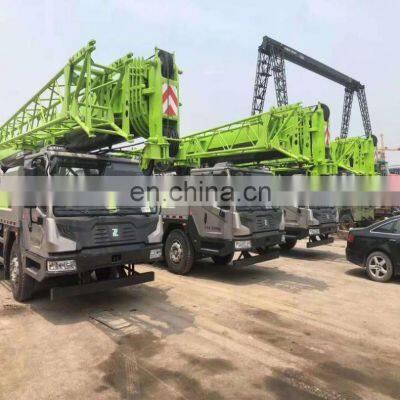

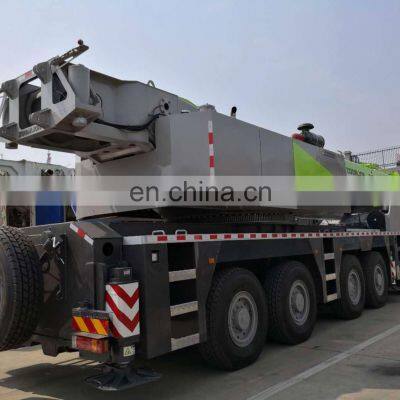

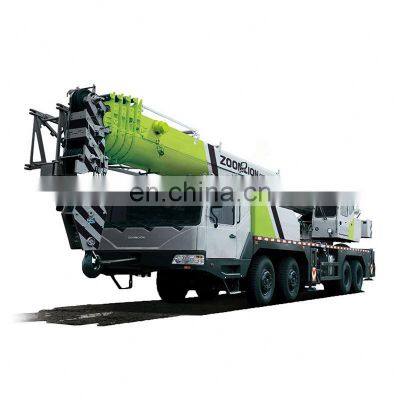

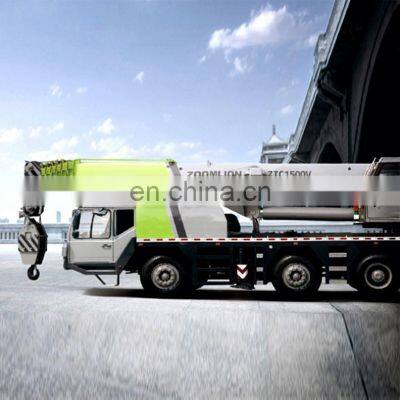

Photo for reference
