Zoomlion 25t 2000Kg Truck Crane With Good Quanlity ZTC250R

Name: Zoomlion 25t 2000Kg Truck Crane With Good Quanlity ZTC250R
Price: Negotiable

FOB Price

Negotiable

1 (Min.Order)

Product Description

ZOOMLION 25ton mobile truck crane for sale

Product Description

- - - New generation 4.0 series platform 55T with 5 section main boom(11.2m-44m).
    - Max. lifting moment reaches to 1568kN.m, max. lifting height with jib up to 60m.
    - Standard tiltable operator's cab.
    - High ROI.

Parameter

Item	Unit	Value	Remarks
Working performance	Max. rated lifting capacity	kg	25000
	Max. load moment of basic boom	kN.m	960
	Max. load moment of main boom(fully extended)	kN.m	598
	Max. load moment of basic boom	m	10.9
	Max. lifting height of main boom	m	40.2	These parameters do not include deflection of main boom and jib
	Max. lifting height of jib	m	47.8
Working speeds	Max. hoist rope speed(Main winch)	m/min	135	At the 4th layer
	Max. hoist rope speed(Auxiliary winch)	m/min	135	At the 4nd layer
	Boom demrricking up time	s	25
	Boom telescoping out time	s	82
	Slewing speed	r/min	0 -2.7
Driving parameters	Max. driving speed	km/h	85
	Max. gradeability	%	42
	Turning diameter	m	≤20
	Min. ground clearance	mm	250
	Oil consumption per hundred kilometers	L	28
Mass	Deadweight in driving condition	kg	30600
	Complete vehicle kerb mass	kg	30470
	Front axle load	kg	6500
	Rear axle load	kg	24100
Dimensions	Overall dimensions(L×W×H)	mm	12600×2500×3450
	Outrigger spread(L)	m	5.40
	Outrigger spread(W)	m	Fully extended:6.2, Intermediately extended:4.25
	Tail slewing radius	mm	3265
	Main boom length	m	10.2 - 40.0
	Boom angle	°	-1 - 80
	jib length	m	8.0
	Offset	°	5,17,30

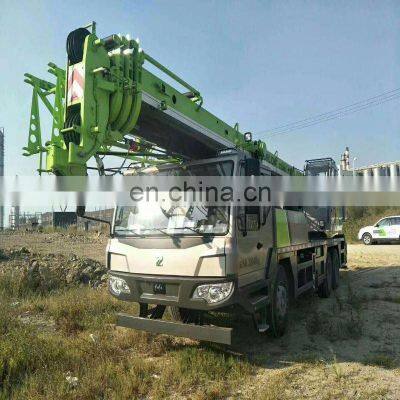

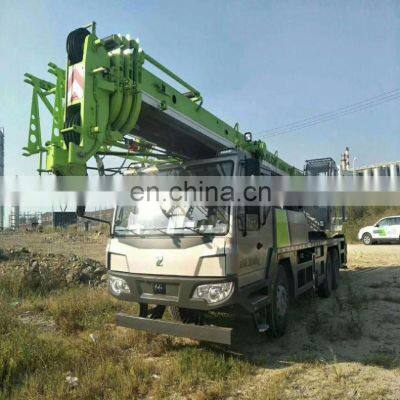

Photo for reference

Zoomlion 25t 2000Kg Truck Crane With Good Quanlity ZTC250R
