Home > Products > Earthmoving Machinery > 2022 Evangel High Performance SHANTUI SD22 Bulldozer 220HP bulldozer with U-blade

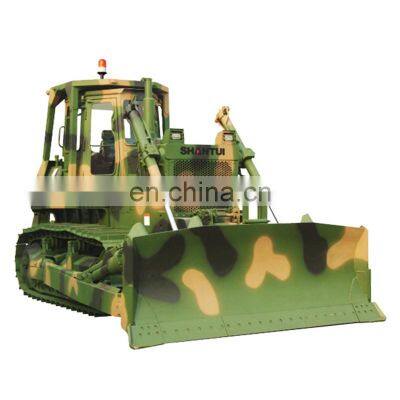

2022 Evangel High Performance SHANTUI SD22 Bulldozer 220HP bulldozer with U-blade
- 1000 per Month
- T/T Credit Card
- 2022 Evangel SHANTUI Earth-moving Machinery SD22 220HP bulldozer with Straight tilting shovel
- 2022 Evangel Shantui Bulldozer Factory price SD22 220HP bulldozer with U blade for sale
- 2022 Evangel China Shantui 220HP bulldozer SD22 with air conditioner for sale
- 2022 Evangel SHANTUI SD42 420HP bulldozer with low price Crawler Bulldozer for sale
- 2022 Evangel Shantui Bulldozer Factory price SD42 420HP bulldozer with U blade for sale
- 2022 Evangel High Performance SHANTUI SD42 Bulldozer 420HP bulldozer with U-blade
Product Description
High Performance SHANTUI SD22 Bulldozer 220HP bulldozer with U-blade
* Chongfa NT855-C280S10 engine features strong power and high efficiency and energy-saving.
* The high reliability power shift transmission, the stable hydraulic torque converter, and two-stage spur gear final drive feature high power transmission efficiency.
* The engine can run normally and reliably under all load conditions and all hot environments required by the user, without overheating.
* It can realize the automatic diagnosis and whole-process monitoring of the malfunctions. The integrally injection molded instrument panel integrates the A/C, electric devices, and instruments, featuring beautiful appearance and high grade.
* The full box-type main frame with application of high performance materials and high strength castings features high carrying capacity against impact load and bendingmoment and the high quality welds guarantee the life cycle of the main frame.
* The semi-rigid suspension traveling system increases the ground area of tracks and improves the traction force of vehicle.
* The ergonomically designed driver seat and armrests can be adjusted easily in vertical and longitudinal directions. The gearshift, steering, and accelerator controls are arranged on the left side with the adoption of flexible shaft structure. The working device controls are arranged on the right side with adoption of servo control system to achieve lighter and more flexible operations and relieve the operating fatigue.
* The standard straight tilting blade features powerful cutting force to handle diversified severe working environments and the large single-shank ripper of adjustable penetrating angle can be use for the ripping of clay and frozen earth as well as the stripping of hard working faces, such as gravel and hardened salt mine.
Length × width × height (mm) (excluding ripper) | 5495×3725×3745 | Operating weight (t) (excluding ripper) | 23.4 |
Engine model | WD12G240E206/NT855-C280S10 | Net power/rated speed (kW/rpm) | 162/1800 |
Ground pressure(Mpa) | 0.077 | Blade type | Straight tilting blade Angle blade U blade Semi-U blade |
Blade capacity(m3) | 6.4 for straight tilting blade 4.7 for angle blade 7.5 for U blade 7.0 for Semi-U blade |
