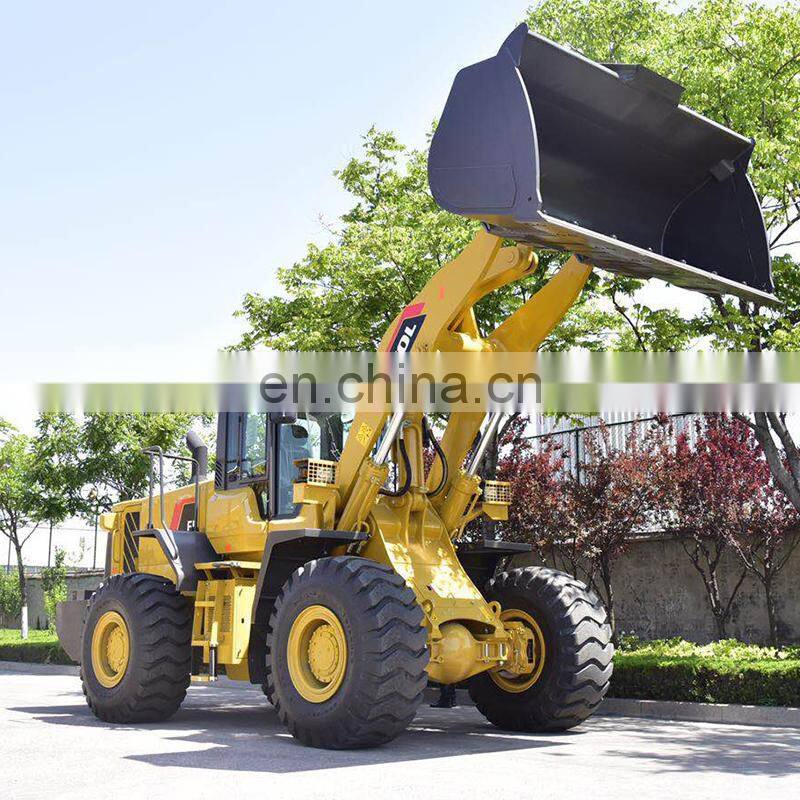

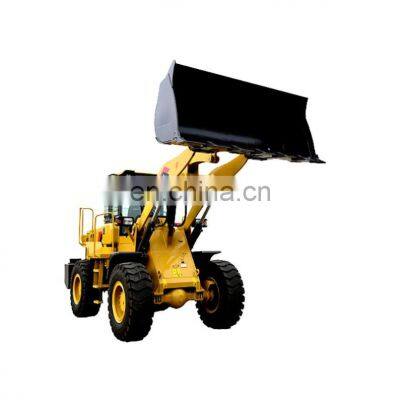

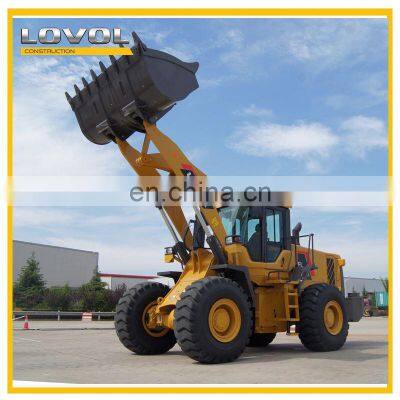

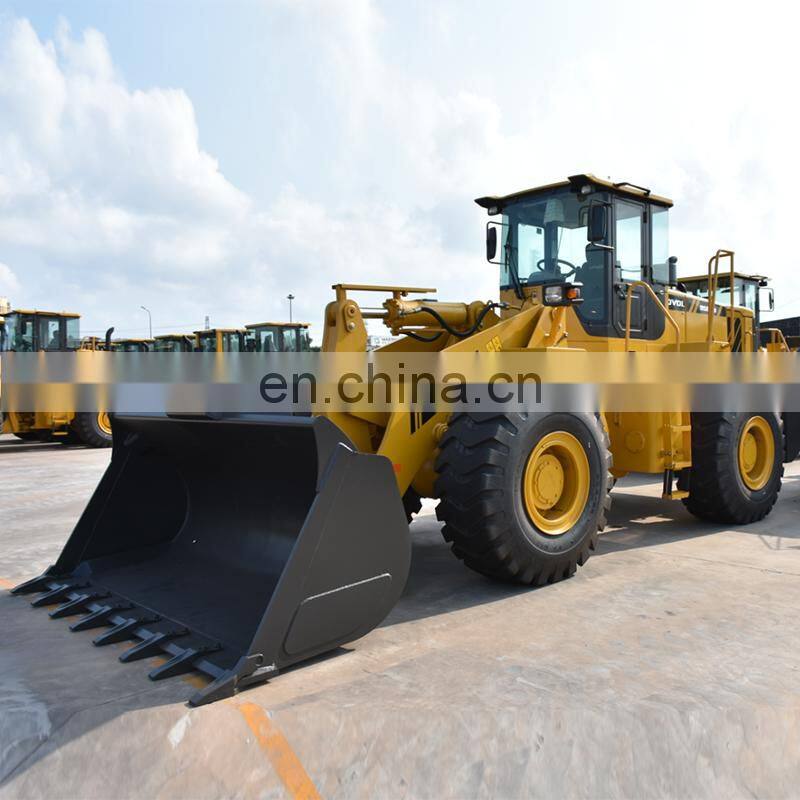

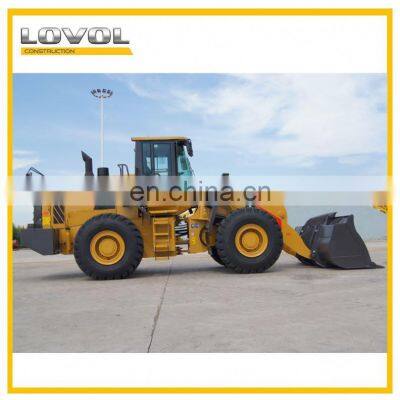

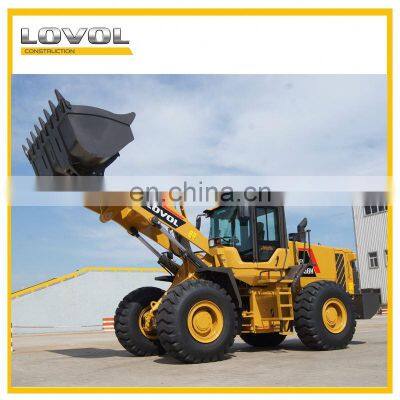

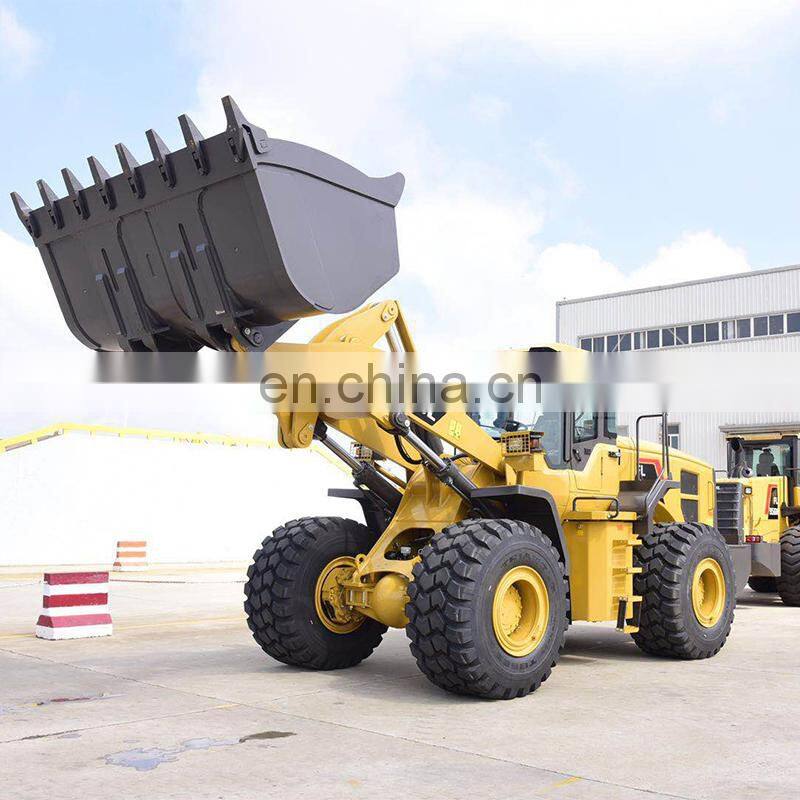

Genuine Parts Oem Belaz Friction Disc Excavator Bulldozer Wheel Loader Forklift Friction Disc
♦ Mainly applied for loading, unloading and transporting work at the construction and road sites, the stations and the ports, suitable for coal, earthwork and ballast.
♦ Standard equipped with WEICHAI WP6G125E22 engine, Hangzhou Powershift transmission, mechanical operation, 1.8 m3 bucket, and A/C cab.
♦ To prolong service life of main structural component, like frame, joints, arms, etc., finite element method is during design stage. By using this method, we develop the model to simulate extreme conditions in order to establish statistical date to improve the reliability constantly.

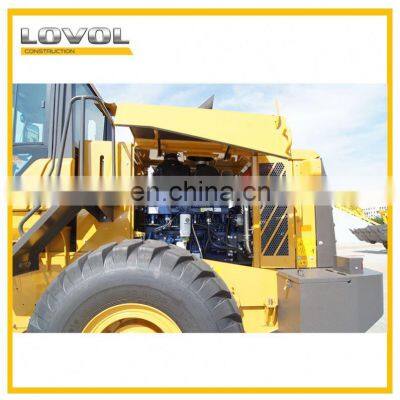

♦ The engine features high power reserve, large torque and strong power, which makes it easy to break and lift hard materials. All the features make it competent to handle harsh applications and guarantee quick and efficient work.
| Main paramater | |
| Operating mass(kg) | 23600 |
|---|---|
| Bucket capacity | 4.5 |
| Rated load(kg) | 7000 |
| Traction(kN) | 192 |
| Digging force(kN) | 210 |
| Gradeability | 29 |
| Unloading height(mm) | 3490 |
| Unloading distance(mm) | 1320 |
| Min. ground diatance(mm) | 503 |
| Wheel tread(mm) | 2280 |
| Wheelbase(mm) | 3500 |
| Bucket outer turning radius(mm) | 7320 |
| Outline distance(mm) | 9150*3200*3380 |
| Engine | |
| Model | Guangxi Cu mins QSL9.3 |
| Max. torque(N·m) | 1190 |
| Rated power(kW) | 180 |
| Rated rotational speed(rpm) | 2200 |
| Running system | |
| Gearbox shift | Front:4 gears Rear:3 gears |
| Max. speed | 37 |
| Type | |
| Ply rating | |
| Steering angle | 37,39 |
| Other | |
| Operating model | Pilot control |
| Sum of three items(s) | 11 |
| Fuel tank(L) | 330 |
| Hydraulic oil tank(L) | 150 |
