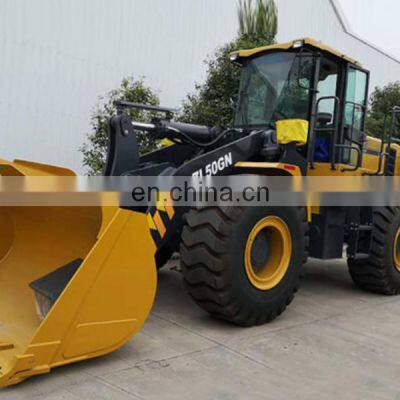

Brand New Zl50gn Wheel Loader China Top 5 Ton Front Wheel Loader With Spare Parts photo-2

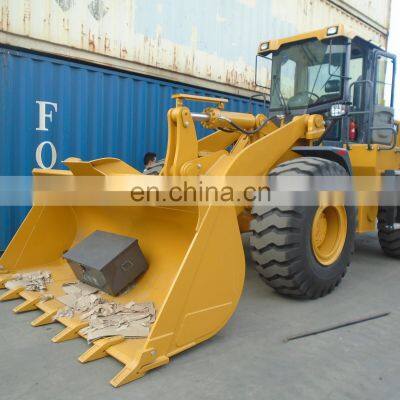

Brand New Zl50gn Wheel Loader China Top 5 Ton Front Wheel Loader With Spare Parts photo-3

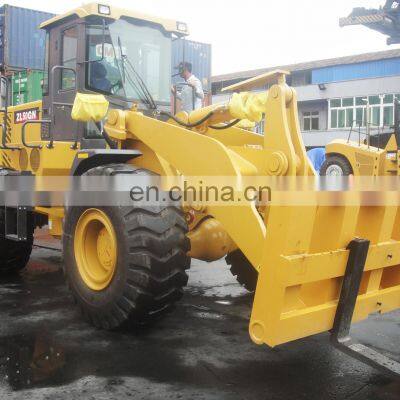

Brand New Zl50gn Wheel Loader China Top 5 Ton Front Wheel Loader With Spare Parts photo-4

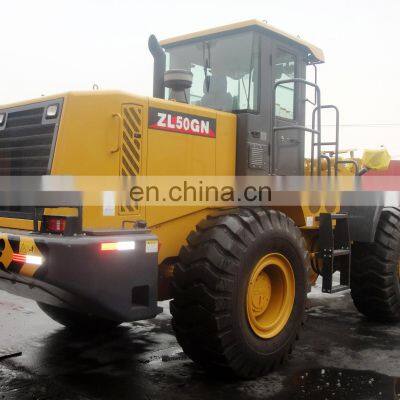

Brand New Zl50gn Wheel Loader China Top 5 Ton Front Wheel Loader With Spare Parts photo-5
Negotiable MOQ: 1 set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Business Type:
Business Service (Transportation, finance, travel, Ads, etc)
Year Established:
2004
Annual Export Value:
US$1 Million - US$1.5 Million
Contact Supplier Request Quote Chat Now
Evangel Industrial (Shanghai) Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Products Description
Brand New Zl50gn Wheel Loader China Top 5 Ton Front Wheel Loader With Spare Parts
Main parameters:
Rated load: 5 ton
Bucket capacity : 2.5~4 M3
Operating weight:17.5 ton
Main configuration:
Weichai/Shangchai Engine/Other brand
162KW * Pilot control * Air conditioner driving cabin * Dry drive axle * Planetary gearbox
Specification
Description
Unit
Parameter value
Rated operating load
kg
5000
Bucket capacity
m³
2.5~4.5
Machine weight
kg
17500±300
Dump clearance at maximum lift
mm
3100~3780
Reach at maximum lift
mm
1100~1220
Wheel base
mm
3300
Tread
mm
2250
Max.breakout force
kN
175±5
Max.horse power
kN
160±5
Hydraulic cycle time-raise
s
≤6
Total hydraulic cycle time
s
≤10.5
Min. turning radius over tyres
mm
5925±50
Articulation angle
°
38
Gradeability
°
30
Tyre size
23.5-25-16PR
Overall machine dimension L×W×H
mm
8225×3016×3515
Model
WD10G220E21
Rated Power
kW
162
Travel Speed
Ⅰ-gear(F/R)
13/17km/h
Ⅱ-gear(F)
41km/h
