High Efficiency Dairy Farm Equipment 4- 8 Discs Rotary Disc Mower
Negotiable
MOQ: 1 set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Business Type:
Other
Year Established:
1991
Annual Export Value:
US$5 Million - US$10 Million
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
High Efficiency Agricultural Efficient 4 Discs Rotors Lawn Mowers, Prairie Rotary Disc Mower Hay MowerNegotiableMOQ: 1 -
50HP Agricultural Tractor With Rotary Disc Hay MowerNegotiableMOQ: 1
-
MAP1404 140hp 4wd Tractor Farm Tractor Chinese Farm TractorsNegotiableMOQ: 1
-
MAP Agricultural Farming 120hp,4x4 Wheel Drive Farm Tractor With Front BucketNegotiableMOQ: 1
-
MAP1304 130hp Farm Agricultural Tractor With Farm Tools 130horsepower Tractor for SaleNegotiableMOQ: 1
Disc mower
Product Description
Product Description
| Specifications and data | ||||||||
| Model | Cutting width | Disc Qty | Disc Speed | Disc Dia. | Speed | Matched power | PTO | Weight |
| (km/hour) | ||||||||
| MAP1670 | 1.67m | 4 | 2900 | 500mm | 4-12KM | 35-55hp | Cat1-2 | 436kg |
| MAP2050 | 2.05m | 5 | 2900 | 500mm | 4-12KM | 40-65hp | Cat1-2 | 487kg |
| MAP2450 | 2.45m | 6 | 2900 | 500mm | 4-12KM | 50-70hp | Cat2 | 590kg |
| MAP2860 | 2.86m | 7 | 2900 | 500mm | 4-12KM | 55-70hp | Cat2 | 629kg |
| MAP3200 | 3.2m | 8 | 2900 | 500mm | 4-12KM | 60-90hp | Cat2 | 707kg |
| Main features |
| 1. It is mainly used for the harvesting of all kinds of herbage. |
| 2. The hay mower is attached to the rear suspension of the tractor and use the PTO to work. |
| 3. The machine has 2 – 8 pieces high-speed rotating knife plates, with two blades on each blade, and the high-speed operation reaches 1-2 hectares per hour, the productivity is very high. |
| 4. The rotation of knife plates is driven by the gear drive instead of the traditional belt transmission,which makes the job more stable, the failure rate is low and the maintenance cost is low. |
| 5. use of spring suspension and the rotation of the belt, the knife beam is low, easy to rise and fall, which can be cut with the ground, the cutting stubble is low, and the surface has good imitation ability. |
| 6. The blades can be punched back to avoid damage |
|
7. The lawn mower relies on the rotating force of the turntable to concentrate the grass in the middle position for easy collection. |
| Advantage |
| 1. Disc mower with different discs, also with various of cutting width, from 1.3m-2.55m, cutting grasses into 2-6 lines. |
| 2. Disc mower widely used in large pastures, usually cut grass, hay, alfalfa, corn stalk, etc. |
| 3. Disc mower cuts through heavy, high crops without wrapping or plugging, as well as for light thin grass. |
| 4. Disc mower can be raised quickly for turning or transport without adjusting the 3 point hitch. |
| 5.Disc mower suitable for wide range terrins and contours, even uneven and rochy ground. |

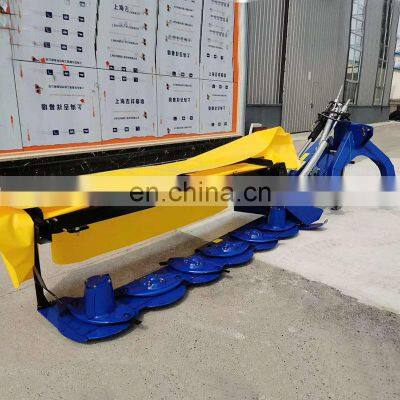

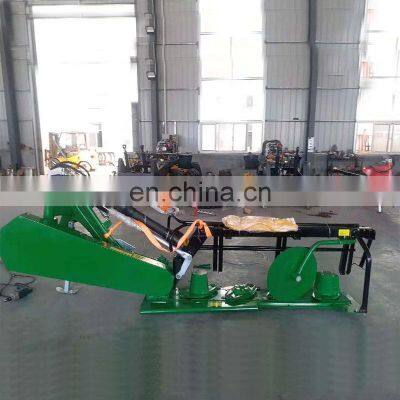

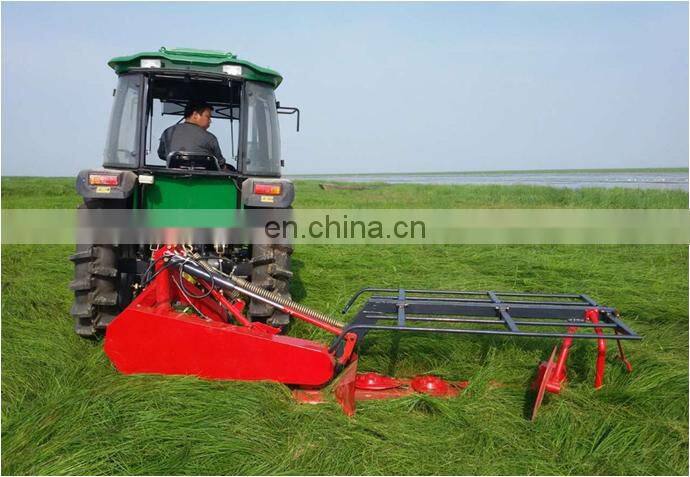

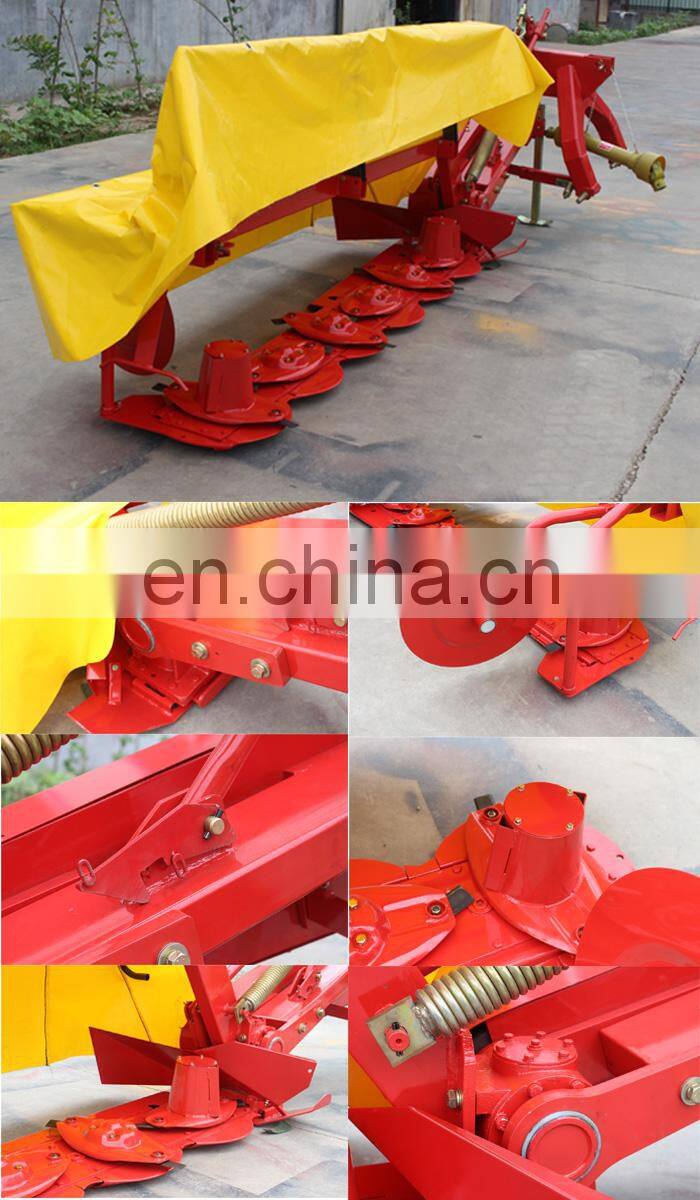

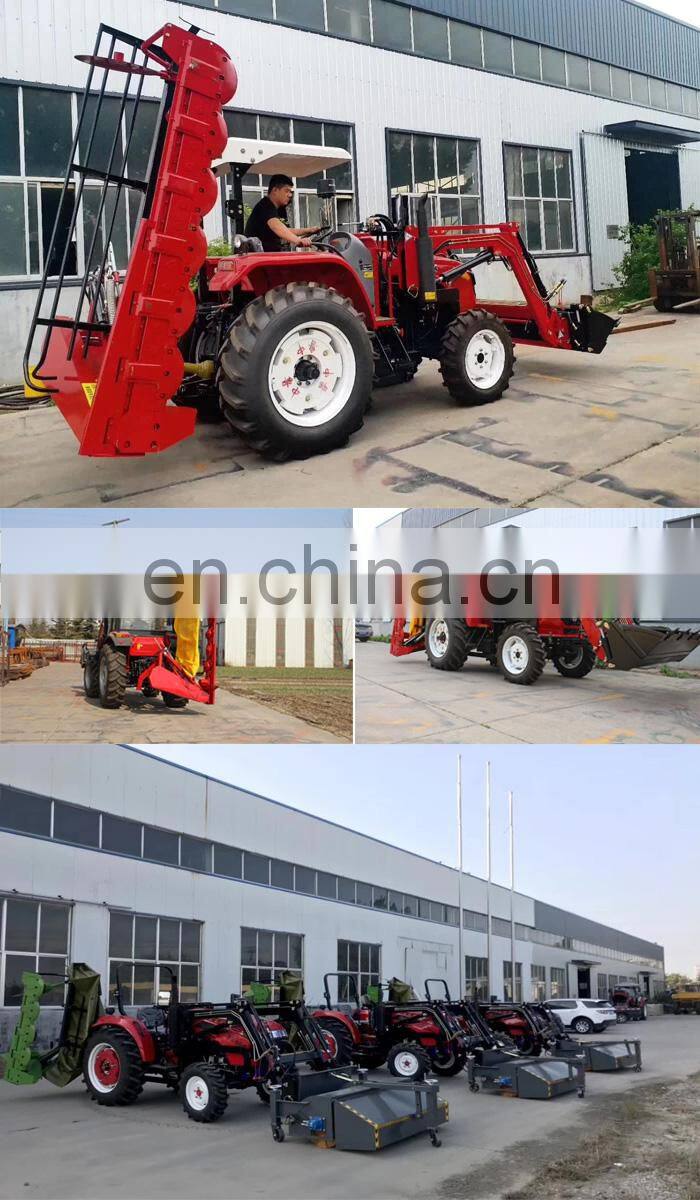

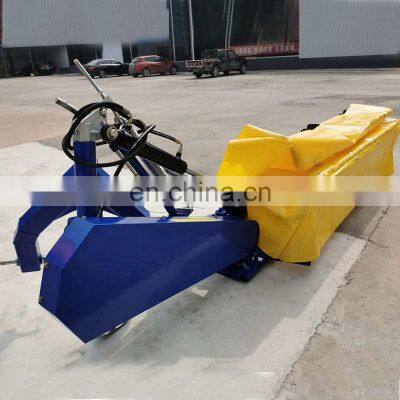

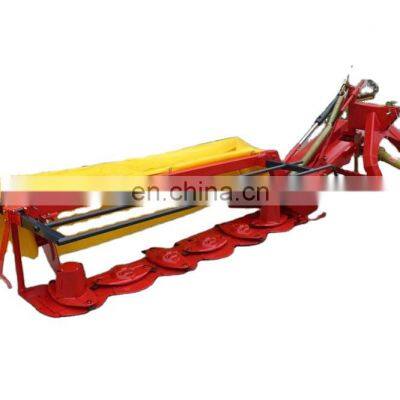

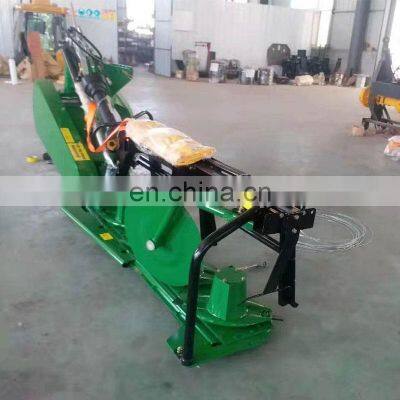

Details Pictures
