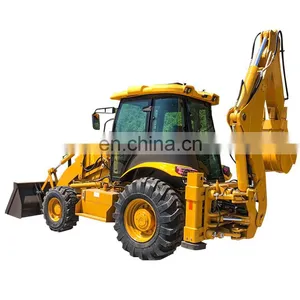

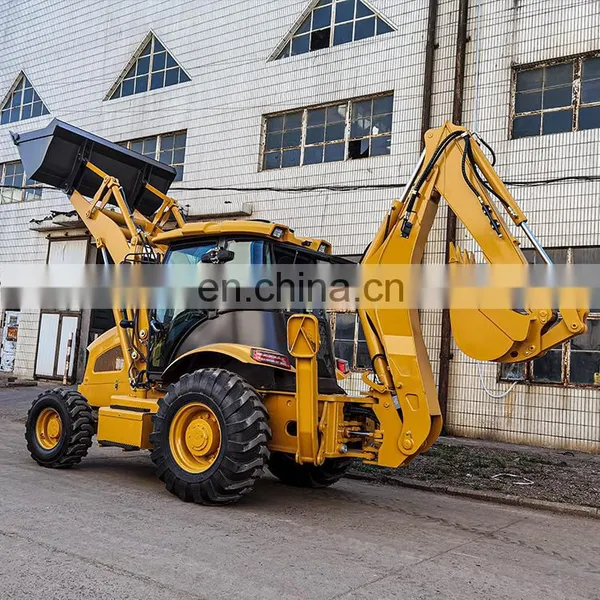

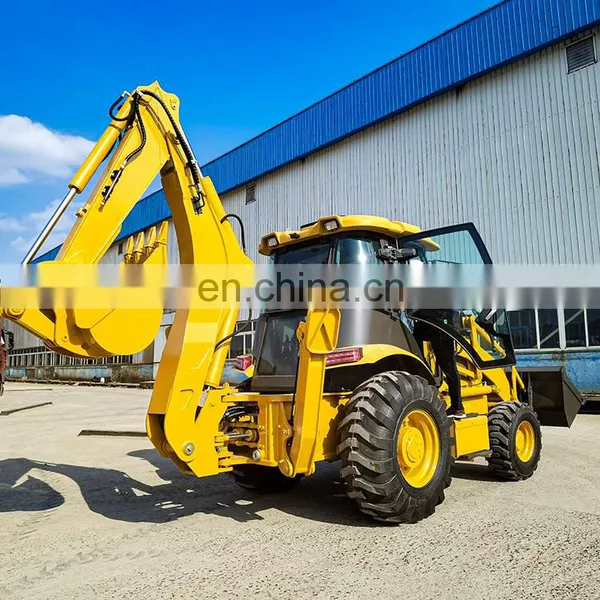

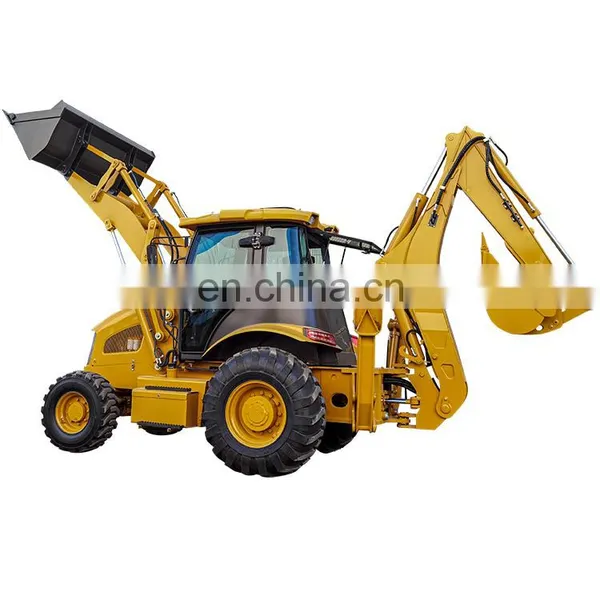

Mining Mini Wheel Loader New Small Backhoe Loader From China
Negotiable
MOQ: 1 set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Business Type:
Other
Year Established:
1991
Annual Export Value:
US$5 Million - US$10 Million
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
High Quality Articulated Backhoe Loader Price Excavator Wheel BackhoeNegotiableMOQ: 1 -
388 Compact Backhoe Loader Price Backhoe Excavator Loader With CE CertificateNegotiableMOQ: 1
-
Factory Directly Excavator Loader Mini Tractor Backhoe Loader With PriceNegotiableMOQ: 1
-
Multifunctional 2.5ton High Effciency Backhoe Loader With Hydraulic Hammer for SaleNegotiableMOQ: 1
-
Cheap Price 388 Mining Use Backhoe Loader ChinaNegotiableMOQ: 1
mining mini wheel loader new small backhoe loader from china
Product Description
Performance and characteristic:
The specification of 2.5ton backhoe loader 388 |
||||
Transport Dimension |
Overall Operating Weight |
8200KG |
||
mm L*W*H |
6230×2365×3752 |
|||
Wheel base |
2200mm |
|||
Min. Ground Clearance |
300mm |
|||
Bucket Capacity |
1.0m3 |
|||
Breakout Force |
38KN |
|||
Loading Lifting Capacity |
2500KG |
|||
Bucket Dumping Height |
2650mm |
|||
Bucket Dumping Distance |
1025mm |
|||
Digging Depth |
52mm |
|||
Backhoe Capacity |
0.3 m3 |
|||
Max. Digging Depth |
4085mm |
|||
Swing Angle of Excavator Grab |
190o |
|||
Max. Pulling Force |
39KN |
|||
Engine |
Model |
YC4A105Z-T20 |
||
Type |
turbocharging four-stroke |
|||
Cylinder-Inside Diameter*Stroke |
4—105 |
|||
Rated Power |
75KW/100HP |
|||
Rated Speed |
2400r/min |
|||
Min. Fuel Consumption |
235g/kw.h |
|||
Max.Torque |
310NM |
|||
Displacement |
4.3L |
|||
Steering System |
Model of Steering Device |
BZZ5-250 |
||
Steering Angle |
±36 o |
|||
Min. turning radius |
6581mm |
|||
Pressure of the system |
12Mpa |
|||
Axle |
Manufacturer |
Feicheng Axle Factory |
||
Main Transmission Type |
Double Reduction |
|||
Final Reducer |
Single Stage Final Reducer |
|||
Rated Loader of Axle |
4/18.5t |
|||
Transmission System |
||||
Torque Converter |
Model |
YJ280 |
||
Type |
Single-stage Three Elements |
|||
Max. Efficiency |
84.40% |
|||
Inlet Pressure |
0.4Mpa—0.55 Mpa |
|||
Outlet Pressure |
1.2Mpa—1.5 Mpa |
|||
Cooling Method |
Oil-cooling Pressure Circulation |
|||
Gearbox |
Type |
Fixed Shaft Power Transmission |
||
Oil Pressure of Clutch |
1373Kpa—1569 Kpa |
|||
Gears |
Two Gears Ahead, Two Gears Astern |
|||
Max.Speed |
22Km/h |
|||
Tyre |
Model |
14-17.5/19.5L-24 |
||
Pressure of Front wheel |
0.22 Mpa |
|||
Pressure of Back Wheel |
0.22 Mpa |
|||
Brake System |
Service Brake |
Air Over Oil Caliper Brake |
||
External Type |
||||
Self-regulation |
||||
Self-balance |
||||
Emergency Brake |
Operation Power Implementing brake |
|||
Manual Operation Power Terminating Brake |
||||
Hydraulic System |
Digging Power of Excavator Grab |
46.5KN |
||
Digging Power of Dipper |
31KN |
|||
Bucket Lifting Time |
5.4S |
|||
Bucket Lowering Time |
3.1S |
|||
Bucket Discharge Time |
2.0S |
|||
*Chinese name " both ends is busy "
The advanced fashion front-end loading and back-end excavation structure,
* you only need to rotate the seat to change the role from loader to the excavator.
* you only need to rotate the seat to change the role from loader to the excavator.
*Applications:
It is a multi-use machine
Backhoe Loaders are mainly used for urban and rural road construction and maintenance, cable casting , power and airport projects,
municipal construction, water conservancy construction, rural housing construction.etc
Cabin
Cab can be replaced independently, it connects with excavator frame by four damping devices, backhoe side turned to the big window
structure is conducive to broadening their horizons and ventilation.
It is a multi-use machine
Backhoe Loaders are mainly used for urban and rural road construction and maintenance, cable casting , power and airport projects,
municipal construction, water conservancy construction, rural housing construction.etc
Cabin
Cab can be replaced independently, it connects with excavator frame by four damping devices, backhoe side turned to the big window
structure is conducive to broadening their horizons and ventilation.
