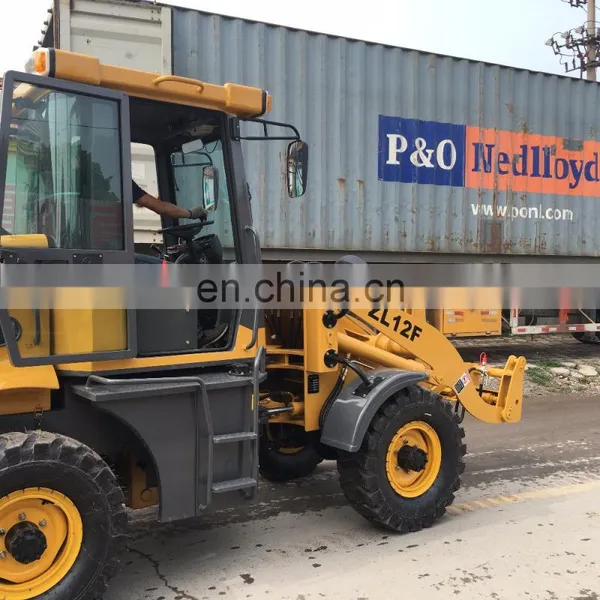

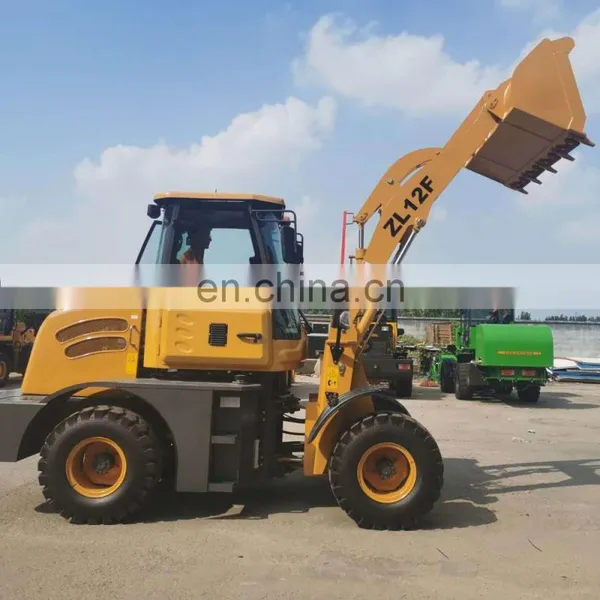

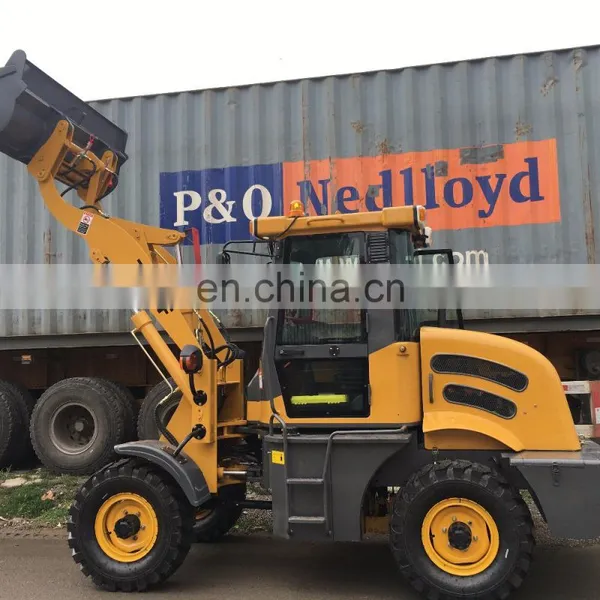

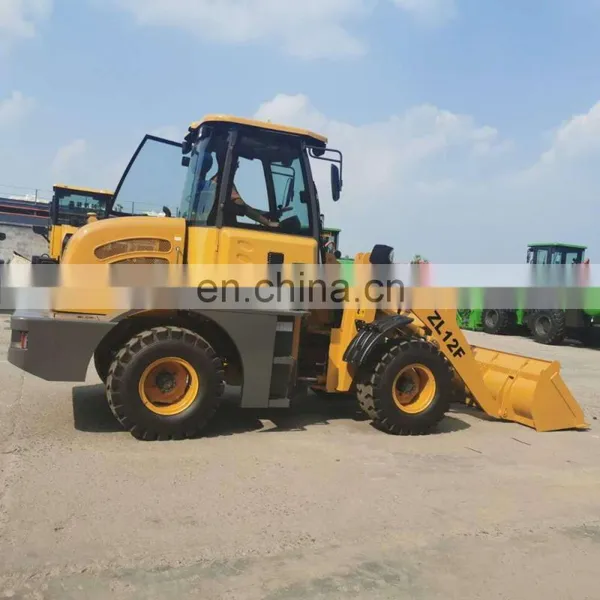

Help CenterChina Cheap Mini Compact ZL12 Farm Loader With Euro 5 Engine
Related Products
-
Light Construction Machinery ZL12 Mini Shovel Wheel LoaderNegotiableMOQ: 1 -
Wheel Loader 6 Ton Cheap ZL60 Mini Shovel CE Wheel LoaderNegotiableMOQ: 1
-
0.8ton CE Shovel Wheel Shovel Loader ZL08FNegotiableMOQ: 1
-
Loader 6 Ton Cheap Wheel Loader ZL60 CE Wheel LoaderNegotiableMOQ: 1
-
Mini Cheap Chinese 4 Wheel Drive Articulated Small 0.8 Ton Mini Wheel Loader ZL908 With CE CertificateNegotiableMOQ: 1
Real Factory Supplies loader for sale Customer Design is Welcome and Available.
China Mini Wheel Loader loader for sale
|
Overall Dimension |
||
|
1 |
Length(with bucket on ground) |
4800(mm) |
|
2. |
Width(to outside of wheels) |
1730(mm) |
|
3 |
Bucket width |
1700(mm) |
|
4 |
Height(To the top of the cab) |
2530(mm) |
|
5 |
Wheel base |
2150(mm) |
|
6 |
Tread |
1320(mm) |
|
7 |
Min. ground clearance |
200(mm) |
|
Main Technical Specification |
||
|
1 |
Rated load |
1200(Kg) |
|
2 |
Operating weight |
2500KG |
|
3 |
Rated bucket capacity |
0.5(CBM) |
|
4 |
Bucket type |
Heavy-duty bolt teeth |
|
5 |
Max. breakout force |
36kN |
|
6 |
Max. dump clearance |
2650(mm) |
|
7 |
Min. turning radius |
4500mm |
|
8 |
Driving system |
Gear box |
|
9 |
Traveling speed(Km/h) |
2 forward and 2 reverse |
|
|
(1) 1st gear forward |
5.75 |
|
|
(2) 2nd gear forward |
23.86 |
|
|
(3) 1st gear reverse 5.85 |
5.85 |
|
|
(3) 2nd gear reverse |
24 |
|
Diesel engine |
||
|
1 |
Model |
Changchai 490 |
|
2 |
Type |
In-line arrangement. Water cooling |
|
3 |
Rated output |
29 (KW) |
|
4 |
Inter-bore of cylinder/stroke |
85 (mm) |
|
5 |
Rated speed |
2300(r/min) |
|
6 |
Max. Torque |
275(N.M) |
|
7 |
Starting type |
Electric |
|
8 |
Min. specific fuel consumption |
230(g/Kw.h) |
|
9 |
Net weight |
240(kg) |
|
Transmission System |
||
|
(a.)Transmission case |
||
|
1 |
Model |
MAP |
|
2 |
Type |
Power shift, spur gear constantly in mesh |
|
3 |
Gear shift position |
2 Forward and 2 reverse gears |
|
(b.)Axle and Tire |
||
|
1 |
Type of main reducer |
spiral bevel gear, single stage |
|
2 |
Size of tire |
1200-16 |
|
Brake system |
||
|
1 |
Service brake |
4 wheel hydraulic brake |
|
2 |
Parking brake |
Hand operated |
|
Steering System |
||
|
1 |
Type |
Middle articulated frame with hydraulic power steering |
Our Services
Quality Assurance
- Have established and implemented a standard procedure for quality management system and product certification.
- QA/QC inspectors work independently form the production lines
- Keep its supplier assessment reports and be traced by lot identification to the appropriate raw material test reports
- A procedure to conducting random inspection after final packaging.
- A clear procedure for handling customer feedback. “7 Days Guarantee” for customer renewing the consumable accessories.
- Tool case and partly consumable accessories attached with shipment meanwhile
- After-sales and Quality Warrant Contact for every purchase order.
