ZL06F 600KGS Wheel Loader
Product Description
| Wheel loader model | ZL06F | |
| Specification | overall weight(kg) | 3800 |
| L×W×H(mm) | 4700×1200×2280mm | |
| rated bucket capacity | 0.4 CBM | |
| Rated load(kg) | 800 | |
| dump height (mm) | 2350 | |
| Dump distance | 700mm | |
| Wheelbase | 2100mm | |
| Thread | 1400/1405mm | |
| Total time | 11s | |
| Engine | Model | Changchai390 |
| Type | direct injection, horizontal, water-cooled,4 stroks,2cylinder | |
| Rated power(KW) | 25KW | |
| Rated speed(r/min) | 2400 | |
| Working system | Transmission System | Manual clutch |
| Distribution of work valve | DF15.2C | |
| Working pump | CBF32 | |
| Steering system | Type | Articulated hydraulic steering |
| Max. turning angle | 350±1 | |
| Min turning radius(mm) | 3400 | |
| Tires | Standard tires | 750-16 |
| Optional tires | 28X9-15 tires, 31*15.5-15 | |
We also produce implements for the wheel loader,such as snow blade,snow bucket,pallet fork,grapple fork,4 in 1 bucket,snoe blower, grass fork, road sweepingmachine, auger,etc.With the implements ,the wheel loader can do many kinds of work.

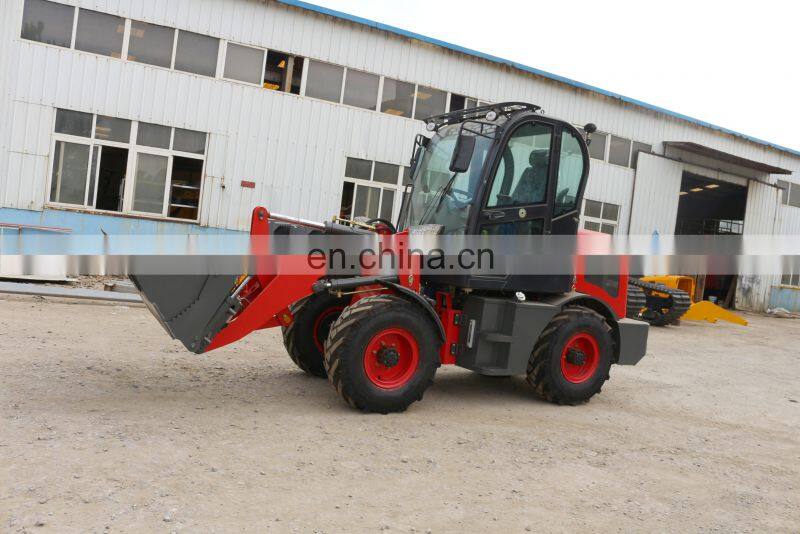

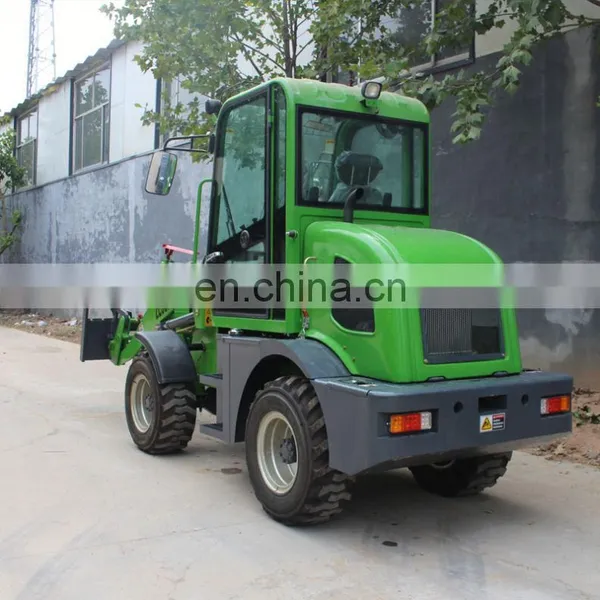

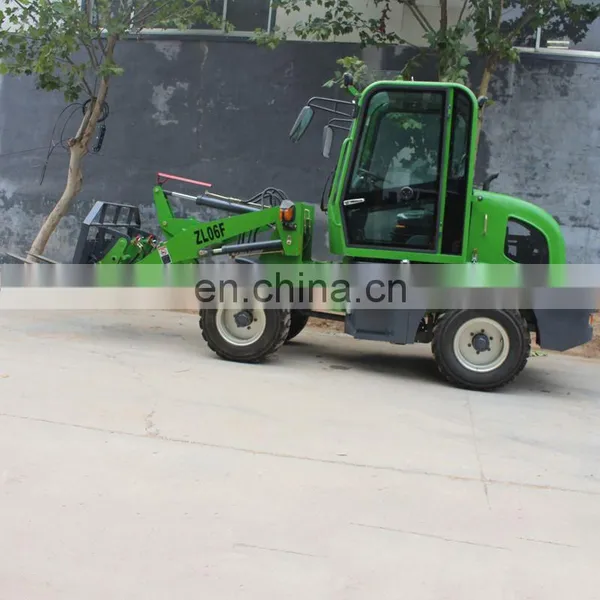

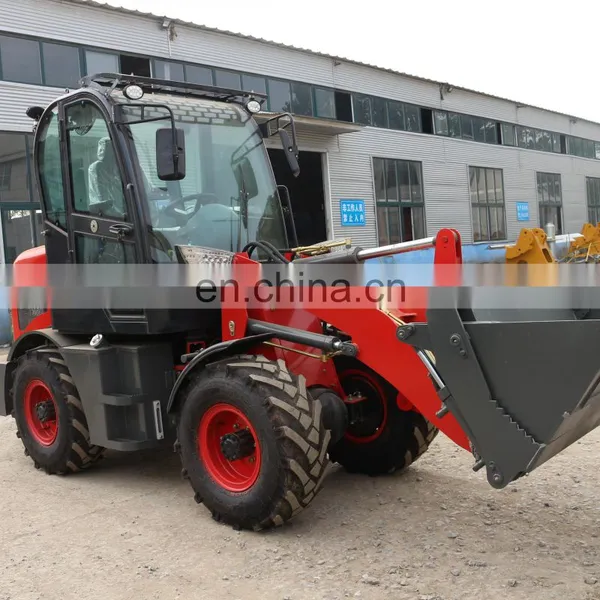

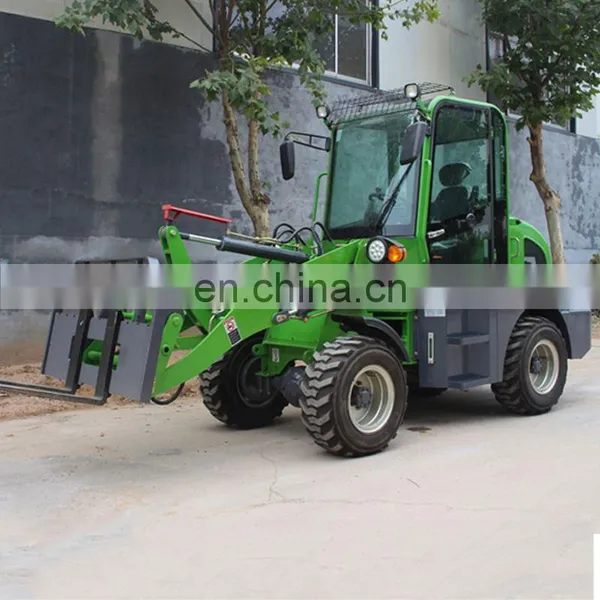

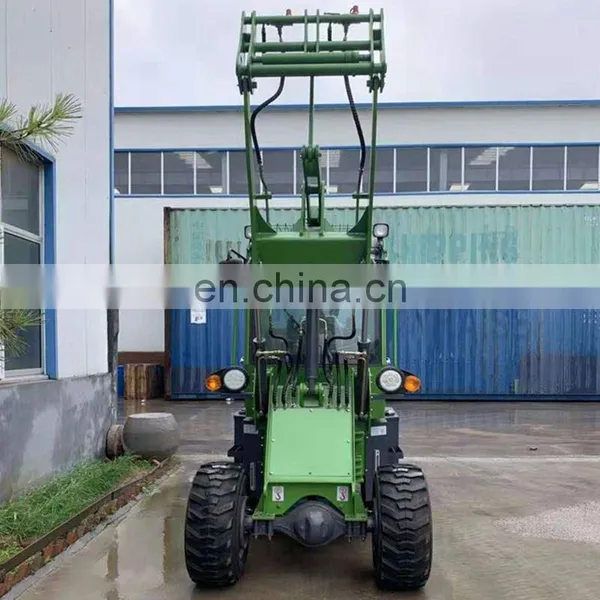

The details of wheel loader

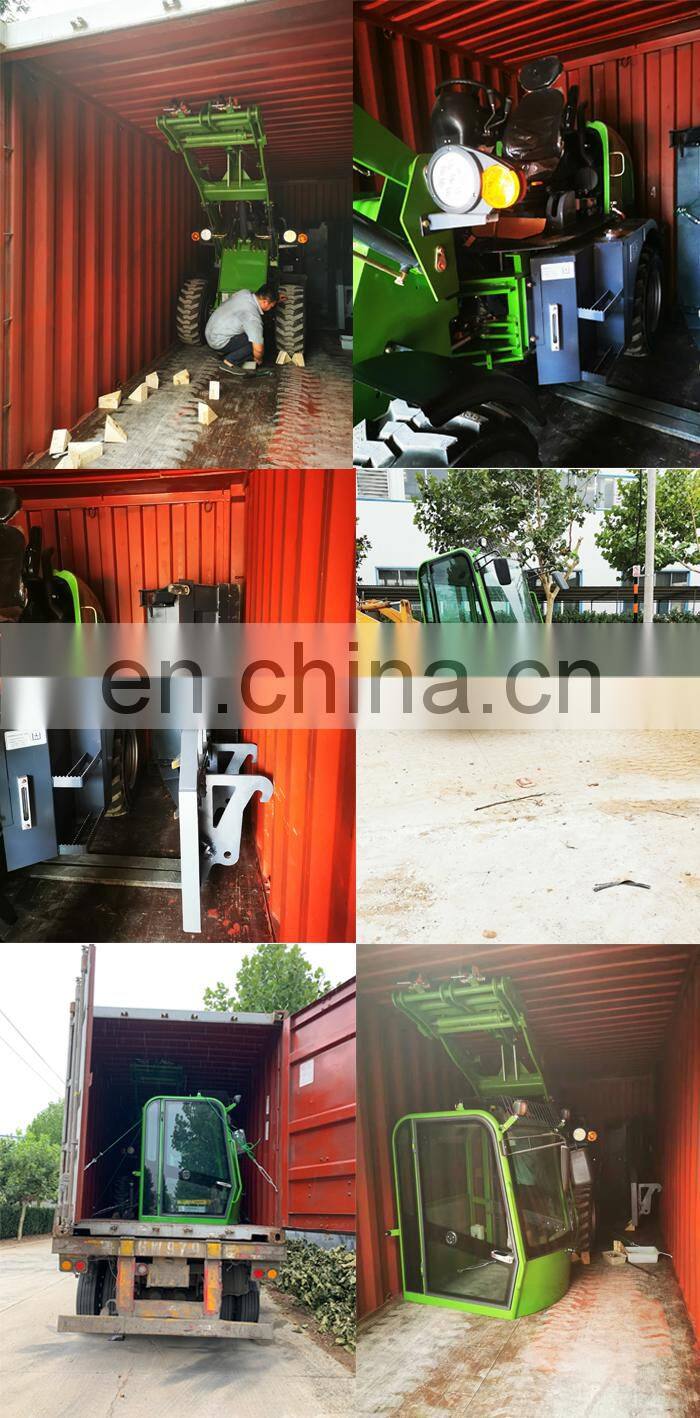

Packaging & Shipping
Company Information
Weifang MAP Import and Export Co,Ltd . was founded in 2006.We are a professional manufacture and chain supplier specializing in construction machinery and agricultural equipments.70% of our products are made for export.We keep diverse products according to customer and market demand.We produce and supply truck crane, site dumpers,wheel loaders, tractors,implements, wheel excavators, crawler excavators,backhoe loaders,forklifts,road rollers,light towers,concrete mixers,plate compactor,impact tampers, road cutters,concrete vibrators,and so on.
