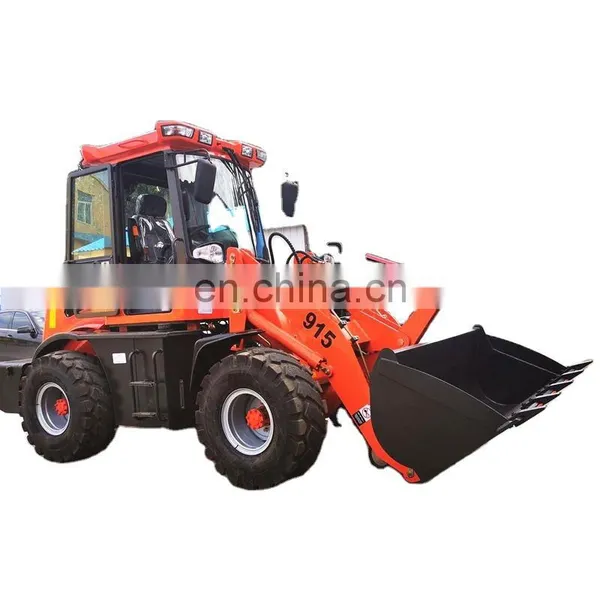

1.5 Ton Loader Heavy Equipment Mini Wheel Loader With CE

1.5 Ton Loader Heavy Equipment Mini Wheel Loader With CE thumbnail-1
1.5 Ton Loader Heavy Equipment Mini Wheel Loader With CE thumbnail-2
1.5 Ton Loader Heavy Equipment Mini Wheel Loader With CE thumbnail-3
1.5 Ton Loader Heavy Equipment Mini Wheel Loader With CE thumbnail-4
1.5 Ton Loader Heavy Equipment Mini Wheel Loader With CE thumbnail-5
1.5 Ton Loader Heavy Equipment Mini Wheel Loader With CE photo-1

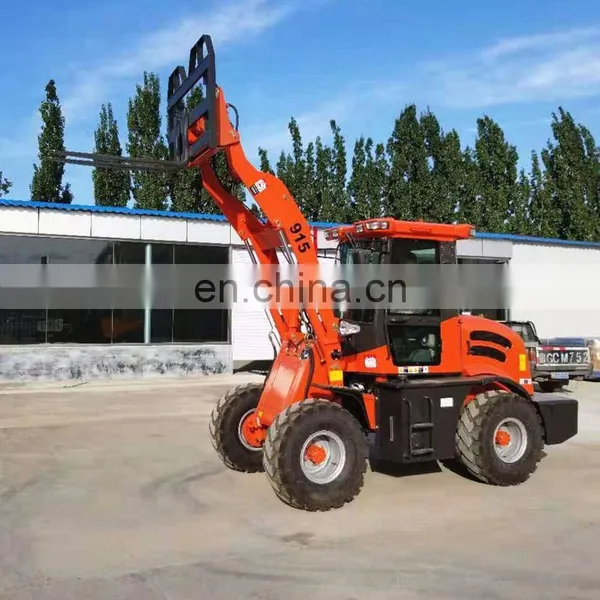

1.5 Ton Loader Heavy Equipment Mini Wheel Loader With CE photo-2

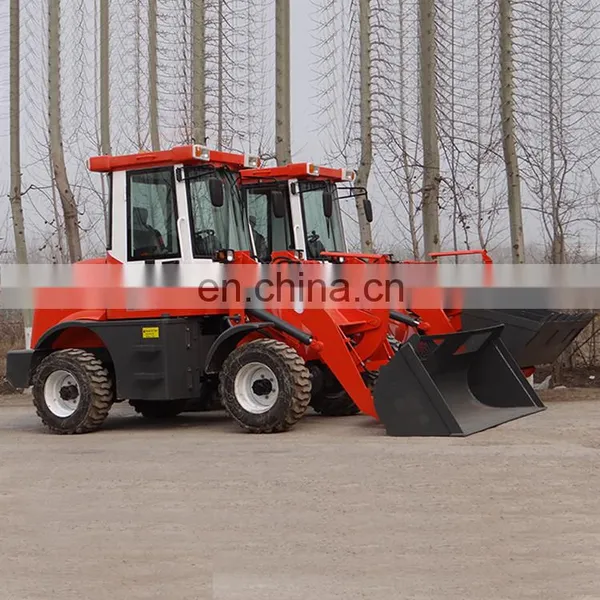

1.5 Ton Loader Heavy Equipment Mini Wheel Loader With CE photo-3

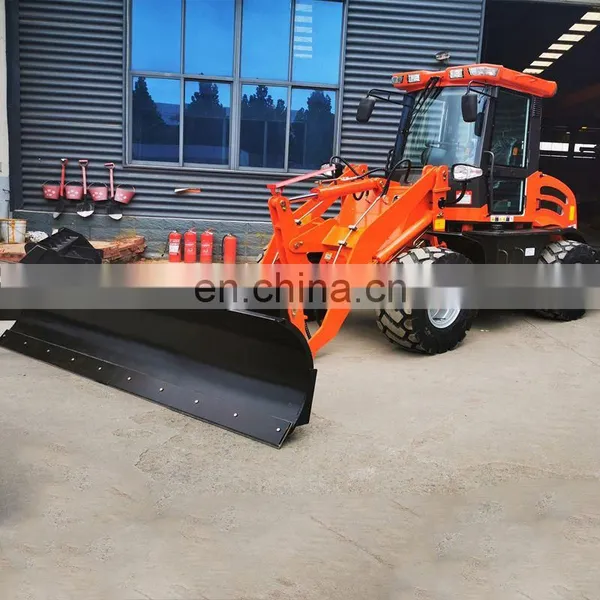

1.5 Ton Loader Heavy Equipment Mini Wheel Loader With CE photo-4

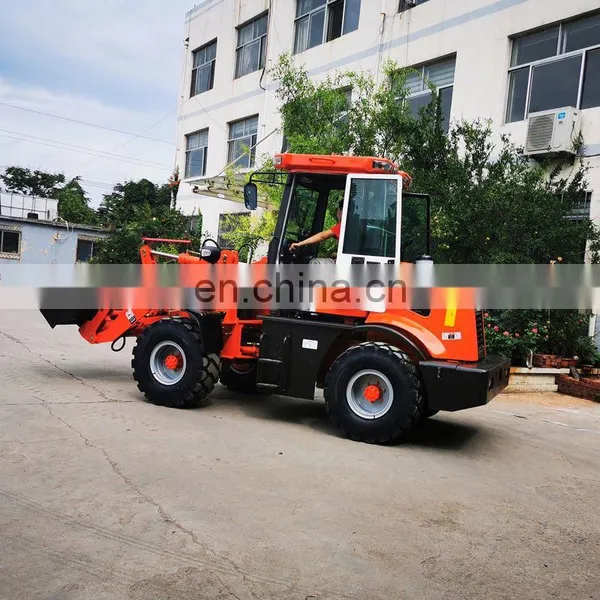

1.5 Ton Loader Heavy Equipment Mini Wheel Loader With CE photo-5
Negotiable MOQ: 1 set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Business Type:
Other
Year Established:
1991
Annual Export Value:
US$5 Million - US$10 Million
Contact Supplier Request Quote Chat Now
Weifang Map Import And Export Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us



1.5 ton Loader heavy Equipment mini  wheel loader with CE

1.5 ton Loader heavy Equipment mini wheel loader with CE

Product Description

 Wheel loader 915 specifications

1.5 ton Loader heavy Equipment mini wheel loader with CE



Overall Dimension

1

Length(with bucket on ground)

4900(mm)

2.

Width(to outside of wheels)

1830(mm)

3

Bucket width

1700(mm)

4

Height(To the top of the cab)

26500(mm)

5

Wheel base

2060(mm)

6

Tread

1400(mm)

7

Min. ground clearance

210(mm)

Main Technical Specification

1

Rated load

1500(Kg)

2

Operating weight

3200KG

3

Rated bucket capacity

0.5 (CBM)

4

Bucket type

Heavy-duty bolt teeth

5

Max. breakout force

36kN

6

Max. dump clearance

2650(mm)

7

Min. turning radius

4500mm

8

Driving system

Hydraulic converter

9

Traveling speed(Km/h)

2 forward and 2 reverse



(1) 1st gear forward

5.75



(2) 2nd gear forward

23.86



(3) 1st gear reverse 5.85

5.85



(3) 2nd gear reverse

24

Diesel engine

1

 Model

4DW91

2

Type

In-line arrangement. Water cooling

3

Rated output

33 (kW)

4

Inter-bore of cylinder/stroke

95 (mm)

5

Rated speed

2300(r/min)

6

Max. Torque

275(N.M)

7

Starting type

Electric

8

Min. fuel consumption

230(g/Kw.h)

9

Net weight

240(kg)

Transmission System

Torque Converter

1

 Model

YJ240

2

Type

Fixed-spindle power shift

3

Cooling type

Pressure oil circulating

Transmission case

1

Model

MAP915

2

Type

Power shift, spur gear constantly in mesh

3

Gear shift position

2 Forward and 2 reverse gears

Axle and Tire

1

Type of main reducer

spiral bevel gear, single stage

2

Size of tire

12-16.5

Brake system

1

Service brake

4 wheel hydraulic brake

2

Parking brake

Hand operated

Steering  System

1

Type

Middle articulated frame with hydraulic power steering



 1.5 ton Loader heavy Equipment mini wheel loader with CE



Details Pictures

Details Pictures

 1.5 ton Loader heavy Equipment mini wheel loader with CE1.5 ton Loader heavy Equipment mini wheel loader with CE1.5 ton Loader heavy Equipment mini wheel loader with CE1.5 ton Loader heavy Equipment mini wheel loader with CE1.5 ton Loader heavy Equipment mini wheel loader with CE1.5 ton Loader heavy Equipment mini wheel loader with CE1.5 ton Loader heavy Equipment mini wheel loader with CE1.5 ton Loader heavy Equipment mini wheel loader with CE

Related Products

Related Products

3 Ton Mini Dumper                         5 Ton 180° Dumper                         10Ton Heavy Duty Dumper

 1.5 ton Loader heavy Equipment mini wheel loader with CE        1.5 ton Loader heavy Equipment mini wheel loader with CE        1.5 ton Loader heavy Equipment mini wheel loader with CE



0.8 Ton Mini Wheel Loader             1.6 Ton Wheel Loader                   2.0 Ton Wheel Loader

1.5 ton Loader heavy Equipment mini wheel loader with CE            1.5 ton Loader heavy Equipment mini wheel loader with CE           1.5 ton Loader heavy Equipment mini wheel loader with CE



50HP tractor with front loader    70HP Tractor With Backhoe           90HP Tractor With disc mover

1.5 ton Loader heavy Equipment mini wheel loader with CE          1.5 ton Loader heavy Equipment mini wheel loader with CE             1.5 ton Loader heavy Equipment mini wheel loader with CE 1.5 ton Loader heavy Equipment mini wheel loader with CE1.5 ton Loader heavy Equipment mini wheel loader with CE1.5 ton Loader heavy Equipment mini wheel loader with CE1.5 ton Loader heavy Equipment mini wheel loader with CE1.5 ton Loader heavy Equipment mini wheel loader with CE1.5 ton Loader heavy Equipment mini wheel loader with CE



Company Information

Company Information

1.5 ton Loader heavy Equipment mini wheel loader with CE

Weifang MAP Import and Export Co,Ltd . was founded in 2006.We are a professional manufacture and chain supplier specializing in construction machinery and agricultural equipments.70% of our products are made for export.We keep diverse products according to customer and market demand.We produce and supply truck crane, site dumpers,wheel loaders, tractors,implements, wheel excavators, crawler excavators,backhoe loaders,forklifts,road rollers,light towers,concrete mixers,plate compactor,impact tampers, road cutters,concrete vibrators,and so on.
