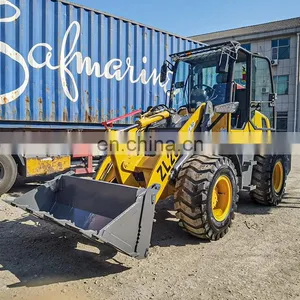

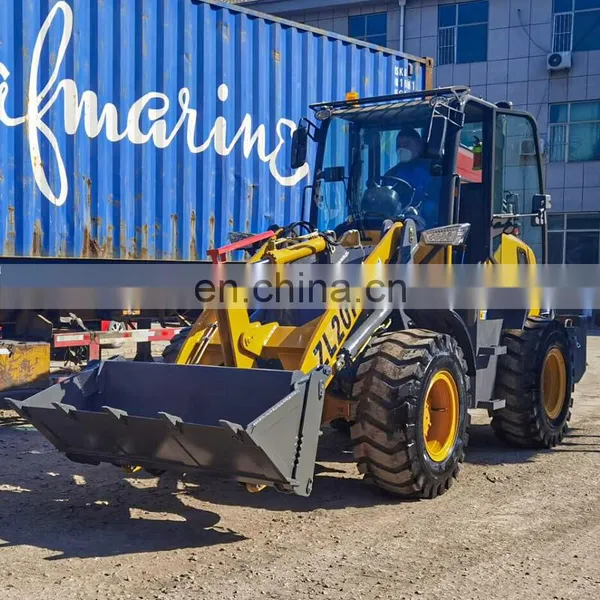

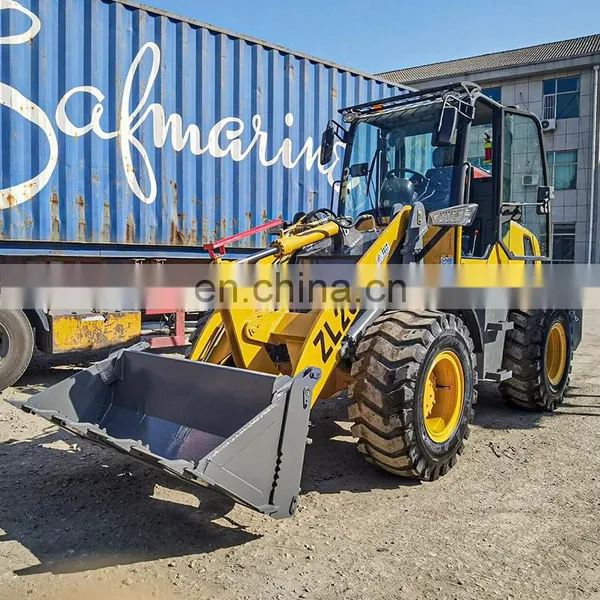

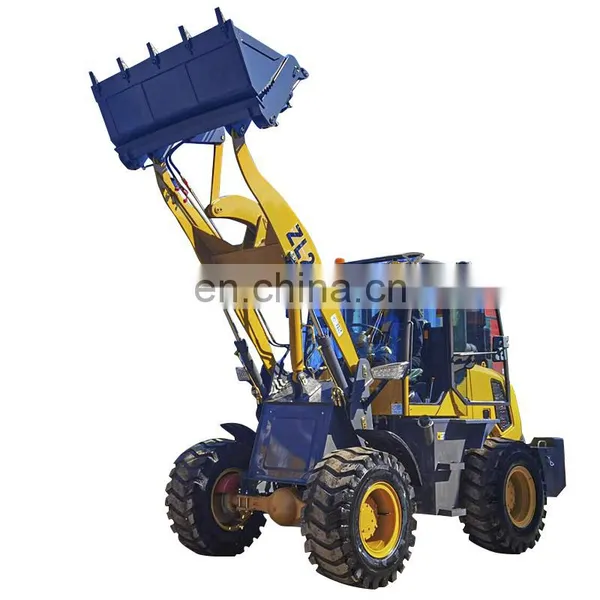

Hydraulic china small 2.2 ton1.1m3 wheel loader mini front end loader

Name: Hydraulic china small 2.2 ton1.1m3 wheel loader mini front end loader
Price: Negotiable

FOB Price

Negotiable

1 (Min.Order)

Supply Ability 1000 per Month
Payment Terms:T/T Credit Card

Request Sample Customized Request Download Product Catalog

Contact Now

Get lowest price Inquiry Basket

Product Description

Hydraulic wheel loader ZL20F cummins engine 2/1.8 ton wheel loader with pilot control hydraulics with good quality

Item	Specifications
Length(with bucket on ground)	5850(mm)
Width(to outside of wheels)	2050(mm)
Height(To the top of the cab)	2860(mm)
Wheel base	2400(mm)
Tread	1640(mm)
Min. ground clearance	310(mm)
Rated load	2000(Kg)
Operating weight	5800KG
Rated bucket capacity	1.2(CBM)
Bucket type	Heavy-duty bolt teeth
Max. breakout force	51kN
Max. dump clearance	2950(mm)
Min. turning radius	5251mm
Driving system	Hydraulic converter
Traveling speed(Km/h)	2 forward and 2 reverse
Model	YTO 4108/WeiChai 4105
Type	In-line arrangement. Water cooling
Rated output	60(kW)/58KW
Inter-bore of cylinder/stroke	105×125mm
Rated speed	2400(r/min)
Max. Torque	275(N.M)
Starting type	Electric
Min. specific fuel consumption	235(g/Kw.h)

1.How can I place order?1.How can I place order? A: You can contact us by email about your order details, or place order on line. 2.How can I pay you? A: After you confirm our PI, we will request you to pay. T/T or start order from Alibaba trade assurance 3. Are you factory supplier? A: Yes, we are real factory supplier for over10years, own a super technical team to serve adjusting design for customers 4.How many tons site dumper do you produce ? A:We are specilized in producing site dumper cover 1ton to 10tons. Model:FCY10, FCY20, FCY30, FCY50, FCY70, FCY100.

5. Which brand engine do you have for site dumpers? A:We company choose good quality engine for site dumpers, Changchai, Xichai, Weichai Power engine / cummins engine/ Deutz diesel engine and so on optional. 6. What's the order procedure? A: First we discuss order details, production details by email or TM.Then we issue you a PI for your confirmation.You will be requested to do prepaid full payment or deposit before we go into production.After we get the deposit, we start to process the order.We usually need 7-15 days if we don't have the items in stock.Before production has been finished,we will contact you for shipment details, and the balance payment.After payment has been settled, we start to prepare the shipment for you. More details please ask us online or send inquiry to us,we will answer first time.
