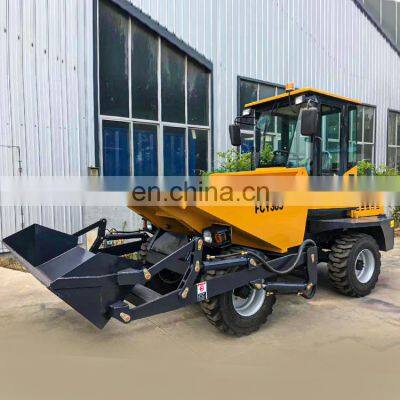

3ton CE Concrete Articulated Mini Site Dumper Tipper With Front End Loader photo-3

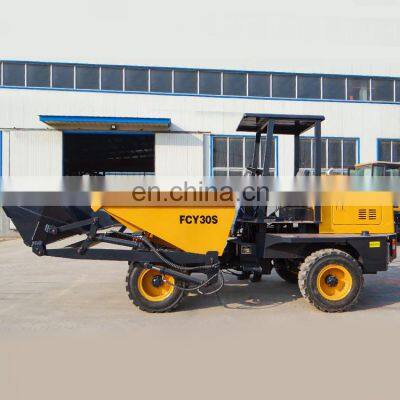

3ton CE Concrete Articulated Mini Site Dumper Tipper With Front End Loader photo-4

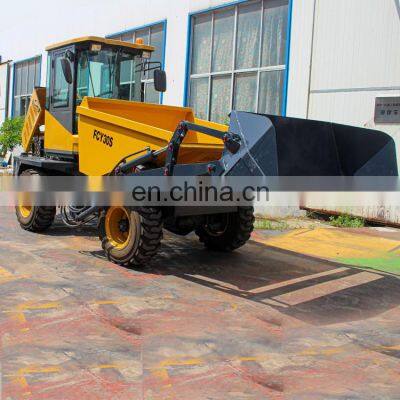

3ton CE Concrete Articulated Mini Site Dumper Tipper With Front End Loader photo-5
Negotiable MOQ: 1 set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Business Type:
Other
Year Established:
1991
Annual Export Value:
US$5 Million - US$10 Million
Contact Supplier Request Quote Chat Now
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
3ton CE concrete articulated mini site dumper tipper with front end loader
Site Dumper FCY30/S /R Technical Specifications
Item
Specifications
Bucket capacity
1.5m3
Rated load
3000kg
Operating weight
2850kg
Grade ability
25º
Min turning radius
4000mm
wheel tread/wheel base
2050mm/1360mm
Overall dimension
"4250*1700*2650mm with canopy
Engine
Model
490
Type
in linedirect injectionwater cooler4 cylinders
Rated power
38kw
Max torque
2400r/min
Transmission System
Gearbox
Gear transmission
system
Clutch
dry friction
Nos of shifts
2 Forward+2 backward shift
Max speed
24km/hr
Rear and front axle
4×4,front axle fixed, rear axle swing（+/-110）
Steering
Type
hydraulic steering
Steering angle
35 degrees on both sides
Hydraulic system
Pressure
16MPA
Brake type
Drum brake
Tyre
Size
20.5/70-16
Fuel capacity
Fuel tank
60L
Hydraulic oil tank
60L
Optional work device

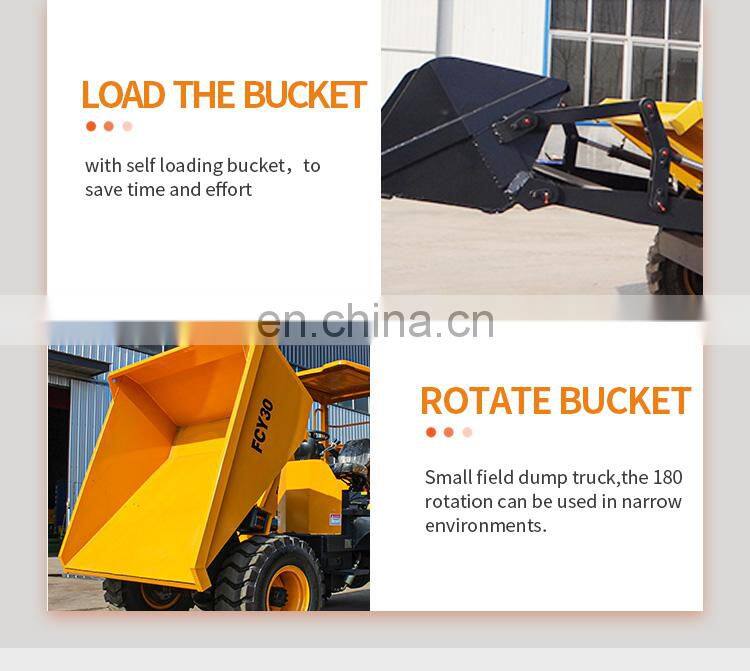

Self-load
Cab
Optional
Details Images

Optional:

1.the cab 2. air condition 3. Deutz or Cummins engine 4. 31 * 15.5-15 tyres 5.Front turn style can be added to level the floor 6.Electronically controlled gearbox
Similar Products
Company Profile

Weifang Map Import & Export Co., Ltd. focuses on quality construction machinery, agricultural equipment, has been in Weifang, China for 14 years. We are Verified Supplier.Now it has become one of the main suppliers of construction machinery.
We produce field tippers, tractor front-end loaders, disc mowers, backhoe loaders, concrete mixers, etc.
We have professional engineers and careful quality check before shipment.All the machines are guaranteed for one year.
We can supply you with dump wheel loaders and construction machinery accessories.The production time is 25-30 days after receiving your deposit. We accept OEM customization.
For some new customers, please do not worry about the problem of cooperation, we will guide you to correctly cooperate with us. That's easy. That's easy. We can arrange sea freight for you. You can pick up the machines at the local port in your country.
We accept online business guaranteed by Alibaba transactions. You can pay us by credit card online.

Products Packaging

Customer

FAQ

1.How can I place order?1.How can I place order? A: You can contact us by email about your order details, or place order on line. 2.How can I pay you? A: After you confirm our PI, we will request you to pay. T/T or start order from Alibaba trade assurance 3. Are you factory supplier? A: Yes, we are real factory supplier for over10years, own a super technical team to serve adjusting design for customers 4.How many tons site dumper do you produce ? A:We are specilized in producing site dumper cover 1ton to 10tons. Model:FCY10, FCY20, FCY30, FCY50, FCY70, FCY100. 5. Which brand engine do you have for site dumpers? A:We company choose good quality engine for site dumpers, Changchai, Xichai, Weichai Power engine / cummins engine/ Deutz diesel engine and so on optional. 6. What's the order procedure? A: First we discuss order details, production details by email or TM.Then we issue you a PI for your confirmation.You will be requested to do prepaid full payment or deposit before we go into production.After we get the deposit, we start to process the order.We usually need 7-15 days if we don't have the items in stock.Before production has been finished,we will contact you for shipment details, and the balance payment.After payment has been settled, we start to prepare the shipment for you. More details please ask us online or send inquiry to us,we will answer first time.
