New Designed FCD60 Cheap Price 4x4 Mini Wheel Dumper 6 Ton 8 Ton Agricultural Dump Truck From China

Weifang Map Import And Export Co., Ltd.
New Designed FCD60 Cheap Price 4x4 Mini Wheel Dumper 6 Ton 8 Ton Agricultural Dump Truck From China thumbnail-1
New Designed FCD60 Cheap Price 4x4 Mini Wheel Dumper 6 Ton 8 Ton Agricultural Dump Truck From China thumbnail-2
New Designed FCD60 Cheap Price 4x4 Mini Wheel Dumper 6 Ton 8 Ton Agricultural Dump Truck From China thumbnail-3
New Designed FCD60 Cheap Price 4x4 Mini Wheel Dumper 6 Ton 8 Ton Agricultural Dump Truck From China thumbnail-4
New Designed FCD60 Cheap Price 4x4 Mini Wheel Dumper 6 Ton 8 Ton Agricultural Dump Truck From China thumbnail-5
New Designed FCD60 Cheap Price 4x4 Mini Wheel Dumper 6 Ton 8 Ton Agricultural Dump Truck From China photo-1

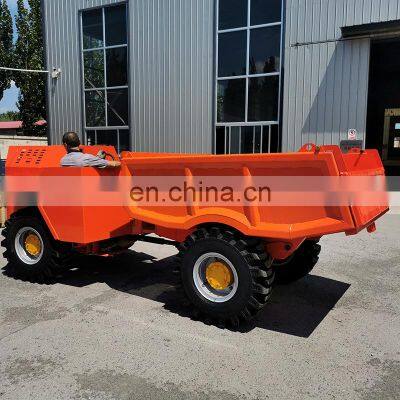

New Designed FCD60 Cheap Price 4x4 Mini Wheel Dumper 6 Ton 8 Ton Agricultural Dump Truck From China photo-2

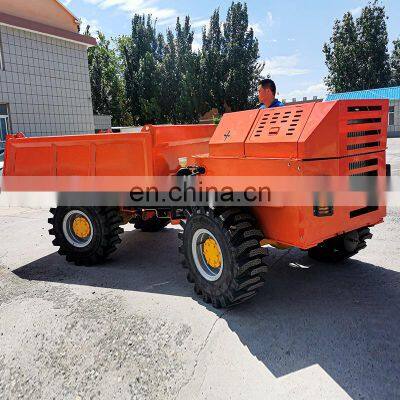

New Designed FCD60 Cheap Price 4x4 Mini Wheel Dumper 6 Ton 8 Ton Agricultural Dump Truck From China photo-3

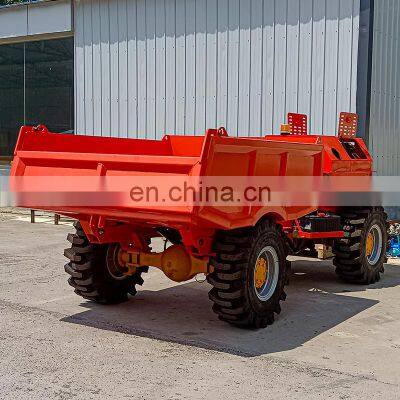

New Designed FCD60 Cheap Price 4x4 Mini Wheel Dumper 6 Ton 8 Ton Agricultural Dump Truck From China photo-4

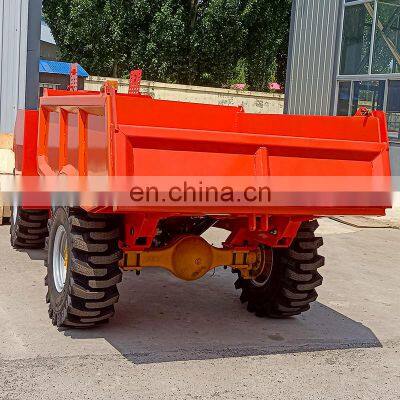

New Designed FCD60 Cheap Price 4x4 Mini Wheel Dumper 6 Ton 8 Ton Agricultural Dump Truck From China photo-5
Negotiable MOQ: 1 set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Business Type:
Other
Year Established:
1991
Annual Export Value:
US$5 Million - US$10 Million
Contact Supplier Request Quote Chat Now
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us

Mining Tunel Use 6 Ton Dumper

New Designed FCD60 cheap price 4x4 mini wheel dumper 6 ton 8 ton agricultural dump truck from china

Underground Dumper FCD60 Technical Specifications:

Overall Dimension
1 Length(with bucket on ground)5050(mm)
2 Bucket width 1850(mm)
3 Height：1800(mm)
4 Wheel base 2300(mm)
5 Tread 1540(mm)
6 Min. Ground clearance 342(mm)

Main Technical Specification

1 Rated load 6000(Kg)
2 Operating weight 4900KG
3 Rated bucket capacity 3.0(CBM)
4 Max. Breakout force 45KN
5. Max. Turning radius 4200MM

Traveling speed(Km/h) 2 forward and 2 reverse
(1) 1st gear forward 8.0
(2) 2ND gear forward 20
(3)1st gear reverse 7.5
(4) 2ND gear reverse 18

Diesel engine
1 Model WEICHAI HUAFENG
2 Type Direct injection. 4 Cylinders water cooling
3 Rated output 76(kW)
4 Inter-bore of cylinder/stroke 100 (mm)
5 Total exhaust of cylinder 4(L)
6 Voltage of starting motor 24(V)
7 Rated speed 2300(r/min)
8 Starting type Electric

9 Min. Specific fuel consumption 251(g/Kw. H)
10 Net weight 390(kg)

Transmission System
(A)gear box type
Type 3-elements. Single stage
Transmission case

Axle and Tire
1 Type of main reducer spiral bevel gear, single stage
2 Gear ratio of main reducer 5.83
3 Type of final reducer Single stage planetary

Size of tire 20.5/70-16

Working Device Hydraulic System
1 Model of oil pump CBG 1016
2 System pressure 160(kgf/cm2)

Steering System
1 Type Middle articulated frame. Co-axis flow AMP. Steering
2 Model of steering pump CBG 2063
3 Model of steering gear BZZ5-250
4 System pressure 125(kgf/cm2)

Parking System
1Type of traveling brake Assisted oil. 4 wheel brake

Oil Capacity
1 Fuel(diesel) 80(L)
2 Engine lubricating oil 16(L)
3 Oil for converter and gear box 30(L)
4 Oil for hydraulic system 100(L)
5 Oil for driving axles 26(L)
1.How can I place order?
A: You can contact us by email about your order details, or place order on line.

2.How can I pay you?
A: After you confirm our PI, we will request you to pay. T/T or start order from Alibaba trade assurance

3.Are you factory supplier?
A: Yes, we are real factory supplier for over10years, own a super technical team to serve adjusting design for customers 4.How many tons site dumper do you produce ? A:We are specilized in producing site dumper cover 1ton to 10tons. Model:FCY10, FCY20, FCY30, FCY50, FCY70, FCY100.

5. Which brand engine do you have for site dumpers?
A:We company choose good quality engine for site dumpers, Changchai, Xichai,Weichai Power engine / cummins engine/ Deutz diesel engine and so on optional.

6. What's the order procedure?
A: First we discuss order details, production details by email or TM.Then we issue you a PI for your confirmation.You will be requested to do prepaid full payment or deposit before we go into production.After we get the deposit, we start to process the order.We usually need 7-15 days if we don't have the items in stock.Before production has been finished,we will contact you for shipment details, and the balance payment.After payment has been settled, we start to prepare the shipment for you. More details please ask us online or send inquiry to us,we will answer first time.
