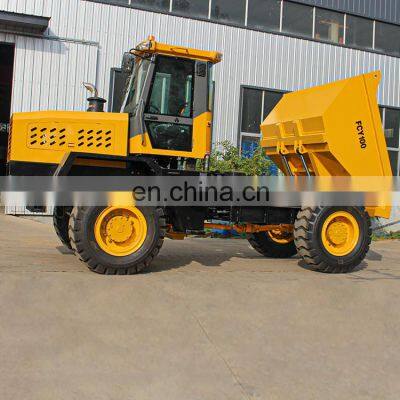

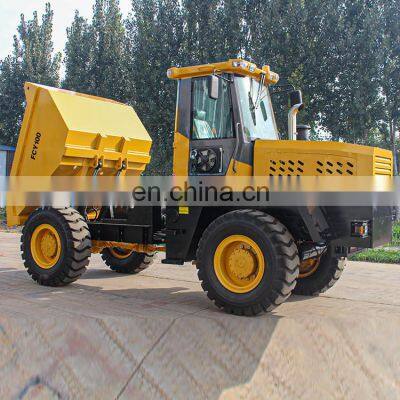

FCY100 4WD Off-highway Mine Use Mining 10 Ton Dump Truck Lift Hydraulic Cylinder 10 Ton Truck Garbage Truck 10 Tons for Sale
Negotiable
MOQ: 1 set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Business Type:
Other
Year Established:
1991
Annual Export Value:
US$5 Million - US$10 Million
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
FCY100 4WD Tipper Dump Truck Off-highway Mine Use Mining Dumper Truck 10 Ton Hydraulic Articulated Dumper Truck Dumper de OrugaNegotiableMOQ: 1 -
CE Standard Garden Truck Hydraulic Box Mini Dumper Avec Moteur Honda 7 Ton Bucket Capacity Tipper Truck for SaleNegotiableMOQ: 1
-
Hot Selling Column FCY70 Tracked 7ton 3.5 Cubic Meters Farm Atv Motorise Under Carriage Dumper With Spare Parts on SaleNegotiableMOQ: 1
-
CE Approved 4x4 Single Cab Column 600 Wide Mini Crawler Self Dumper Concrete FCY70 With CE CertificateNegotiableMOQ: 1
-
CE Approved Rated Loading Weight FCY70 Tracked Dumper 7ton 3.5 Cubic Meters Tipper Front Back Tipping Truck for SaleNegotiableMOQ: 1
FCY100 4WD off-highway mine use mining 10 ton dump truck lift hydraulic cylinder 10 ton truck garbage truck 10 tons for sale
Specification of the 10 ton dump truck
NO. |
Item |
Specifications |
||
1 |
Payload |
10000kg |
||
2 |
Operating weight |
7850 kg |
||
3 |
Bucket capacity |
4.5 m3 |
||
4 |
Maximum speed |
25-30 km/h |
||
5 |
Handbrake available on grade |
25% |
||
6 |
Max grade ability |
25% |
||
7 |
Distance of road after brake |
≤2.5m with load and speed 10km/h |
||
8 |
Minimum turn radius |
4.5 m |
||
9 |
Ground clearance |
248 mm |
||
10 |
Noise level |
≤106 db(A) |
||
11 |
Loading discharge angle |
48.4 |
||
12 |
Time of discharge |
8 s |
||
13 |
Hydraulic pressure |
16 Mpa |
||
14 |
Wheel base |
2000 mm |
||
15 |
Wheel tread |
1580 mm |
||
16 |
Engine power |
92KW OR 97KW |
||
17 |
Dimensions (L x W x H) |
7300X2400X3630MM |
||
B. Engine |
||||
1 |
Model/Maker |
DEUTZ TD226B or CUMMINS engine |
||
2 |
Type |
Diesel 6 cylinders direct fuel injection, water cooled |
||
3 |
Rated Power |
92KW or 97KW |
||
4 |
Speed |
2400 R/Min |
||
C. Drive System |
||||
1 |
Brand |
JINGYI |
||
2 |
Transmission: |
Power shift 4Forward and 2 reverse gears |
||
3 |
Drive shaft: |
Tubular-type, open-type, rigid needle-bearing universal joint |
||
4 |
Driving axle: |
Main drive type: single-stage hyperbolical bevel gear dive |
||
D. Frame |
||||
1 |
Frame: |
Channel steel welding type, two-section articulated connection |
||
2 |
Tire: |
17.5-25 |
||
E. Steering system |
||||
1 |
Type |
Control by wheel, full hydraulic system, two cylinders double acting. |
||
2 |
Angle steering each direction |
± 350 |
||
F. Bake system |
||||
1 |
Operating brake |
Hydraulic shoe system, four-wheel brake |
||
2 |
Handbrake |
mechanically-pirated central sport-type disc |
||
G. Hydraulic system |
||||
1 |
Hydraulic pump: |
Gear pump |
||
1.How can I place order?
A: You can contact us by email about your order details, or place order on line.
2.How can I pay you?
A: After you confirm our PI, we will request you to pay. T/T or start order from Alibaba trade assurance
3. Are you factory supplier?
A: Yes, we are real factory supplier for over10years, own a super technical team to serve adjusting design for customers
4.How many tons site dumper do you produce ?
A:We are specilized in producing site dumper cover 1ton to 10tons. Model:FCY10, FCY20, FCY30, FCY50, FCY70, FCY100.
5. Which brand engine do you have for site dumpers?
A:We company choose good quality engine for site dumpers, Changchai, Xichai, Weichai Power engine / cummins engine/ Deutz diesel engine and so on optional.
6. What's the order procedure?
A: First we discuss order details, production details by email or TM.Then we issue you a PI for your confirmation.You will be requested to do prepaid full payment or deposit before we go into production.After we get the deposit, we start to process the order.We usually need 7-15 days if we don't have the items in stock.Before production has been finished,we will contact you for shipment details, and the balance payment.After payment has been settled, we start to prepare the shipment for you.
More details please ask us online or send inquiry to us,we will answer first time.
