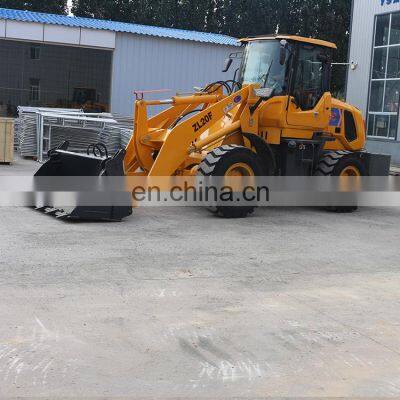

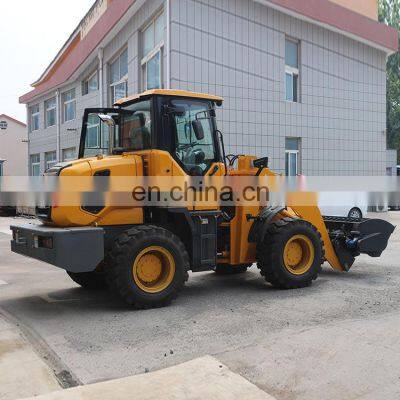

Sale Mini Small Agricultural Farm Wheel Loader 4x4 Wheel Drive With YUNNEI Engine With CE Heating Cabin

FOB Price

Negotiable

1 (Min. Order)

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Description

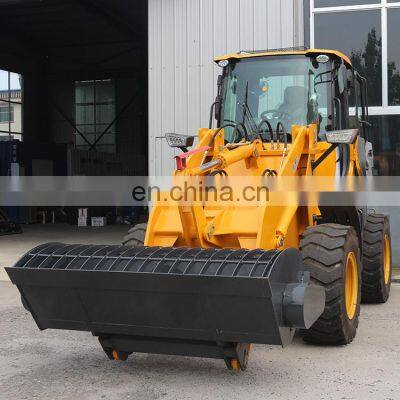

4 IN 1 BUCKET /FORKS/ QUICK HITCH/JOYSTICK/HEATING/FAN/FLOAT

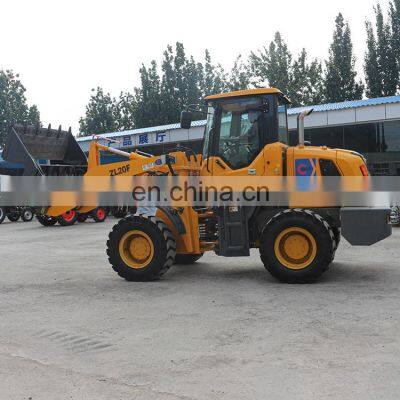

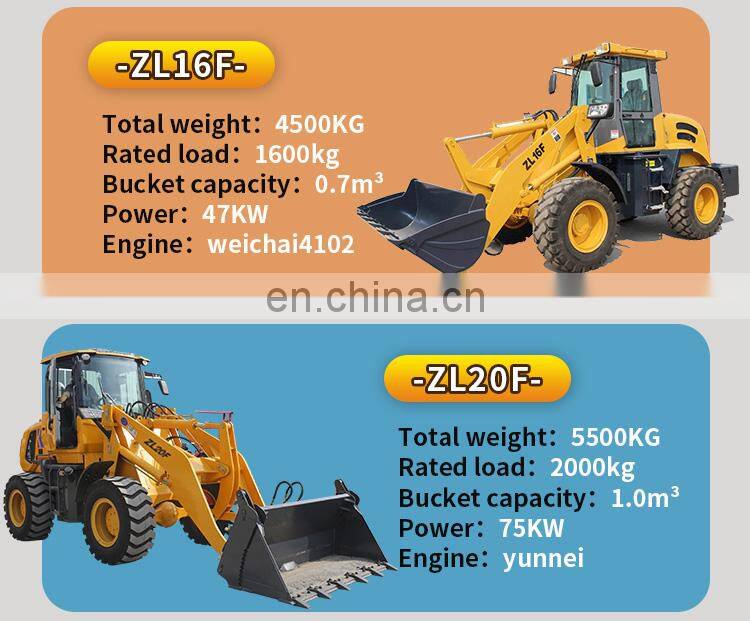

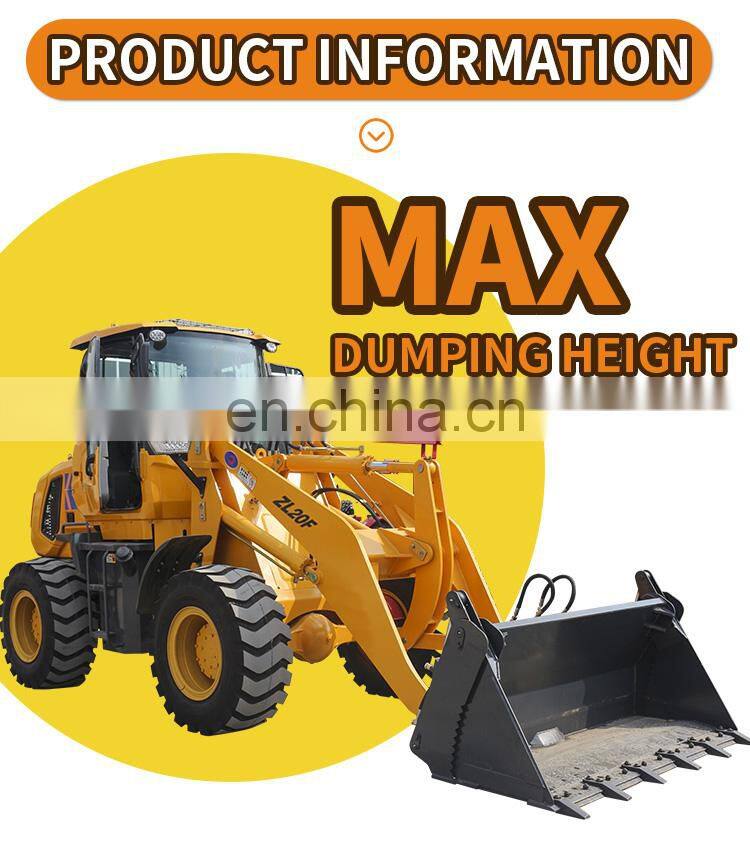

Wheel loader ZL20F Main Specifications
Basic Info.	1	Rated loading	2000kg
	2	Operating weight	4800kg
	3	rated bucket capacity	1.0m3
	4	maximum tractive force	54KN
	5	maximum breakout force	45.4KN
	6	maximum grade ability	30
	7	maximum dump height	3000mm
	8	maximum dump reach	752mm
	9	overall dimension (L×W×H)	5600×2100×2850mm
	10	minimum turning radius	5251mm
Engine	11	model	YUNEI
	12	type	Vertical, in-line, water cooled, 4-stroke diesel engine
	13	No. of cylinder-bore/stroke	4105×125mm
	14	rated power	76kw2200r/min
	15	maximum torque	270N.m
	16	min fuel-consume ratio	≤243g/kw.h
Transmission system	17	torque converter	YJ265A
	18	gearbox mode	Countershaft power-shift
	19	gear shift	2 forward shift 2 reverse shift
	20	maximum speed	24km/h
Drive axles	21	main reducing spiral	Circular Arc Bevel gear, single stage
	22	decelerating mode	Single stage planetary type
	23	wheel base (mm)	2400mm
Tyre	24	Model	16.70-20
