Home > Products > Site dumper > Mining Transportation/Urban Construction Muck Transportation/Engineering Transportation FCY30 4*4 Wheel Drive Mini Site Dumper

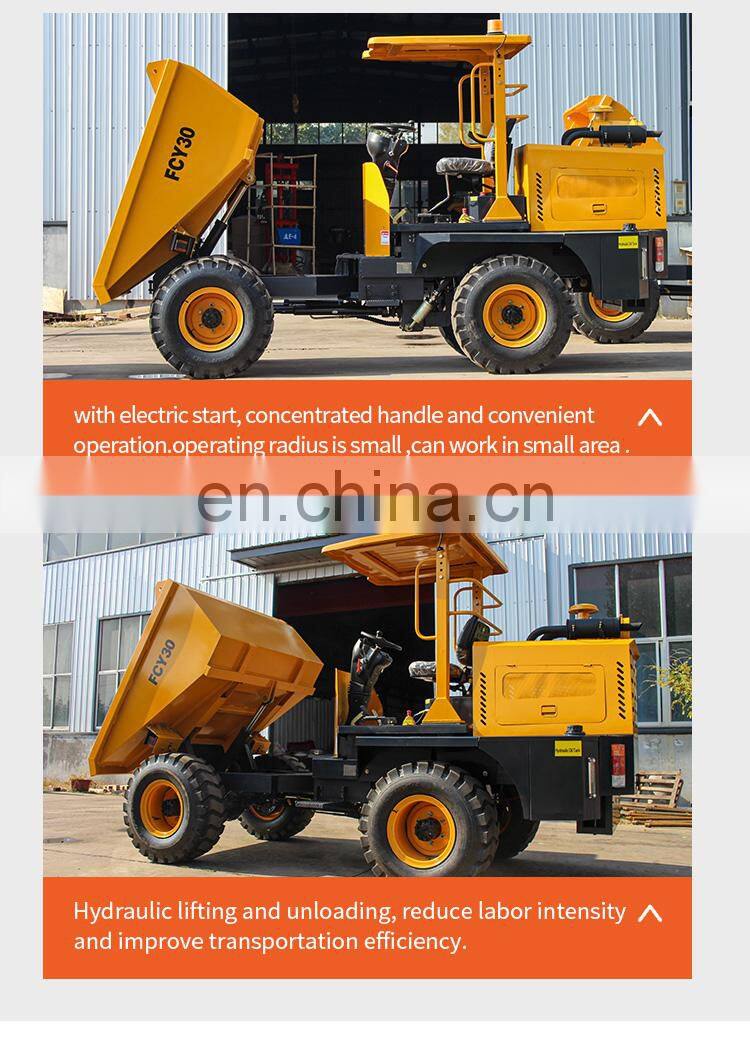

Mining Transportation/Urban Construction Muck Transportation/Engineering Transportation FCY30 4*4 Wheel Drive Mini Site Dumper
Negotiable
1 (Min. Order)
- T/T Credit Card
You May Like
-
Mining Engineering Transportation FCY30 4*4 Wheel Drive Mini Site Dumper off Road Dump Truck
-
Sale Mini Small Agricultural Farm Wheel Loader 4x4 Wheel Drive With YUNNEI Engine With CE Heating Cabin
-
Map High Quality New Condition 3 Ton 5 Ton Hydraulic All Terrain Vehicle Site Dumper With Cheapest Price
-
China ce Mini Site Dumper Mine Dumpers Loader
-
MAP Good Quality Site Dumper Truck With Hydraulic Steering
-
Chinese Cheap Price Mini Site Dumper Truck With CE
Product Description
Site Dumper FCY30/S /R Technical Specifications | ||||
Item | Specifications | |||

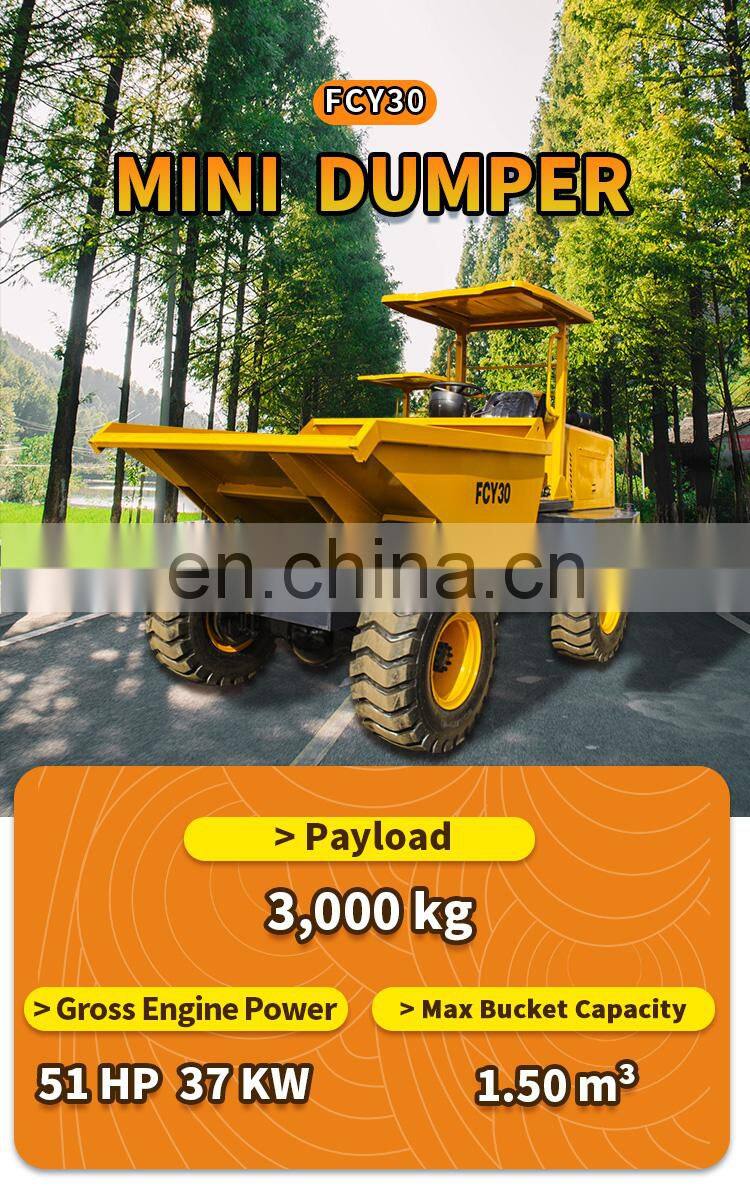

Bucket capacity | 1.5m3 | |||
Rated load | 3000kg | |||
Operating weight | 2850kg | |||
Grade ability | 25º | |||
Min turning radius | 4000mm | |||
wheel tread/wheel base | 2050mm/1360mm | |||
Overall dimension | "4250*1700*2650mm with canopy | |||
Engine | Model | 490 | ||
Type | in linedirect injectionwater cooler4 cylinders | |||
Rated power | 38kw | |||
Max torque | 2400r/min | |||
Transmission System | Gearbox | Gear transmission | ||
system | Clutch | dry friction | ||
Nos of shifts | 2 Forward+2 backward shift | |||
Max speed | 24km/hr | |||
Rear and front axle | 4×4,front axle fixed, rear axle swing（+/-110） | |||
Steering | Type | hydraulic steering | ||
Steering angle | 35 degrees on both sides | |||
Hydraulic system | Pressure | 16MPA | ||
Brake type | Drum brake | |||

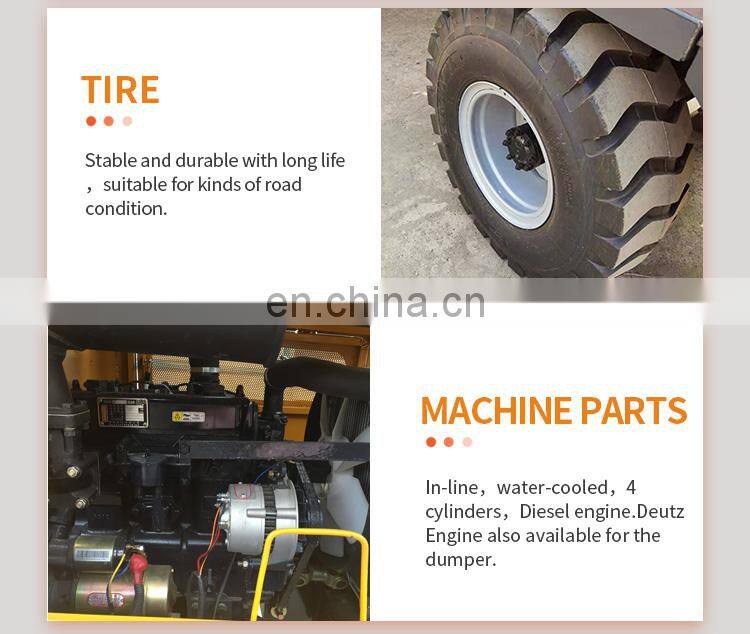

Tyre | Size | 20.5/70-16 | ||
Fuel capacity | Fuel tank | 60L | ||
Hydraulic oil tank | 60L | |||

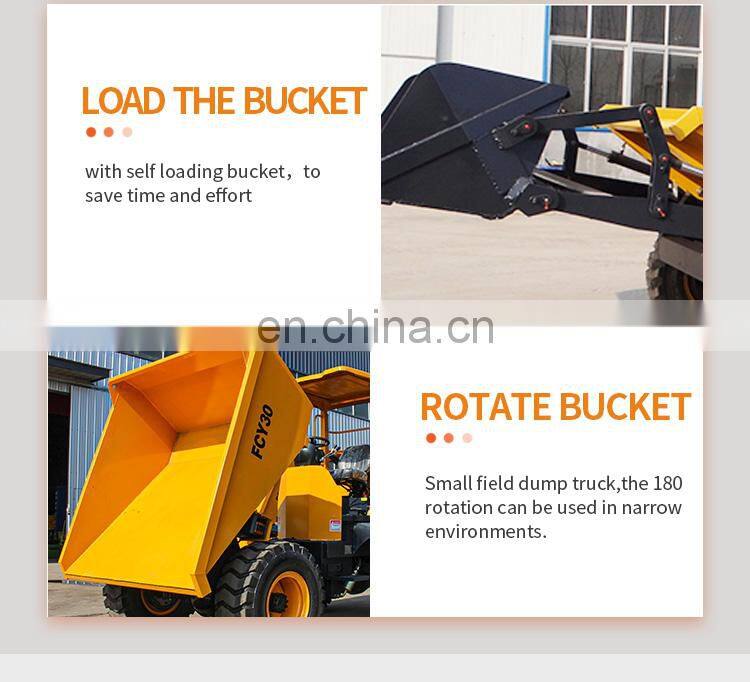

Optional work device | Self-load | |||
Cab | Optional | |||
