Concrete Truck Dump Truck Dump Truck Price In Dubai
Negotiable
1 (Min. Order)
- T/T Credit Card
You May Like
-
Tractor Dump 4x4 Dump Truck Tipper Truck Truck Hot~3 Ton Mz Forward Discharge Site Dumper Fcy30
-
Fcy30 3ton Site Dumper Payload Dumper Trucks Camionetas
-
3 Ton Concrete Site Dumper Dump Truck With Cabin
-
4x4 Loading Site Dumper Tip Lorry Swivel Bucket Dump Truck
-
4x4 Yellow Dumper Truck Small Dump Truck For Sale
-
Front Site Dumper Mini Crawler Site Dumper Truck Dimensions For Europe Market
Product Description

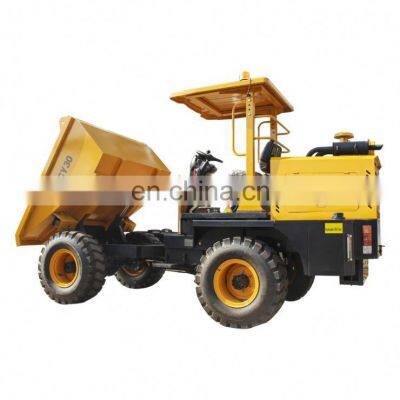

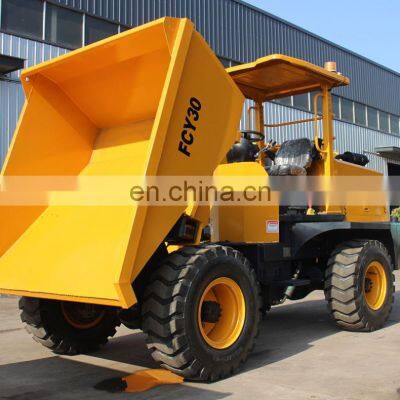

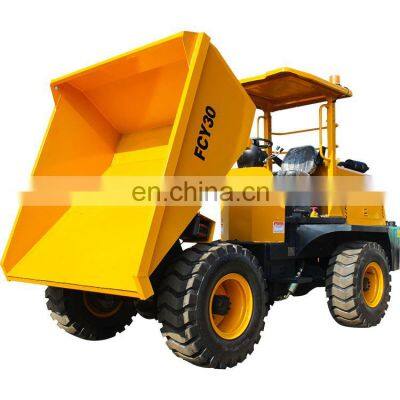

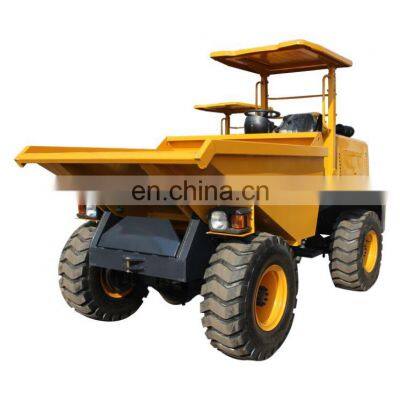

FCY30 Rotary Type Hydraulic 4x4 drive dump truck 3 ton rotating small site dumper
Products Description
Site Dumper FCY30/S /R Technical Specifications | ||||
Item | Specifications | |||
Bucket capacity | 1.5m3 | |||
Rated load | 3000kg | |||
Operating weight | 2850kg | |||
Grade ability | 25º | |||
Min turning radius | 4000mm | |||
wheel tread/wheel base | 2050mm/1360mm | |||
Overall dimension | "4250*1700*2650mm with canopy | |||
Engine | Model | 490 | ||
Type | in linedirect injectionwater cooler4 cylinders | |||
Rated power | 38kw | |||
Max torque | 2400r/min | |||
Transmission System | Gearbox | Gear transmission | ||
system | Clutch | dry friction | ||
Nos of shifts | 2 Forward+2 backward shift | |||
Max speed | 24km/hr | |||
Rear and front axle | 4×4,front axle fixed, rear axle swing（+/-110） | |||
Steering | Type | hydraulic steering | ||
Steering angle | 35 degrees on both sides | |||
Hydraulic system | Pressure | 16MPA | ||
Brake type | Drum brake | |||
Tyre | Size | 20.5/70-16 | ||
Fuel capacity | Fuel tank | 60L | ||
Hydraulic oil tank | 60L | |||
Optional work device | Self-load | |||
Cab | Optional | |||
Details Images
Company Profile
FAQ
1.How can I place order?1.How can I place order?
A: You can contact us by email about your order details, or place order on line.
2.How can I pay you?
A: After you confirm our PI, we will request you to pay. T/T or start order from Alibaba trade assurance
3. Are you factory supplier?
A: Yes, we are real factory supplier for over10years, own a super technical team to serve adjusting design for customers
4.How many tons site dumper do you produce ?
A:We are specilized in producing site dumper cover 1ton to 10tons. Model:FCY10, FCY20, FCY30, FCY50, FCY70, FCY100.
5. Which brand engine do you have for site dumpers?
A:We company choose good quality engine for site dumpers, Changchai, Xichai, Weichai Power engine / cummins engine/ Deutz diesel engine and so on optional.
6. What's the order procedure?
A: First we discuss order details, production details by email or TM.Then we issue you a PI for your confirmation.You will be requested to do prepaid full payment or deposit before we go into production.After we get the deposit, we start to process the order.We usually need 7-15 days if we don't have the items in stock.Before production has been finished,we will contact you for shipment details, and the balance payment.After payment has been settled, we start to prepare the shipment for you.
More details please ask us online or send inquiry to us,we will answer first time.
