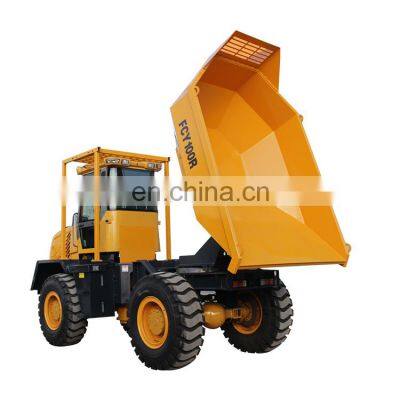

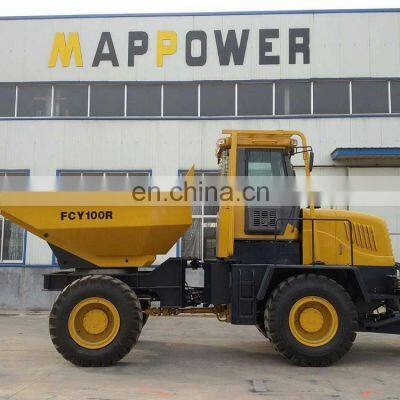

FCY100 10ton 4x4 CE Standard Articulated Dump Truck for Mining

FOB Price

Negotiable

1 (Min. Order)

Payment TermsT/T Credit Card

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Description

FCY100 10ton 4x4 CE standard articulated dump truck for mininga

Products Description

NO.	Item	Specifications
1	Payload	10000kg
2	Operating weight	7850 kg
3	Bucket capacity	4.5 m3
4	Maximum speed	25-30 km/h
5	Handbrake available on grade	25%
6	Max grade ability	25%
7	Distance of road after brake	≤2.5m with load and speed 10km/h
8	Minimum turn radius	4.5 m
9	Ground clearance	248 mm
10	Noise level	≤106 db(A)
11	Loading discharge angle	48.4
12	Time of discharge	8 s
13	Hydraulic pressure	16 Mpa
14	Wheel base	2000 mm
15	Wheel tread	1580 mm
16	Engine power	92KW OR 97KW
17	Dimensions (L x W x H)	7300X2400X3630MM
B. Engine
1	Model/Maker	DEUTZ TD226B or CUMMINS engine
2	Type	Diesel 6 cylinders direct fuel injection, water cooled
3	Rated Power	92KW or 97KW
4	Speed	2400 R/Min
C. Drive System
1	Brand	JINGYI
2	Transmission:	Power shift 4Forward and 2 reverse gears
3	Drive shaft:	Tubular-type, open-type, rigid needle-bearing universal joint
4	Driving axle:	Main drive type: single-stage hyperbolical bevel gear dive
D. Frame
1	Frame:	Channel steel welding type, two-section articulated connection
2	Tire:	17.5-25
E. Steering system
1	Type	Control by wheel, full hydraulic system, two cylinders double acting.
2	Angle steering each direction	± 350
F. Bake system
1	Operating brake	Hydraulic shoe system, four-wheel brake
2	Handbrake	mechanically-pirated central sport-type disc
G. Hydraulic system
1	Hydraulic pump:	Gear pump

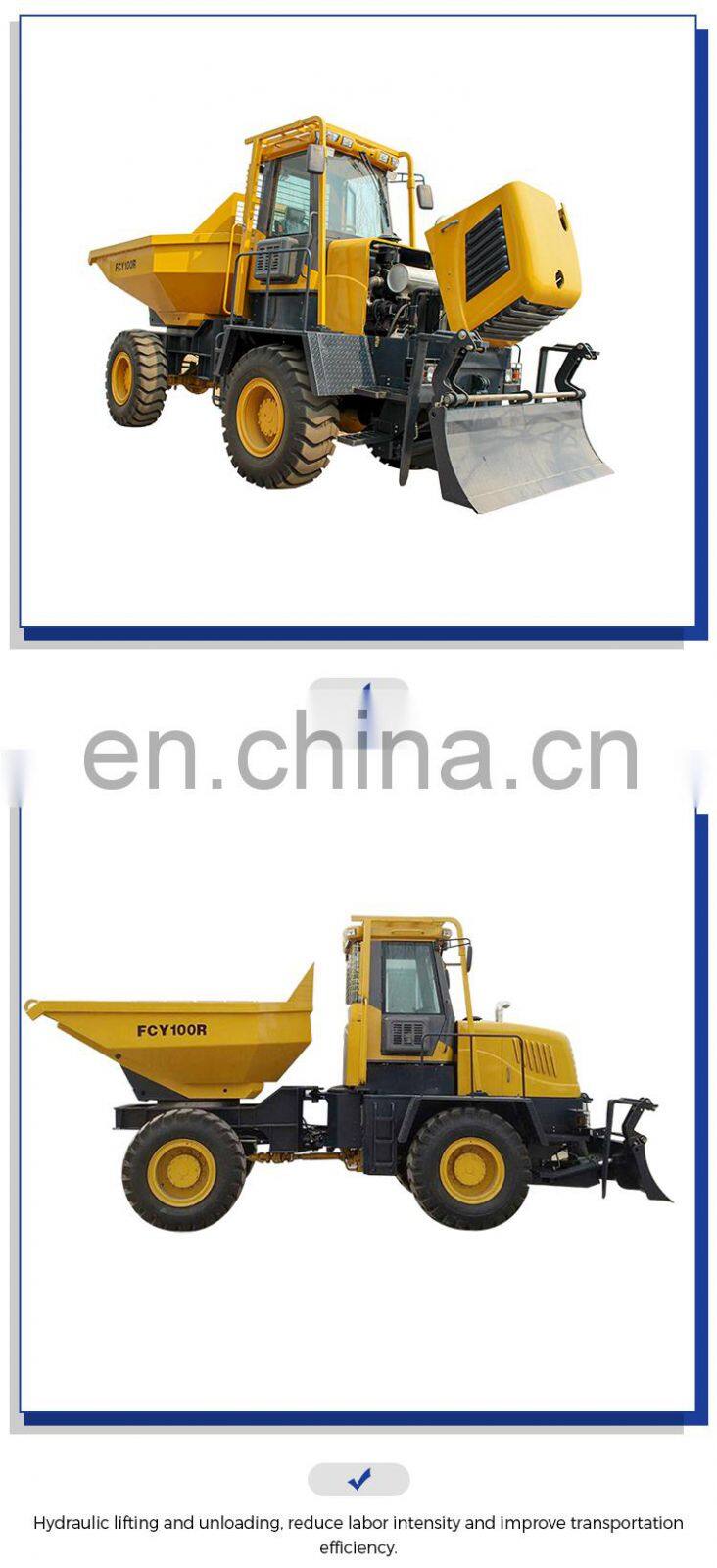

Details Images

Company Profile

FAQ

1.How can I place order?1.How can I place order? A: You can contact us by email about your order details, or place order on line. 2.How can I pay you? A: After you confirm our PI, we will request you to pay. T/T or start order from Alibaba trade assurance 3. Are you factory supplier? A: Yes, we are real factory supplier for over10years, own a super technical team to serve adjusting design for customers 4.How many tons site dumper do you produce ? A:We are specilized in producing site dumper cover 1ton to 10tons. Model:FCY10, FCY20, FCY30, FCY50, FCY70, FCY100. 5. Which brand engine do you have for site dumpers? A:We company choose good quality engine for site dumpers, Changchai, Xichai, Weichai Power engine / cummins engine/ Deutz diesel engine and so on optional. 6. What's the order procedure? A: First we discuss order details, production details by email or TM.Then we issue you a PI for your confirmation.You will be requested to do prepaid full payment or deposit before we go into production.After we get the deposit, we start to process the order.We usually need 7-15 days if we don't have the items in stock.Before production has been finished,we will contact you for shipment details, and the balance payment.After payment has been settled, we start to prepare the shipment for you. More details please ask us online or send inquiry to us,we will answer first time.
