Automatic 3D CNC Wire Bending MachineNegotiableMOQ: 1

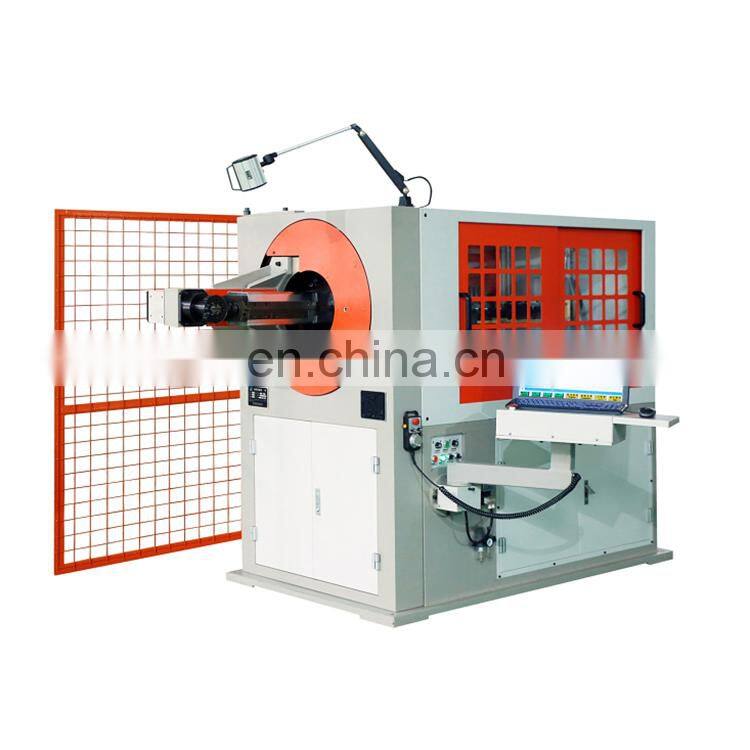

| Product name | CNC 3D wire bending machine |
| Type | automatic machine |
| Material | low carbon steel wire/stainless steel wire |
| Color | any customer prefer |
| Specific Use | post tensioning |
| Brand Name | ETERNOO |

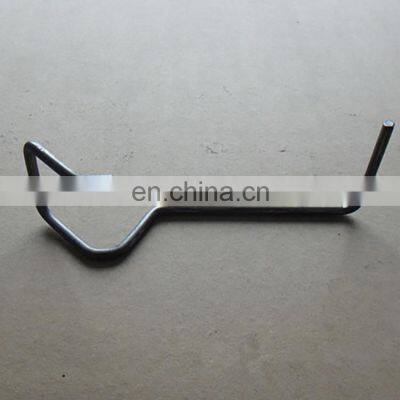

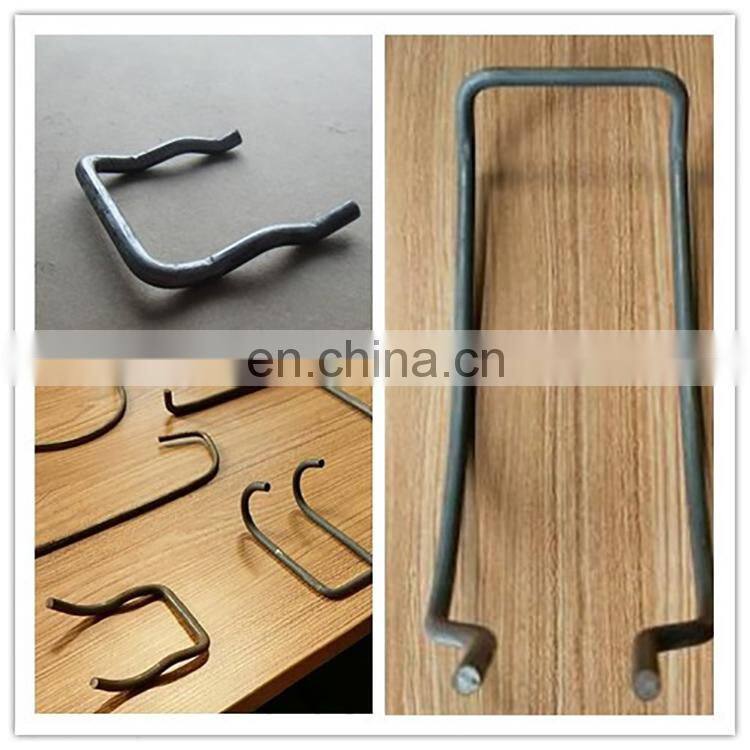

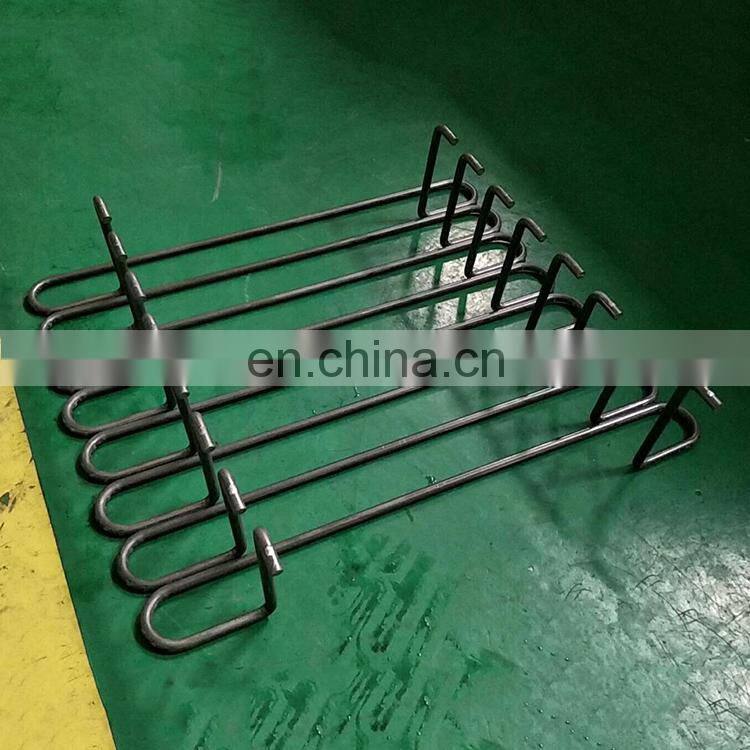

| Usage | producingany customized forming wire, like car industry, steel industry etc. |
| The diameter of the processed wire | Φ3-Φ8mm (tensile strength≤500N) |
| Number of control axes | 5 axes |
| Rotating arm motor power | 3.8KW |
| Wire feeding motor power | 3.8KW |
| Angle motor power | 2.0KW |
| Lifting motor power | 1.0KW |
| Cutter motor power | 1.0KW |
| Maximum wire feeding speed | 90m/min |
| Wire feeding accuracy | 300mm±0.1 |
| Maximum load-bearing capacity of automatic wire feeder | 1500Kg |
| Disc diameter of automatic wire feeder | φ1600mm |
| Motor power of automatic wire feeding frame | 2.2KW |
| Host voltage | three-phase 380V (±20V) |
| Main machine weight | 3800kg |
| Main machine size | 3310mm X 2000mm X 1900mm (length X width X height) |
| Weight of automatic wire feeder | 800Kg |
| Automatic wire feeding frame size | 2200mmX2200mmX1750mm (length X width X height) |
Q1: Is it easy to operate your machine?
A1: Yes, very easy. No need special training actually, we will send you operation videos, and you or your
worker will clearly know how to operate and how to adjust the height. Of course, if you feel necessary to
be trained, customer could come to our factory, or we send technician to customer's country.
Q2: what is the power supply of machine?
A1: generally it is 380V, 3PH, 50HZ, but we could also make 400V/420V/440V/ 50HZ/60HZ, as customer
requires.
Q3: what is the steel bar diameter your machine could deal with?
A3: 4mm, 5mm, 6mm, 7mm, 8mm etc. One machine work with one wire diameter.
Q4: what is the machine warrenty:
A4: 13 months after machine delivering from our factory. ( we give one month more for considering
shipping time)
