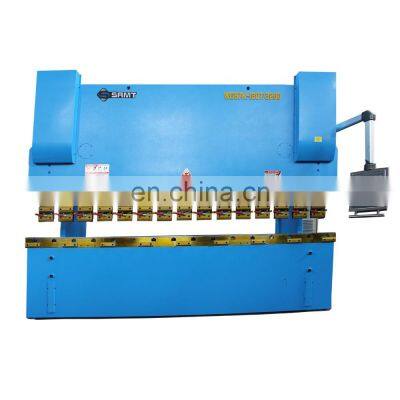

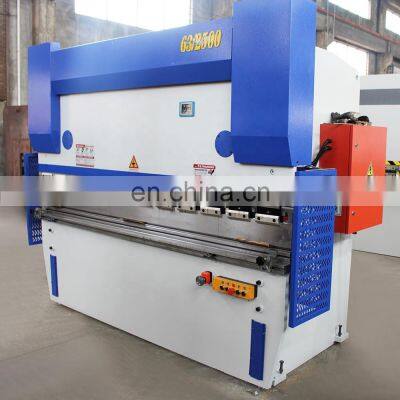

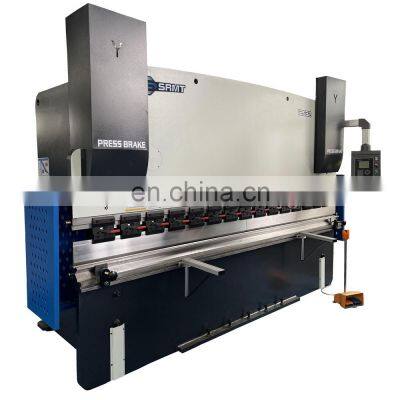

Good Quality 80tons 2.5meters Cnc Press Brake With Da52s Control System,60tons 3meters 3 Axes Cnc Hydraulic Press Brake
Negotiable
MOQ: 1 set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Business Type:
Business Service (Transportation, finance, travel, Ads, etc)
Year Established:
2003
Annual Export Value:
US$50 Million - US$100 Million
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
200t/3200 High Quality CNC Stainless Steel Bending MachineNegotiableMOQ: 1 -
Good Price Stainless Steel Sheet Metal Plate 125t 3200mm Hydraulic Manual Press Brake for 2mm to 6mm Sheet BendingNegotiableMOQ: 1
-
Factory Stainless Steel Hydraulic Press Brake 80T 2500mm CNC Press Brake With Optional DA41S DA52S 3axis ControllerNegotiableMOQ: 1
-
Factory 2.5mm Stainless Steel CNC Bending Machine Price 5mm Plate Press Brake Hydraulic Metal Sheet Press BrakeNegotiableMOQ: 1
-
Factory Iron Box Copper Frame Angle Sheet Metal Bender Small Size WC67Y-30T/1600 Mini Hydraulic Press Brake MachineNegotiableMOQ: 1
Product Overview
WC67K series hydraulic servo CNC press brake
Bending machine is the use of the mold (general or special mold) to bend the cold metal sheet into various geometric sections of the workpiece. The bending machine generally adopts the CNC system of the bending machine. The coordinate axis of the bending machine has been developed from the single axis to the 12 axis. It can automatically realize the depth control of the slider operation, the tilt adjustment of the slide block, and the adjustment of the rear stopper before and after the numerical control system. Left and right adjustment, pressure tonnage adjustment and slider approaching working speed adjustment, etc. It can make the bending machine conveniently realize the actions of sliding block downward, inching, continuous, pressure maintaining, return and midway stop, and complete the multi elbow bending of the same angle or different angles at one time.
FEATURES AT A GLANCE
Features
ON basis of WC67K series press rake ,this type machine is installed CNC controllers, which can meet customers' requirements for the design of high precision proccessing.
❤︎Many CNC controllers are available ,such as Delem brand ,Estun brand nad sanyuan brand ,etc.For details please see (CNC controllers introduction)
❤︎The whole machine is in sheet plate welded structure ,with internal stress eliminated by vibration aging technology, high strength and good rigidity of machine.
❤︎Double hydraulic oil cylinder is applied for upper transmission ,provided with mechanical limit stooper and synchronous torsion bar ,typical of stable and reliable operation, as well as high precision.
Back gauge positioning and slide stroke are controlled by a servo motor drive device .And the value is dispayed on the NC display screen ,to achieve multi-workpiece and multi-step automation
mould clamping device
Mechanical compensation
The high accuratelinearencoder
import servo system
linear guideway precision ball screw
The imported quality sealing parts
Motor
With Siemens motor,
low working noise
long using life
valve
With Bosch Rexroth valve group low working noise good performance
linear guide
With HIWIN ball bearing lead screw and linear guide
Successful Project
Project in
Project in
Project in Russia
Model | 80T/2500 | 80T/3200 | 80T/4000 |
Nominal Force | 800KN | 800KN | 800KN |
bending length | 2500mm | 3200mm | 4000mm |
poles distance | 2050mm | 2560mm | 3000mm |
Throat Depth | 300mm | 320mm | 320mm |
Slider Travel | 120mm | 120mm | 120mm |
Worktable Height | 700mm | 700mm | 700mm |
Die Loading Height | 320mm | 350mm | 350mm |
power | 7.5kw | 7.5kw | 7.5kw |
Dimension(mm) | 2600*1450*2200 | 3300*1500*2250 | 4150*1500*2300 |
