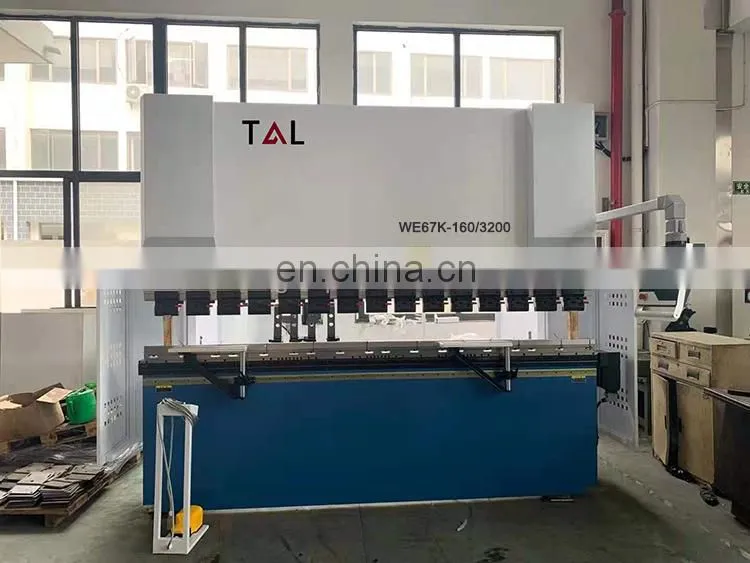

T&L Brand CNC metal master Synchro servo press brake
- 1000 per Month
- T/T Credit Card
- T&L Brand CNC hydraulic Press Brake Machine 250 ton 3200 4000 mm with DA66T
- T&L Brand High precison Small cnc press brake bending machine
- T&L Brand 400Ton 6000 CNC servo press brake with Delem DA66T 6+1 Axis
- T&L Brand WE67K-400T6000mm CNC Servo hydraulic press brake bending machine
- T&L Brand High quality CNC hydraulic 300 ton press brake 4 meter
- T&L Brand WE67K-400T6000 CNC hydraulic press brake 8 axis Delem DA66T
Product Description
|
Main Features: |
1. Machining accuracy is high: backgauge repositioning accuracy of 0.1mm ram repositioning accuracy of 0.1mm. |
2. Large processing range: This product slider stroke is 265mm, closed height is 480mm, column distance is 2700mm, backgauge X axis stroke is 500 mm; compared to ordinary products, the products can less you trouble of the following accumulation |
3. This product adopts the main motor with large power, large flow pump, it can realize adjustable speed, fast speed can easily reach 220mm/s T&L Brand CNC metal master Synchro servo press brake |
4. This product can reduce the heat generation, hydraulic oil temperature is low, the maximum limit to reduce the damage to the hydraulic components, to extend the service life of the product |
5. Electro-hydraulic system is adopted to control dual cylinders to get high synchronized controlling accuracy, high bending accuracy, and repositioning accuracy |
6. Hydraulic auto compensation system is adopted to eliminate the effect of the deformed sliding block during bending which may affect bending quality. |
7. Multi-functional backgauge which can be expanded into 6 axes, i.e., X1 and X2 axes for back and forth, R1 and R2 axes for up and down and Z1 and Z2 for left and right. The workpiece bending can be realized flexibly. |
8. Segmented punch can be combined with certain length according to the bending requirement of special workpiece. |

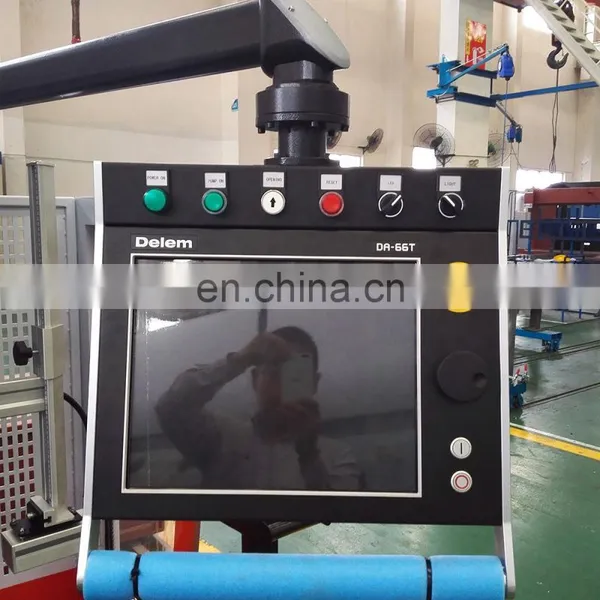

9. CNC system adopts Delem DA66T/ DA52S CNC system. |
1. Standard Service: |
Our factory provide the service for the customer forever, if the customer need operation help, can contact us by MSN, Skype, Email and Telephone at any time, we provide 24 hours on-line service. |
2. Installation: |
Our factory can send our engineer to the customer’s factory install, commission and training freely .The customer provide the double trip tickets, food and accommodation for our engineer. The customer also can send the engineer to our factory to learn the operation and maintains freely. |
3. Quality Guarantee: |
Our guarantee time is 2 years from B/L Date ,If any component is damaged during guarantee time,we can send the component to the customer By DHL,TNT freely. |
4. Order Processing: |
Requirement for Customer: |
1. Hydraulic oil: imported VG46# anti-wear hydraulic oil; and the required oil mass depend on the machine specification |
2. Environment temperature: 0°C - +40°C |
3. Environment humidity: relative humidity 20-80%RH(non-condensing) |
4. Keep away from the strong vibration source and electromagnetic interference |
5. Prepare the foundation according to the foundation drawing |
6. Voltage fluctuation 10%--5% |
