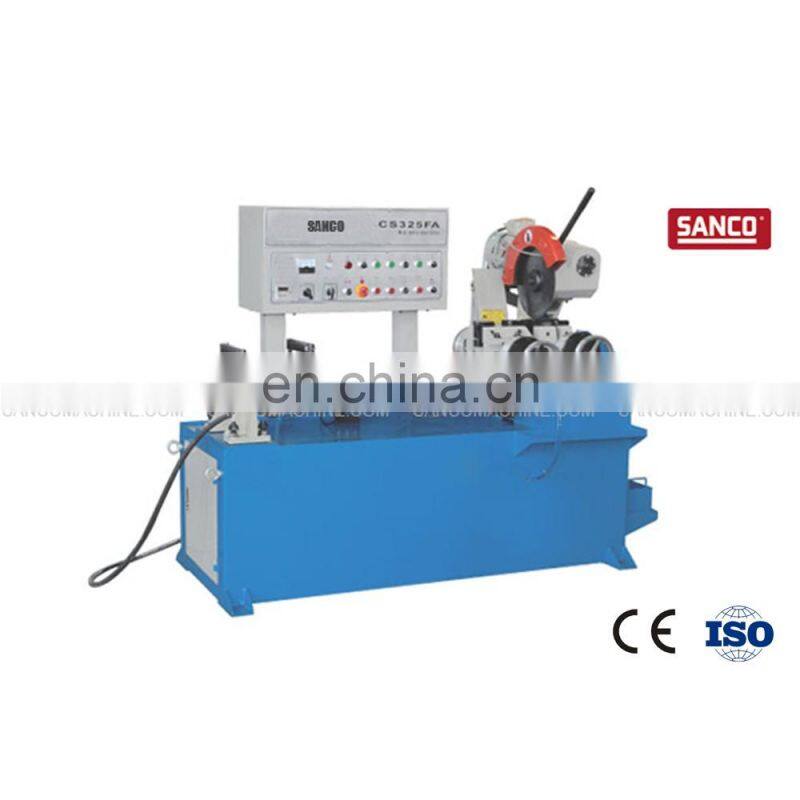

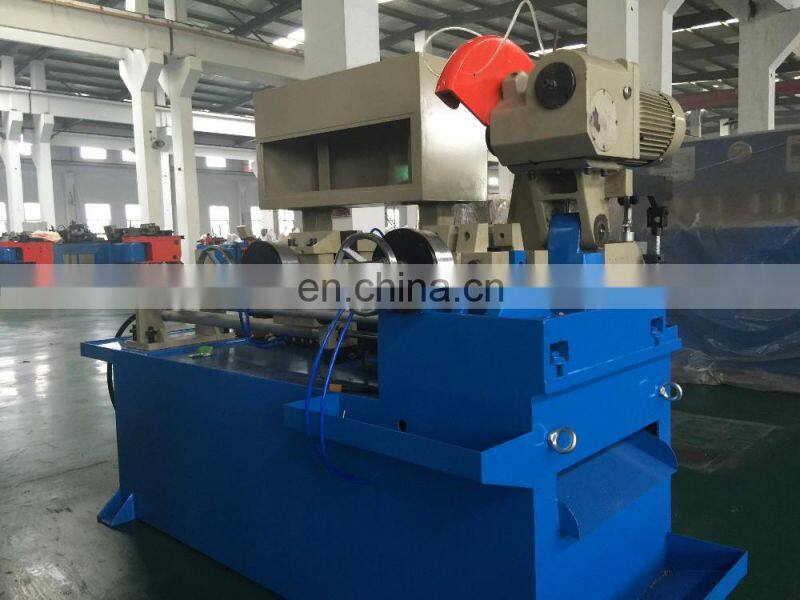

Full-auto pneumatic type, pneumatic feeding, clamp, and cutting. Can multiple tubes cutting. Smooth cut face without burr, automatic circulating cooler system. Casting blade shield improve safety. Auto feeding greatly improved efficiency and saved labor. With Taiwan core tech since 1989.
FA Full Auto
Max. Φ325 mm saw blade
Max cutting Round tube：Φ95 mm ( Can cut several pipes )
Square tube：85×85 mm ( Can cut several pipes )
Rectangle tube：110×75 mm ( Can cut several pipes )
Cut angle 90°
Feeding length 5 - 700 mm ( Single feed stroke )
5 - 1400 mm ( Double feed stroke )
5 - 2100 mm ( Triple feed stroke )
Max Vice open distance 105 mm
Applied saw blade HHS Φ250 mm - Φ325 mm, Standard Φ300 mm
Main motor power 2.4 / 3.0 kw
Cooler pump power 90 W
Machine size 2100×1050×1850 mm
Machine Weight 1100 kg
Pipe material: mild steel, stainless steel ...
Round / square / rectangle / profile ... pipes and bars
CE, ISO90001 marked
Main Features
1) Manual cutting---easy operation
2) Mechanical measurement of cut length--convenient.
3) Cutting angle ruler---control cut angle 45-90 degree
4) casting saw blade cover---enhanced safty for operator
Machine Parts

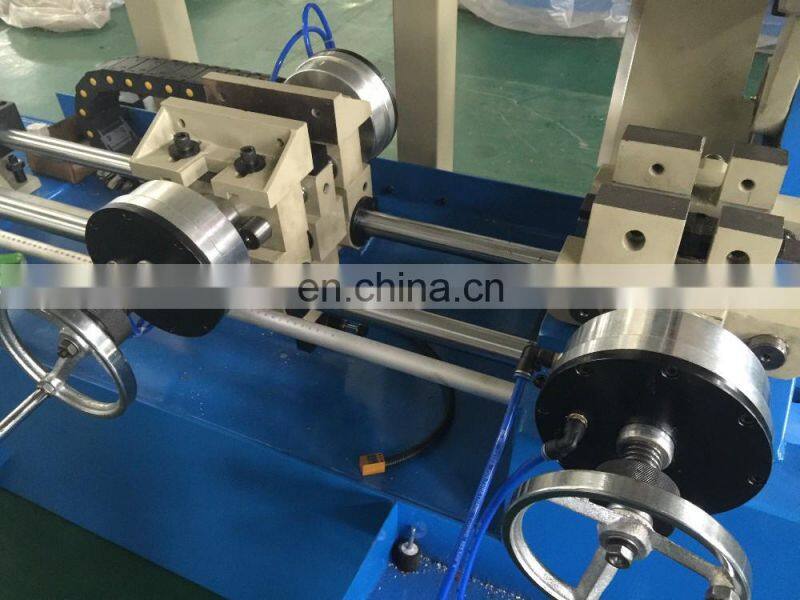

Name: length measurement
Brand: sanco
Original: China
Can fix the cut length easily
Main parts

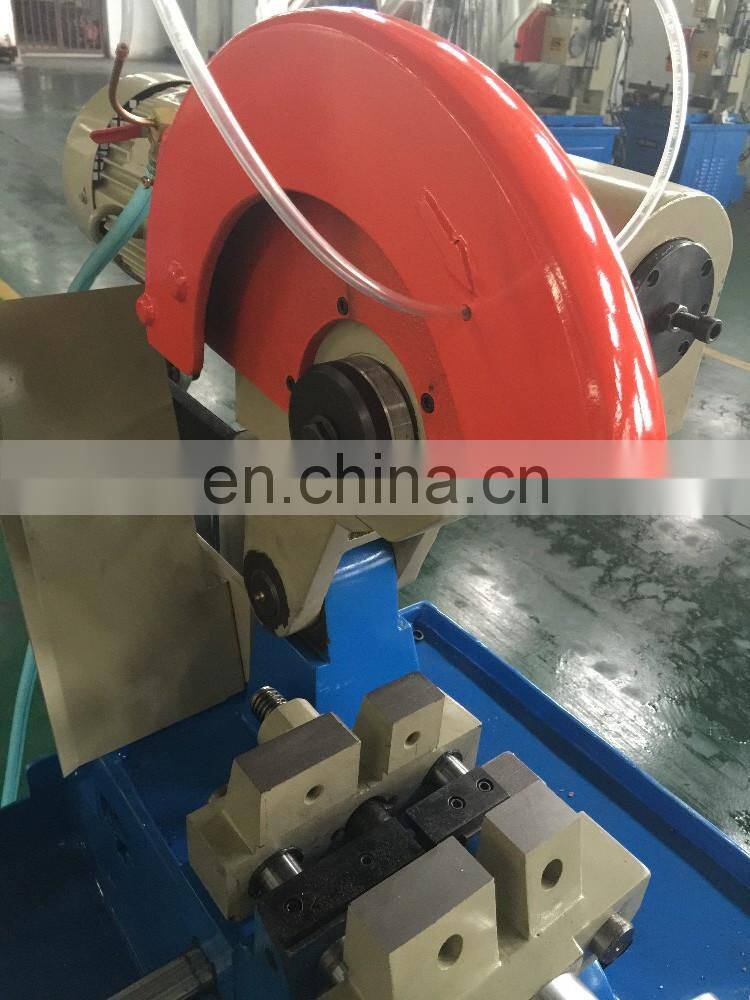

Name: Saw blade shiled
Brand: Sanco
Original: China
Iron casting saw blade shiled ensures operator's safty
Machine Parts
Name: Saw blade
Brand: Sanco
Original: Italy
HHS material, suitable for cutting steel at high speed
Pre-Sales Service
* Inquiry and drawing consulting support.
* Sample testing support. (if need)
* View our Factory.
After-Sales Service
* Training how to instal the machine, training how to use the machine.
* Engineers available to service machinery overseas.
Packaging |
||
Size |
2100 (L) * 1050 (W) * 1850 (H) |
|
Weight |
1100kgs |
|
Packaging Details
|
The normal package is wooden box. If export to european countries,the wooden box will be fumigated.If container is too tigher,we will use pe film for packing or pack it according to customers special request. |
|
