Fully Automatic Bolt Chamfering Machine With Auto Loader

Product Application

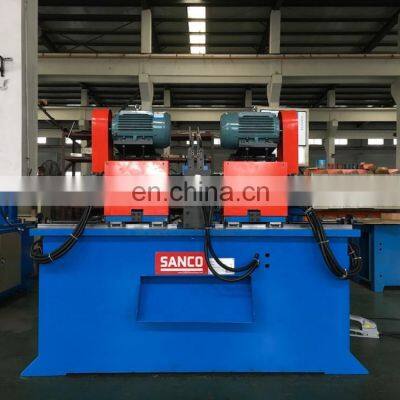

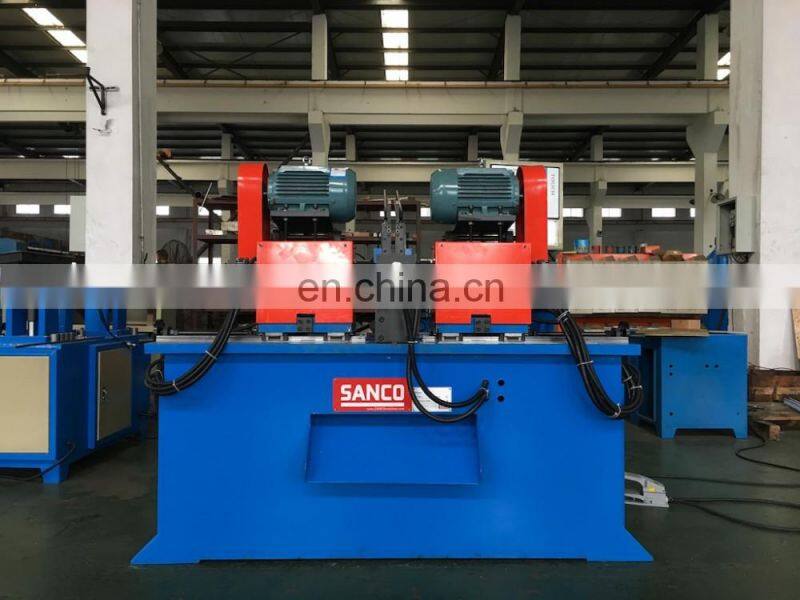

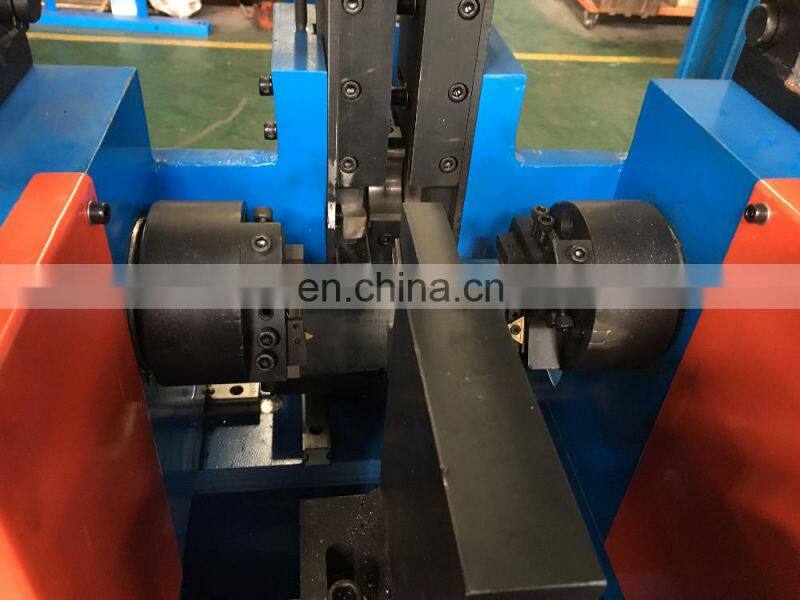

 DJ-52P-II double head chamfering machine is controlled by pneumatic, it can finish two ends of pipe / bar one time. Feeding / retracting and clamping by pneumatic, auto unloading. It has 2-step feed speed. The first step feed is high speed, then the second step feed speed is adjustable to produce clean and smooth cutting results. Changing sizes of cut are conveniently made by simply adjusting and changing cutterhead and clamp. With Taiwan core tech since 1989.

DJ-52P-II
P Pneumatic type
II Double head
Capacity Pipe Φ9 - 52 mm
Bar Φ6 - 38 mm
Pipe length 30 - 500 mm (standard) or customized
Cutterhead Φ20 - 52 mm (standard) or Φ9 - 18 (Option)
 Motor 1.5 Kw, 4 pieces
Air Pressure 6-9 kg/cm2, 60 ml/min, 0.6-0.9 Mpa
Automatic lubrication system

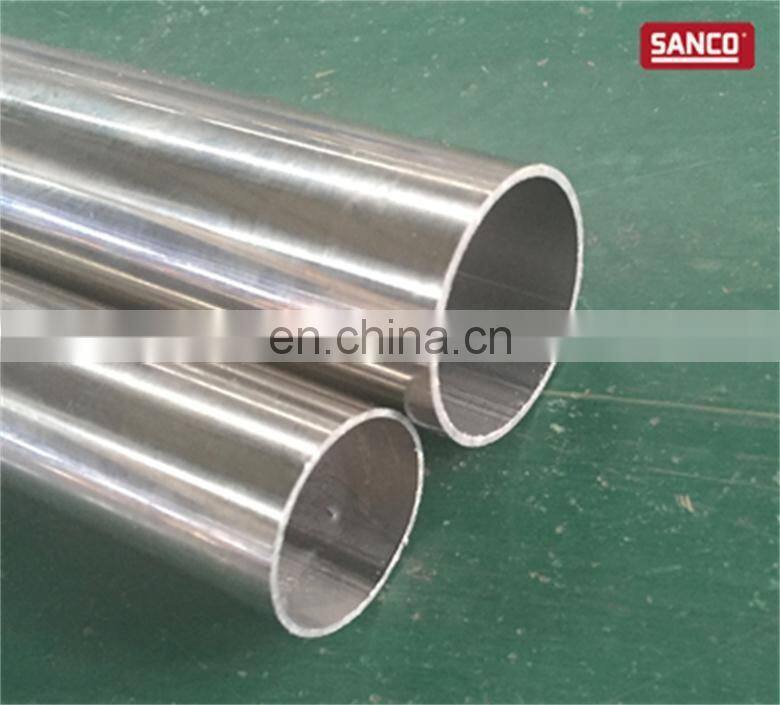

Pipe material: steel, iron, stainless steel, aluminum, bronze,
non-ferrous metal, plastic and graphite fiber ...
Round pipe and bar
CE, ISO90001 marked

Options

Cutterhead Φ3.2 - 12 mm is avaible
Auto loading
Custom circular clamping mold

Adjusted clamp vice without changing tooling, which is suitable for customer with many diamter of products

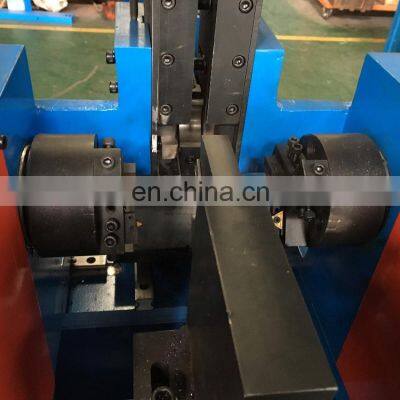

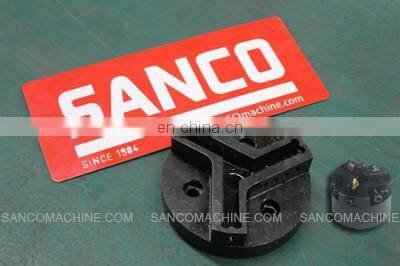

Name:Cutterhead

Brand: Sanco

Original: China

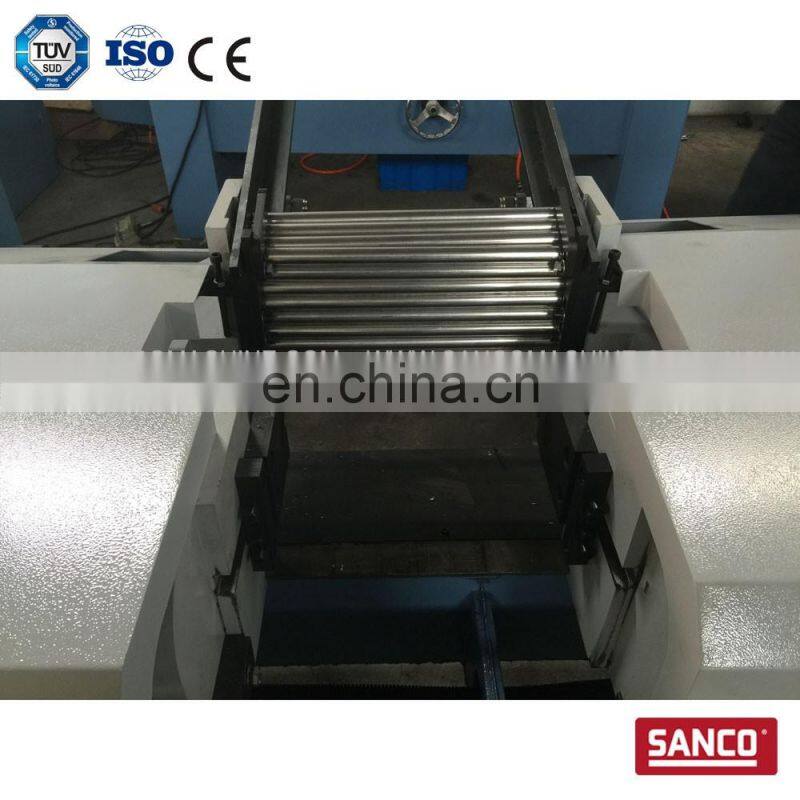

Auto loading

Machine Parts

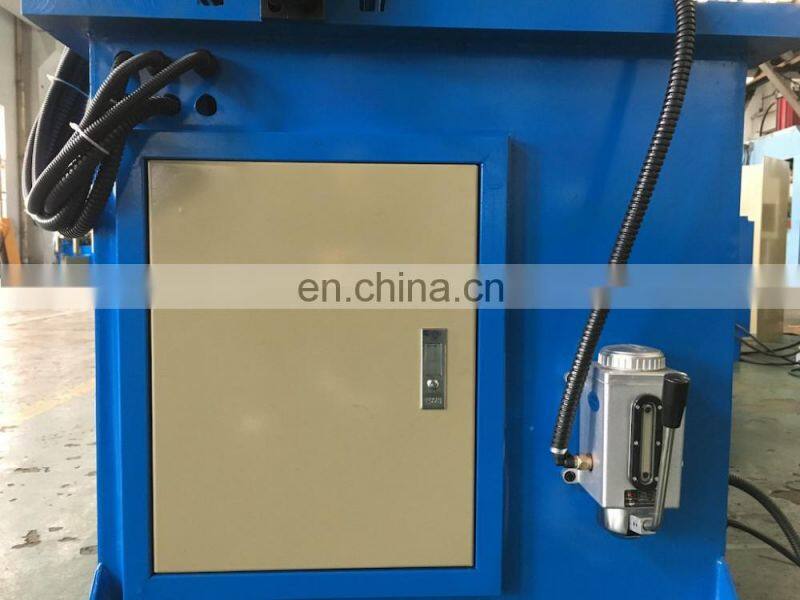

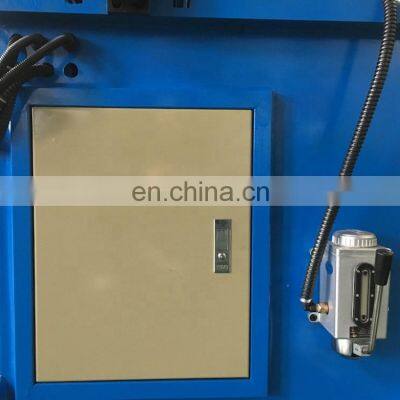

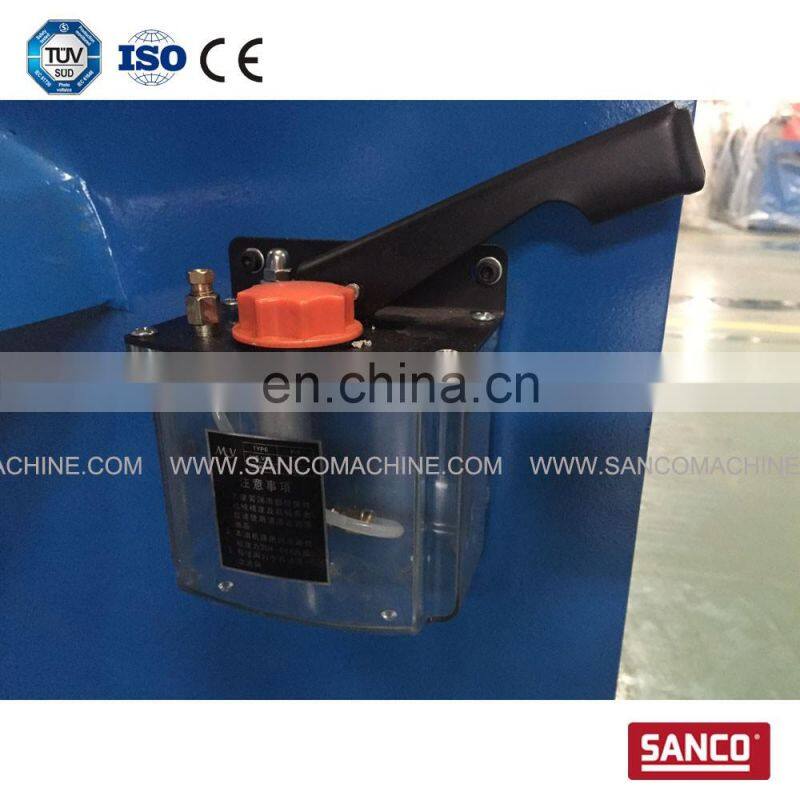

Name: Auto lubricaor
 To longer machine lifetime

Main Features

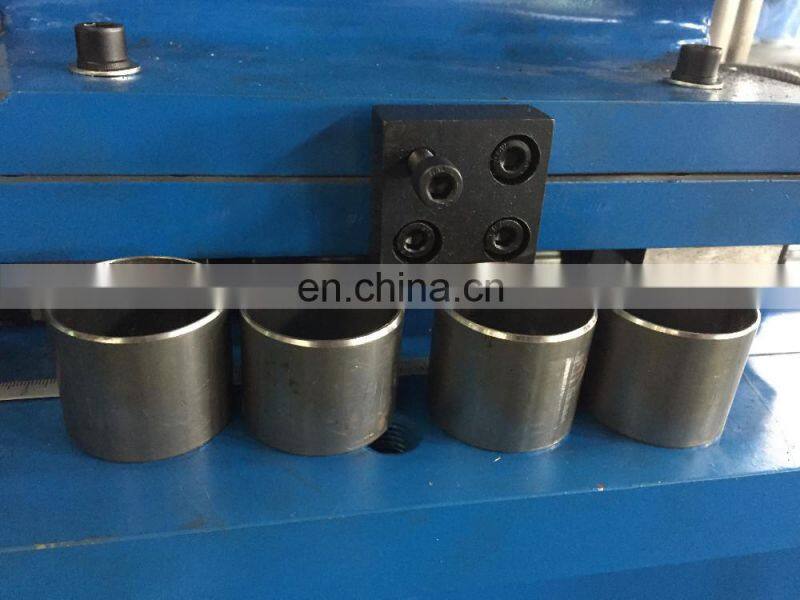

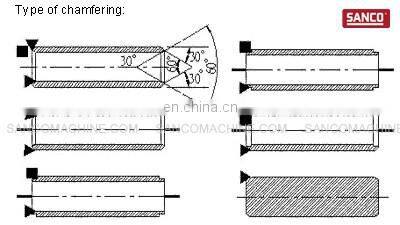

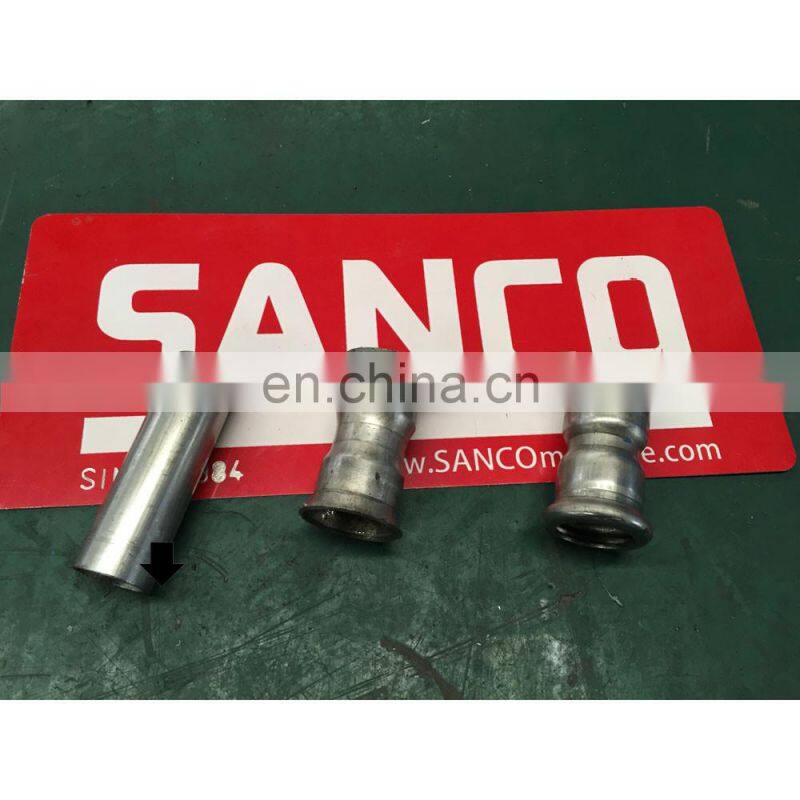

Chamfer inner, outer, and plane surface of tube

Suitable for both tubes and bars, as well as bolt with screw
