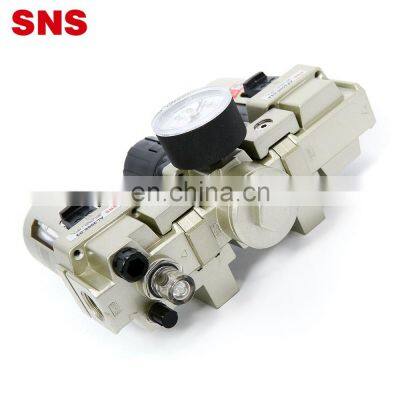

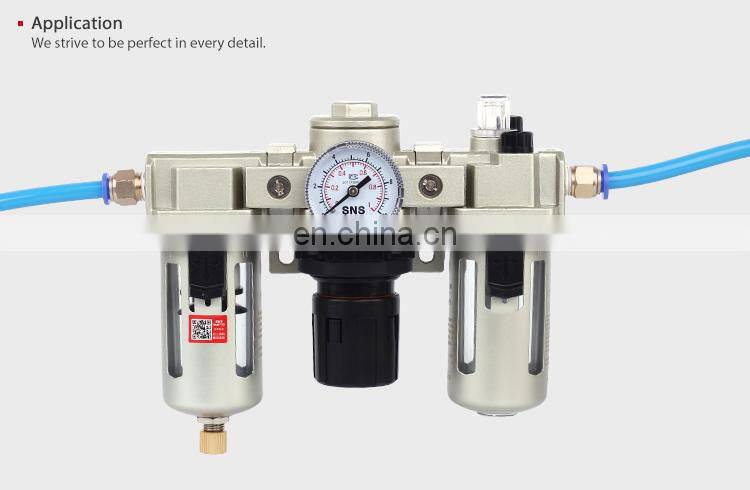

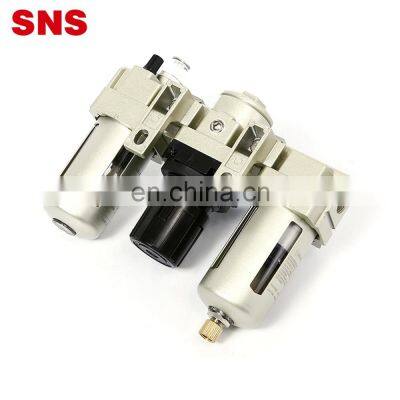

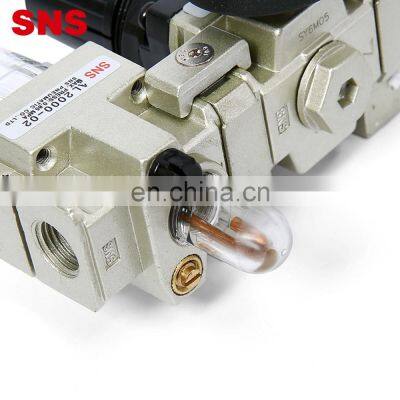

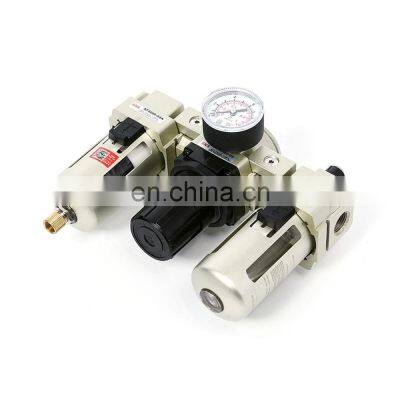

SNS Pneumatic AC Series FRL Unit Air Source Treatment Combination Air Filter Pressure Regulator With Lubricator
Negotiable
MOQ: 1 set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Business Type:
Business Service (Transportation, finance, travel, Ads, etc)
Year Established:
1990
Annual Export Value:
US$2.5 Million - US$5 Million
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
SNS AC Series F.R.L Air Source Treatment Combination Filter Regulator LubricatorNegotiableMOQ: 1 -
SNS Air Pressure Reducing Valve Air Compressor Pneumatic Air Regulating ValveNegotiableMOQ: 1
-
Air Pressure Filter Regulator Air Source Treatment Unit Pressure Regulation FilterNegotiableMOQ: 1
-
Air Source Treatment Unit With Water Separator Air Water Separator Pressure Regulation FilterNegotiableMOQ: 1
-
SNS High Quality Standard Air or Water or Oil Digital Hydraulic Pressure Regulator With Gauge Types ,china ManufactureNegotiableMOQ: 1
SNS pneumatic AC Series FRL unit air source treatment combination air filter pressure regulator with lubricator
Banner

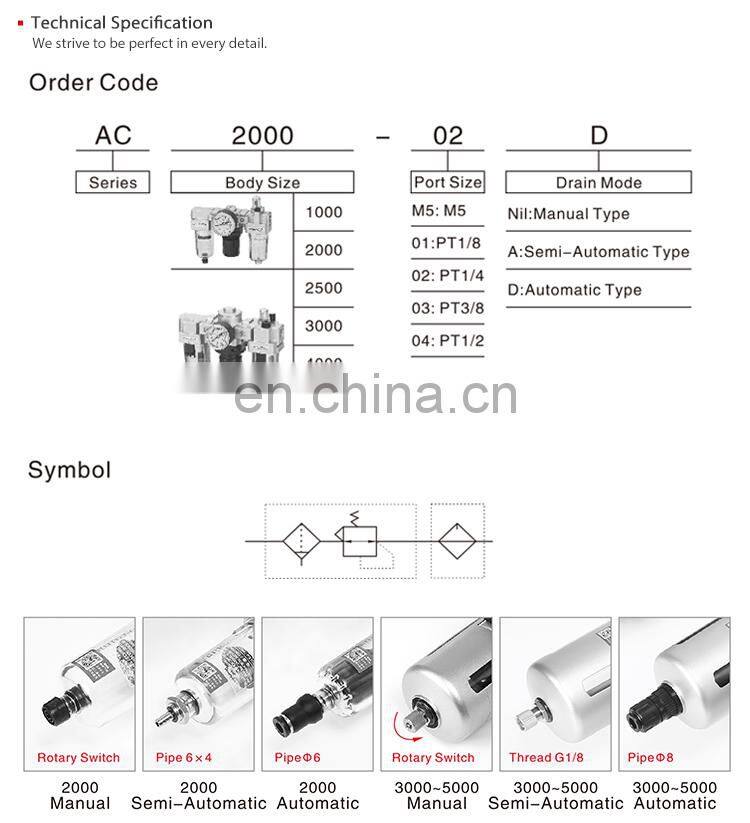

Product Description
| Model | AC1000-M5 | AC2000-01 | AC2000-02 | AC2500-02 | AC2500-03 | AC3000-02 | AC3000-03 | |
| Module | Filter | AF1000 | AF2000 | AF2000 | AF2500 | AF2500 | AF3000 | AF3000 |
| Regulator | AR1000 | AR2000 | AR2000 | AR2500 | AR2500 | AR3000 | AR3000 | |
| Lubricator | AL1000 | AL2000 | AL2000 | AL2500 | AL2500 | AL3000 | AL3000 | |
| Port Size | M5×0.8 | PT1/8 | PT1/4 | PT1/4 | PT3/8 | PT1/4 | PT3/8 | |
| Pressure Gauge Port Size | M5×0.8 | PT1/8 | PT1/8 | PT1/8 | PT1/8 | PT1/8 | PT1/8 | |
| Rated Flow(L/Min) | 90 | 500 | 500 | 1500 | 1500 | 2000 | 2000 | |
| Working Media | Compressed Air | |||||||
| Proof Pressure | 1.5Mpa | |||||||
| Range of Regulation | 0.05~0.7Mpa | 0.05~0.85Mpa | ||||||
| Ambient Temperature | 5~60℃ | |||||||
| Filter Precision | 40 μ m(Normal)or 5 μ m(Customized) | |||||||
| Suggested Lubricating Oil | Turbine NO.1 Oil(ISO VG32) | |||||||
| Bracket(two) | Y10L | Y20L | Y30L | |||||
| Pressure Gauge | Y25-M5 | Y40-01 | ||||||
| Material | Body Material | Aluminum Alloy | ||||||
| Cup Material | PC | |||||||
| Cup Cover | AC1000~AC2000:without AC2500~AC5000:with(Iron) | |||||||
| Model | AC4000-03 | AC4000-04 | AC4000-06 | AC5000-06 | AC5000-10 | |
| Module | Filter Regulator | AF4000 | AF4000 | AF4000 | AF5000 | AF5000 |
| Regulator | AR4000 | AR4000 | AR4000 | AR5000 | AR5000 | |
| Lubricator | AL4000 | AL4000 | AL4000 | AL5000 | AL5000 | |
| Port Size | PT3/8 | PT1/2 | G3/4 | G3/4 | G1 | |
| Pressure Gauge Port Size | PT1/4 | PT1/4 | PT1/4 | PT1/4 | PT1/4 | |
| Rated Flow(L/Min) | 4000 | 4000 | 4500 | 5000 | 5000 | |
| Working Media | Compressed Air | |||||
| Proof Pressure | 1.5Mpa | |||||
| Range of Regulation | 0.05~0.85Mpa | |||||
| Ambient Temperature | 5~60℃ | |||||
| Filter Precision | 40 μ m(Normal)or 5 μ m(Customized) | |||||
| Suggested Lubricating Oil | Turbine NO.1 Oil(ISO VG32) | |||||
| Bracket(one) | Y40L | Y50L | Y60L | |||
| Pressure Gauge | Y50-02 | |||||
| Material | Body Material | Aluminum Alloy | ||||
| Cup Material | PC | |||||
| Cup Cover | AC1000~AC2000:without AC2500~AC5000:with(Iron) | |||||
Note:Rated flow should be under the pressure of 0.7Mpa.

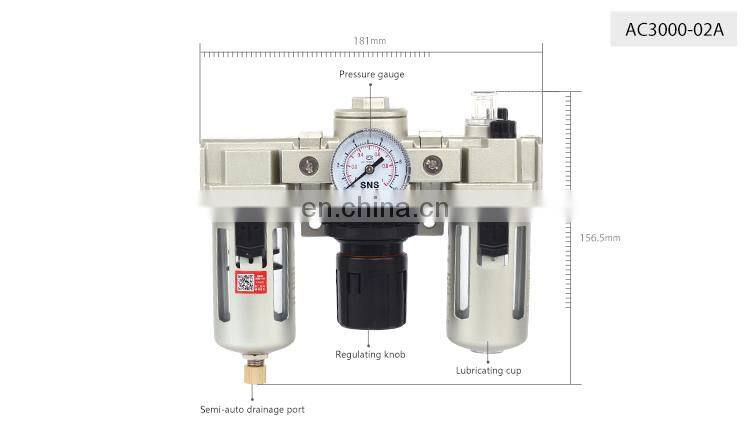

| Model | Port Size | A | B | C | D | E | F | G | H | J | K | L | M | N | P |
| AC1000 | M5×0.8 | 91 | 84.5 | 25.5 | 25 | 26 | 25 | 33 | 20 | 4.5 | 7.5 | 5 | 17.5 | 16 | 38.5 |
| AC2000 | PT1/8,PT1/4 | 140 | 125 | 38 | 40 | 56.8 | 30 | 50 | 24 | 5.5 | 8.5 | 5 | 22 | 23 | 50 |
| AC2500 | PT1/4,PT3/8 | 181 | 156.5 | 38 | 53 | 60.8 | 41 | 64 | 35 | 7 | 11 | 7 | 34.2 | 26 | 70.5 |
| AC3000 | PT1/4,PT3/8 | 181 | 156.5 | 38 | 53 | 60.8 | 41 | 64 | 35 | 7 | 11 | 7 | 34.2 | 26 | 70.5 |
| AC4000 | PT3/8,PT1/2 | 283 | 191.5 | 41 | 70 | 65.5 | 50 | 84 | 40 | 9 | 13 | 7 | 42.2 | 33 | 88 |
| AC4000-06 | G3/4 | 253 | 193 | 40.5 | 70 | 69.5 | 50 | 89 | 40 | 9 | 13 | 7 | 46.2 | 36 | 88 |
| AC5000 | G3/4,G1 | 300 | 271.5 | 48 | 90 | 75.5 | 70 | 105 | 50 | 12 | 16 | 10 | 55.2 | 40 | 115 |

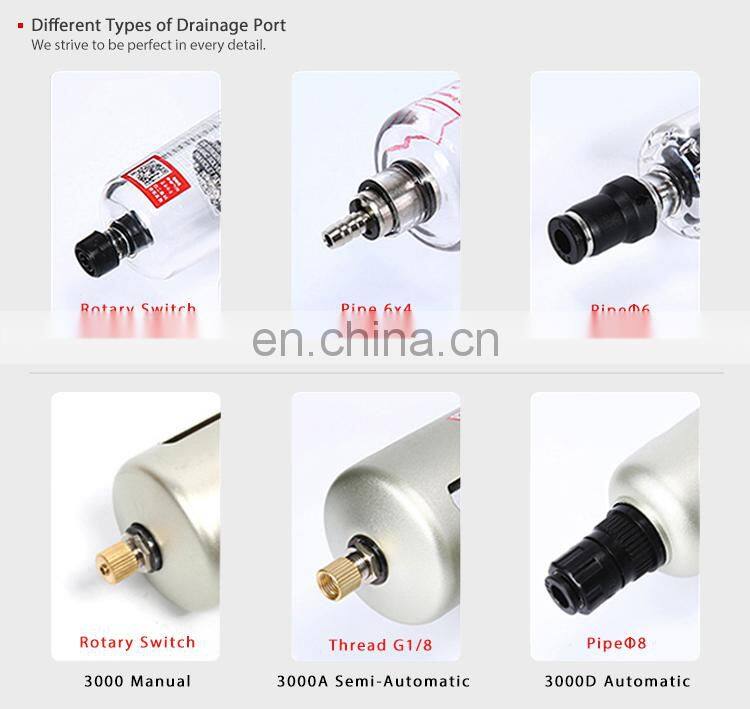

Note: B value will be different with different draining module, more details please contact sales.
Certificate
Packaging & Shipping
FAQ
Q1. Are you a manufacturer or a trading company?A1. We are a leading manufacturer of all pneumatic products. Welcome to visit our factory at any time.
Q2. What’s the payment term?A2. T/T, MasterCard, VISA, E-Checking, Boleto, Pay Later.
Q3. How about the delivery time ?A3. 1-3 days for normal models. For big orders, it takes about 10-15 days.
Q4. What is the standard of package?A4. Export standard package or special package according to customers' requirement.
Q5. What kind of product quality does your factory offer?A5. We are top 3 supplier in Chinese market. We offer top quality to our clients.
Q6. Do you accept OEM business?A6. We do OEM .
Q7. What market do you already sell to?A7. We already ship to Asia, Europe, North America, South America, Africa, Oceania.
Q8. What kind of certificate do you have ?A8. We have ISO9001, CE, CCC, etc.
