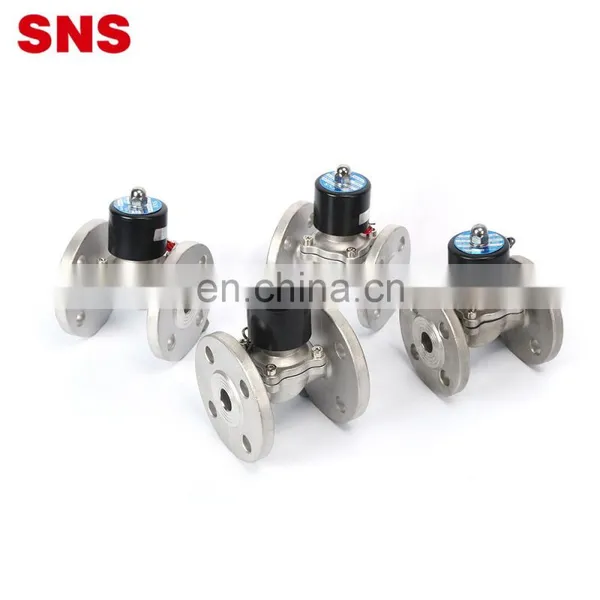

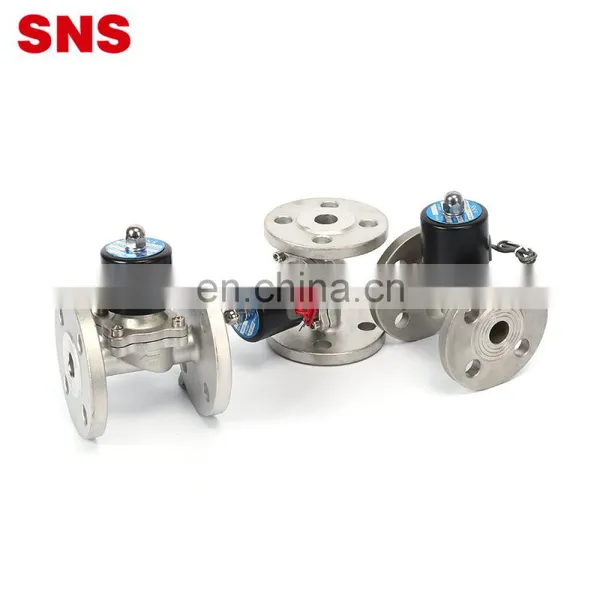

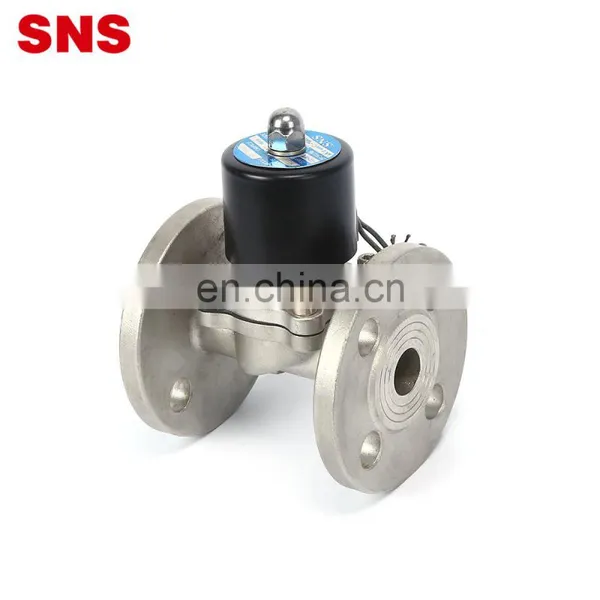

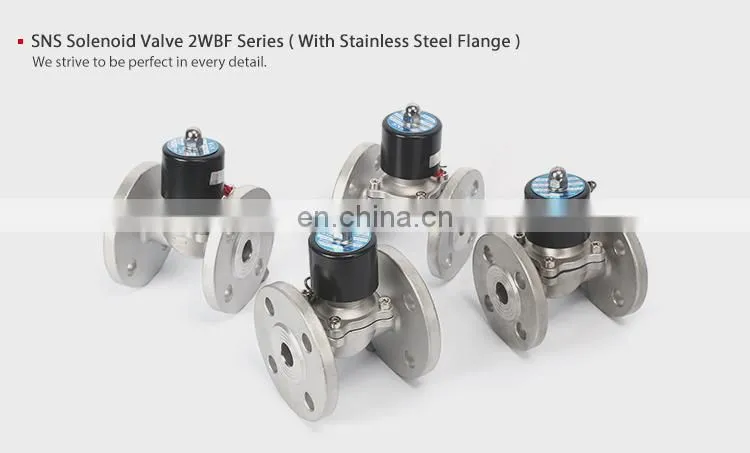

SNS 2WBF Series Liner Safety Floating Relief Pneumatic Control Valve Solenoid Valve With Stainless Steel Flange

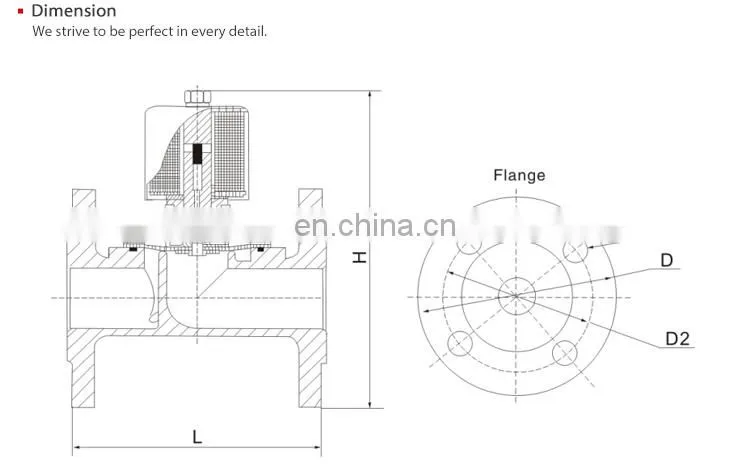

| Model | Length L (mm) | Height H (mm) | Flange D | Flange D1 | Flange D2 | CV Value | Body Material | Medium | Temperature | Working Pressure (bar) | Max. Proof Pressure (bar) |
Nominal Voltage |
| 2WBF160-15 | 106 | 141 | 90 | Φ14 | Φ65 | 3.6 |
Stainless Steel SUS304 Flange, SUS316 Need Customized |
Water/ Neutral Gasor Liquid/ Alcohol/ Steam/ Weakly Acidicand Weak Base Solution |
-5~80℃ |
Normal Closed: 0.1~10 Normal Open: 0.1~6 |
10 | DC12V DC24V AC24V 50/60Hz AC110V 50/60Hz AC220V 50/60Hz AC380V 50/60Hz |
| 2WBF200-20 | 106 | 143 | 100 | Φ14 | Φ75 | 6 | ||||||
| 2WBF250-25 | 135 | 155 | 115 | Φ14 | Φ85 | 12 | ||||||
| 2WBF350-30 | 150 | 194 | 135 | Φ18 | Φ100 | 24 | ||||||
| 2WBF400-40 | 152 | 204 | 145 | Φ18 | Φ110 | 29 | ||||||
| 2WBF500-50 | 195 | 226 | 157 | Φ18 | Φ125 | 48 |
Q1. Are you a manufacturer or a trading company?A1. We are a leading manufacturer of all pneumatic products. Welcome to visit our factory at any time.
Q2. What’s the payment term?A2. T/T, MasterCard, VISA, E-Checking, Boleto, Pay Later.
Q3. How about the delivery time ?A3. 1-3 days for normal models. For big orders, it takes about 10-15 days.
Q4. What is the standard of package?A4. Export standard package or special package according to customers' requirement.
Q5. What kind of product quality does your factory offer?A5. We are top 3 supplier in Chinese market. We offer top quality to our clients.
Q6. Do you accept OEM business?A6. We do OEM .
Q7. What market do you already sell to?A7. We already ship to Asia, Europe, North America, South America, Africa, Oceania.
Q8. What kind of certificate do you have ?A8. We have ISO9001, CE, CCC, etc.
