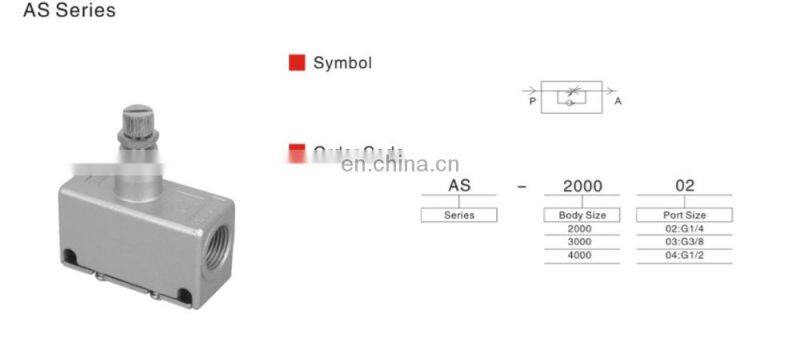

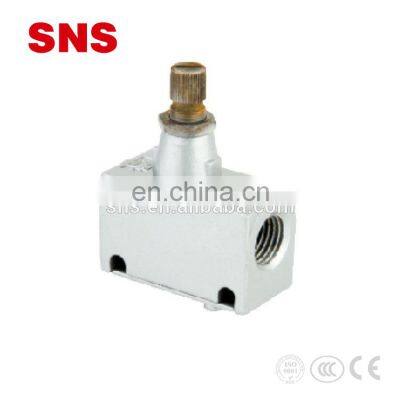

SNS AS Series Universal simple design standard aluminum alloy air flow control valve
| Model | AS2000-02 | AS3000-03 | AS4000-04 | |
| Free Folw | Flow(L/mm²) | 340 | 810 | 1670 |
| Effective Sectional Area(mm²) | 5.2 | 12.3 | 25.5 | |
| Controlled Folw | Flow(L/mm²) | 250 | 810 | 1670 |
| Effective Sectional Area(mm²) | - | 12.3 | 25.5 | |
| Port Size | G1/4 | G3/8 | G1/2 | |
| Working Media | Compressed Air | |||
| Max. Working Pressure | 0.8MPa | |||
| Proof Pressure | 1.0MPa | |||
| Working Temperature Range | 0~70℃ | |||
| Material | Body | Aluminum Alloy | ||
| Seal | NBR | |||

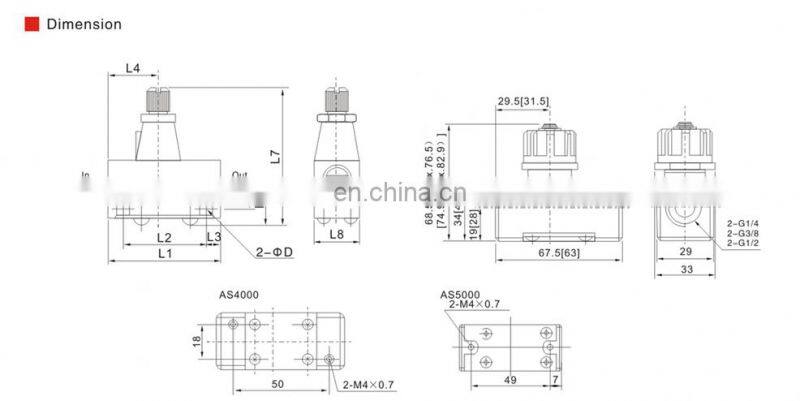

| Model | L1 | L2 | L3 | L4 | L5 | L6 | L7 Max. | L7 Min | L8 | D |
| AS2000-02 | 40 | 60 | 5 | 23 | 11.5 | 17 | 56 | 51.5 | 20 | 4.5 |
| AS3000-03 | 56 | 45.5 | 5.25 | 23 | 13.2 | 20.6 | 68 | 61 | 20 | 5.5 |
