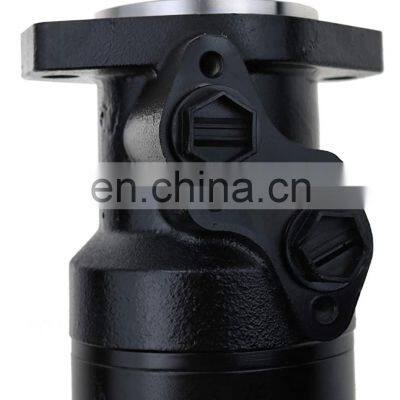

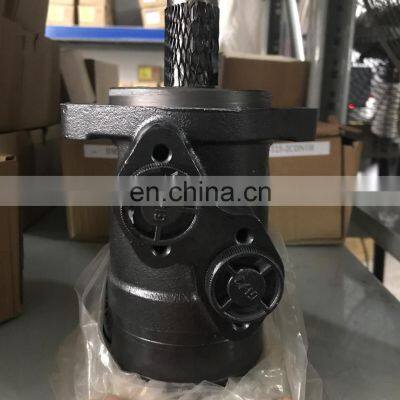

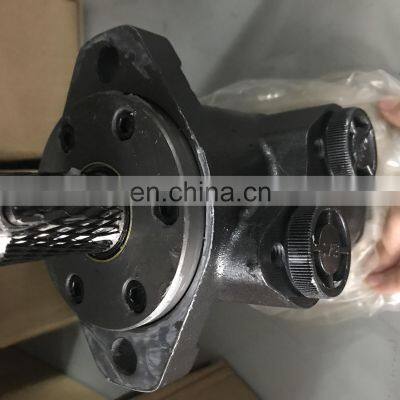

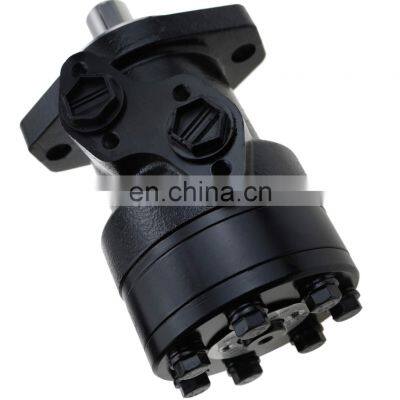

OMR100 Hydraulic motor 151-0212 with Needle Bearings

OMP motors are interchangeable with MP, SMP, BMP, OZMP or EPM motors

Orbital hydraulic motors BMP are medium size motors which have compact and light construction. They are characterized by maximum rotational speeds of 55 through 800 rpm and maximum power from 4 to 10 kW. Due to the simpe design of the motors, they can be used in light operating conditions.

Rotational speed range: from 5 through 800 rpm; maximum continuous pressure: up to 140 bar.

Features:
Displacement: 52.9 - 317.3 cm3/rev;
Rotational speed range: 5 - 800 rpm;
Maximum pressure: from 90/130 through 140/200 bar (continuous/peak);
Maximum power: 5 - 17 kW.

                                                                      Hydraulic motor spare part and production line:

   Hydraulic motor body BEFORE processing.                                                 Hydraulic motor body AFTER processing.

                                                                                     Hydraulic motor Assembly line

                                      Hydraulic motor TEST after production and before shipment.

 * Inquiry and consulting support.

* Teach how to MOUNTING and USE the hydraulic motor.
