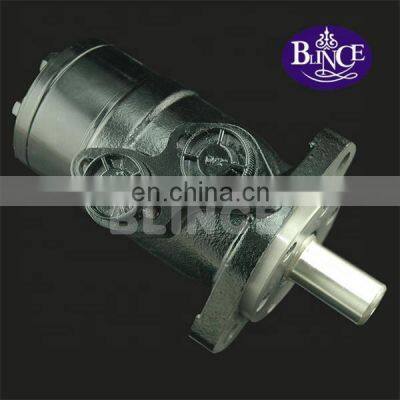

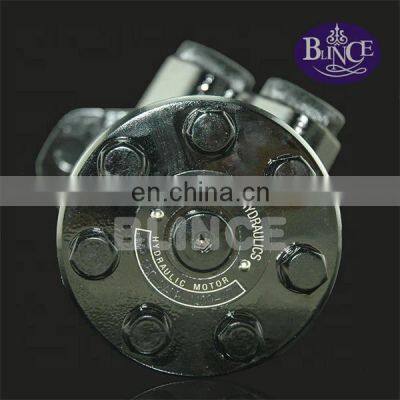

Blince OMP160 HYDRAULIC MOTOR with Drain Port Orbital Engine BMP160 Hydro Motor

Name: Blince OMP160 HYDRAULIC MOTOR with Drain Port Orbital Engine BMP160 Hydro Motor
Price: Negotiable

FOB Price

Negotiable

1 (Min.Order)

Supply Ability 1000 per Month
Payment Terms:T/T Credit Card

Request Sample Customized Request Download Product Catalog

Contact Now

Get lowest price Inquiry Basket

Product Description

Blince

Blince OMP160 HYDRAULIC MOTOR with Drain Port Orbital Engine BMP160 Hydro Motor

OMP series motor are small volume, economical type, which is designed with shaft distribution flow, which adapt the Gerotor gear set design and provide compact volume, high power and low weight.

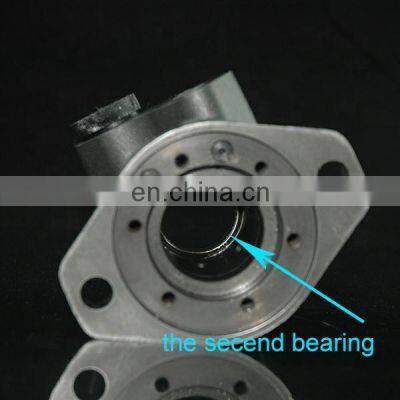

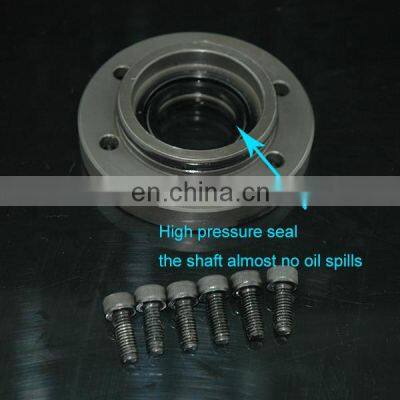

Characteristic features: 1.Advanced manufacturing devices for the Gerotor gear set, which provide small volume, high efficiency and long life. 2.Shaft seal can bear high pressure of motor of which can be used in parallel or in series. 3.Advanced construction design, high power and low weight.

Product application:

Blince hydraulic motors are widely applied in agriculture machinery, fishing machinery, plastic industry, mining, and construction machinery, especially fitted to lower load applications, such as plastic injection mold machine, cleaner, grass cutter,Winches, Conveyors, Slews, Sweeper Drives, Augers, Cutters, Mowers and Chippers.

Mounting Dimensions of OMP Hydraulic Orbit Motor
Displacement	OMP36, OMP50, OMP80, OMP100, OMP125, OMP160, OMP200, OMP250, OMP315, OMP400, OMP500
Shaft	Cylindrical Shaft Φ25, Φ25.4, Φ32. Splined Shaft Φ25.4, Φ30. Cone Shaft Φ28.56
Ports	G1/2, M18×1.5, M22×1.5, 7/8-14UNF, NPT 1/2
Flange	2-Hole rhombus Flange, 4-Hole rhombus Flange, 4-Hole Square Flange
Applications	Crane, Mixer, Winches, Excavator, Conveners, Drill Rig, Concrete Truck Mixer.
Warranty	1 year

OMP/OMPH/OMPW series:

Type

36/50

80/100

125/160

200/250

315

400

500

Geometric displacement（cm²/rev.）

36/51.7

77.7/96.2

120.2/157.2

194.5/240.3

314.5

389.5

486.5

Max.speed（rpm）

cont.

1500/1150

770/615

490/383

310/250

192

155

120

int.

1650/1450

960/770

615/475

385/310

240

190

150

Max.torque

(N*m)

cont.

55/100

146/182

236/302

360/380

375

360

385

int.

76/128

186/227

290/370

440/460

555

525

560

Max.output (kw)

cont.

8/10

10/11

10/8.5

int.

11.5/12

12/13

12/10.5

8.5

ure drop (MPa)

cont.

12.5/14

14/11

int.

16.5/17.5

17.5

17.5/14

10.5

Max.flow

(L/min)

cont.

50/60

int.

60/75

Weight(kg)

5.6/6

5.7/5.9

6/6.2

6.4/7

6.9

7.4

*Rated speed and rated torque: output value of speed and torque under rated flow and rated pressure;

*Continuous pressure: Max.value of operating motor continuously;

*Intermittent pressure: Max.value of operating motor in 6 seconds per minute;

*Peak pressure: Max.value of operating motor in 0.6 second per minute.
