Product Description

char lynn 2000 series hydraulic motor char lynn

Blince OMS series Hydraulic motor Characteristic featutres:
*Advanced manufacturing devices for the Geroler gear set,which use low pressure of start-up, provide smooth and reliable operation and high efficiency.
*The output shaft adapts in tapered roller bearings that permit high axial and radial forces.The case can offers capacities of high pressure and high torque in the wide of applications.
* Advanced design in disc distrbution flow, which can automatically compensate in operating with high volume efficiency and long life,provide smooth and reliable operation.

OMSY	Max torque (N.m)	Speed Range (rpm)	Max pressure（MPA）	Max flow（L/min）	Max power (Kw)
OMSY	Max torque (N.m)	Speed Range (rpm)	Max pressure（MPA）	Max flow（L/min）	Max power (Kw)
OMSY-80	200	100-700	20	65	9.8
OMSY-100	250	100-650	20	75	10
OMSY-125	330	80-480	20	75	10.3
OMSY-160	410	50-420	21	75	10.7
OMSY-200	540	50-320	21	75	11.1
OMSY-250	650	30-240	20	75	11.6
OMSY-315	850	30-200	20	75	12.3
OMSY-400	880	20-140	14	75	13.2

Product Name	char lynn 2000 series hydraulic motor char lynn
Material	Cast iron
Color	Black , Gray
Flange	Wheel flange
Shaft	31.75mm/32mm/1:10 tapper shaft /17th splined shaft/14th splined key shaft
Flow Distribution	Axial Distribution Type
Brand	Blince
Used	Drilling rig ,Harvesters, Augers, Conveyors, Machine Tools, Food Processing

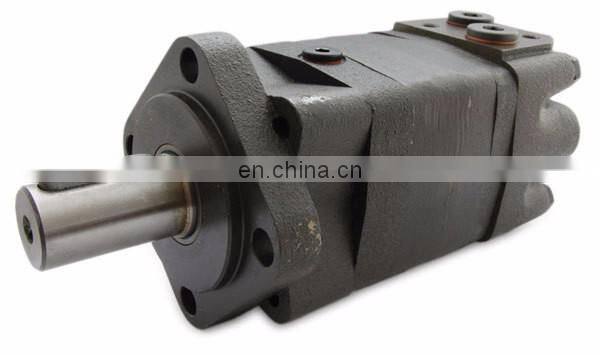

Products Show

EPMSY - Reinforced orbital motor (OMS) with straight 32mm shaft and SAE A-4 4-bolt mount

EPMSYE - Reinforced orbital motor (OMS) with straight 32mm shaft and SAE A-4 4-bolt mount rear ports

EPMSYF - Reinforced orbital motor (OMS) with splined 14th shaft and magneto mount

EPMSS - Orbital motor (OMSS) short model

EPMSW - Orbital motor (OMSW) with 1:10 tapered 35mm shaft and wheel mount

Our Service

All series hydraulic orbit motor

Radial piston hydraulic motor replace NHM/Staff

BZZ/101/101S steering control unit replace OSPB/OSPC

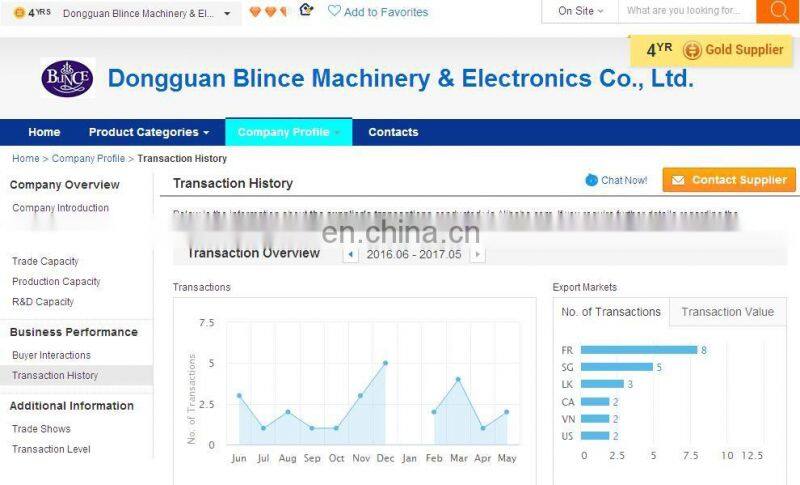

Transaction History

Transaction Overview

Translation amount

Warehouse

Workline

Packing & Delivery

Packing Details : Standard export wooden case package/ Pallet package

Delivery Details : 3-30 days after order and get the payment.

1. Cartons package

2. Wooden case package

3. pallet package

4. Standard wooden case package

5. Waterproof package

6. Complete package

Our Certifications

Customer Photo

Russian customers

After visit Blince-hydraulic factory, customer purchase OMT250cc hydraulic motor for their Drilling rig.

France customer purchase about 500pcs for the mini Excavator every two month.

Vietnamese distributor purchase 1000pcs motor,pump ans steering control unit for local customer each month.

The application about Blince all series OMM/OMP/OMPH/OMR/OMRS/OMH/OMSY/OMT/OMV

hydraulic motor.
hydraulic motors are widely applied in agriculture machinery, fishing machinery, plastic industry, mining, and construction machinery, especially fitted to lower load applications, such as plastic injection mold machine, cleaner, grass cutter,Winches, Conveyors, Slews, Sweeper Drives, Augers, Cutters, Mowers and Chippers

The advantage about Blince hydraulic motor:

1.high pressure of shaft seal. No break!!

2.freely disassemble leakage,no leakage!!

3.phosphating coating to protect from rusting,no rust!!

4.double needle bearing ,can bear more large radial force
