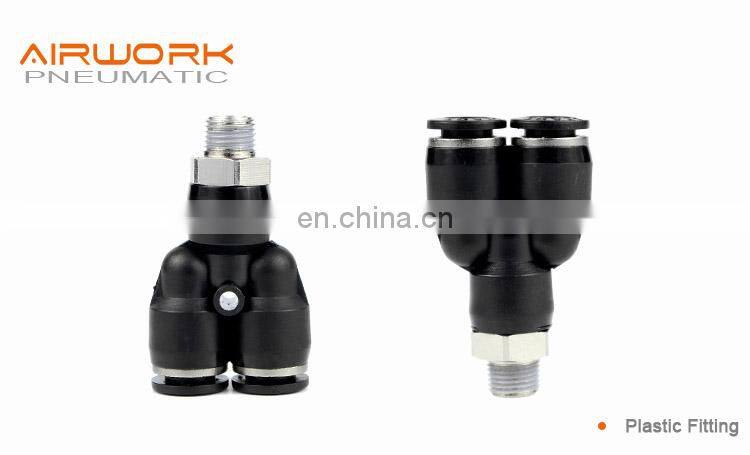

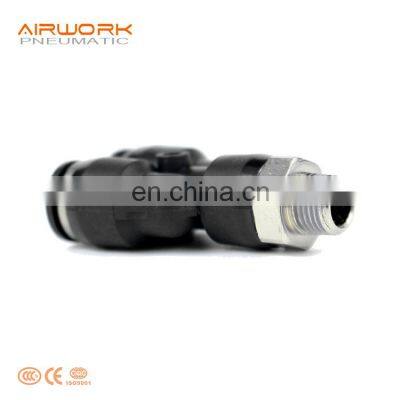

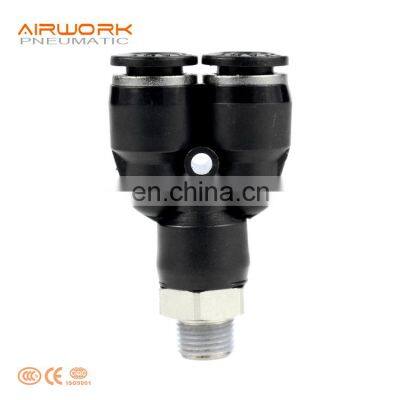

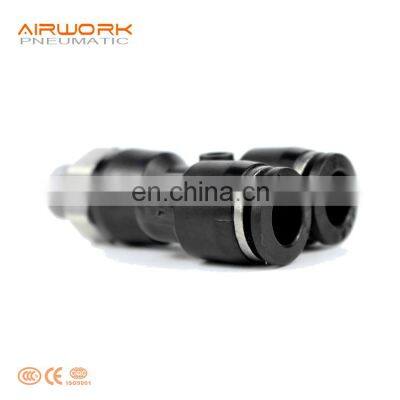

PX Black Three 3 Way Elbow Pneumatic Plastic y Branch Shaped Male Pvc Pipe Fittings
Negotiable
MOQ: 1 set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Business Type:
Trading Company
Year Established:
1990
Annual Export Value:
Below US$1 Million
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
PY-4 Three Way Elbow Y Type Pneumatic Quick Black Plastic Connect Pipe Fittings China Nylon Round Tube ConnectorsNegotiableMOQ: 1 -
PZA Pneumatic Plastic One Touch Air Compressor 4 Way Union Cross Tube FittingsNegotiableMOQ: 1
-
SL Pneumatic Throttle Quick Air Speed Controller Control Valve Pneumatic FittingNegotiableMOQ: 1
-
PCF 6 mm Female Straight Plastic Quick Connect Pneumatic Fitting Mechanical Tube ConnectorNegotiableMOQ: 1
-
PL One Touch Thread Pvc Pipe Fittings 90 Degree 1/2\" Plastic Elbow Tube ConnectorNegotiableMOQ: 1
PX Black Three 3 way elbow Pneumatic Plastic y branch Shaped Male pvc pipe fittings
Product Description

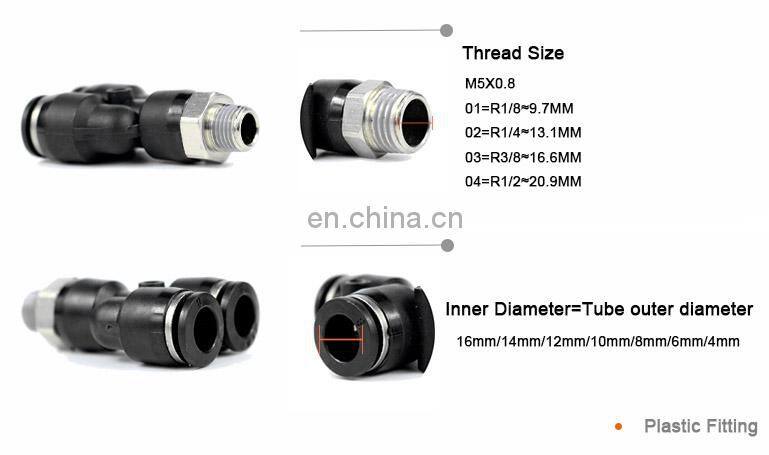

| Tube Diameter | Φ4 Φ6 Φ8 Φ10 Φ12 Φ14 Φ16 |
| Working Medium |
Air |
| Working Pressure | 0-0.9 MPa |
| Proof Pressure | 1.32 Mpa |
| Proof Vacuum Pressure | -100Kpa(10Torr) |
| Working Temp | 0℃~60℃ |
| Material | Brass with nickle plated;Plastic |

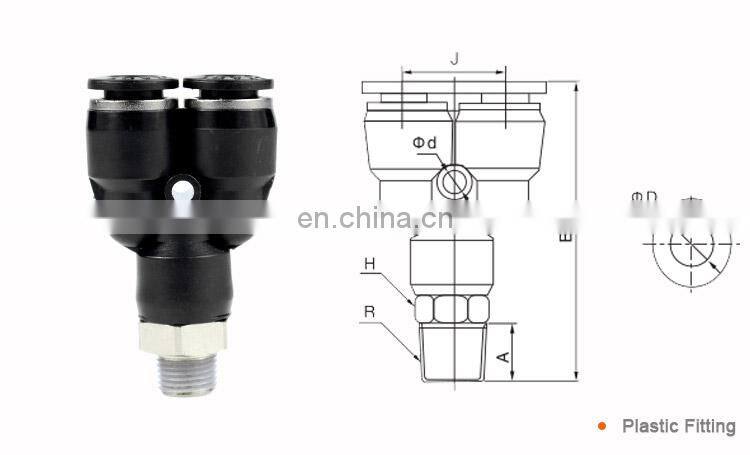

| Model | A | B | H | R | ΦD |
| 4-M5 |
4.5 |
42.5 | 10 | M5 | Φ4 |
| 4-01 | 7 | 43 | 10 | R1/8 | Φ4 |
| 4-02 | 9 | 45.5 | 14 | R1/4 | Φ4 |
| 6-M5 | 4.5 | 45.5 | 12 | M5 | Φ6 |
| 6-01 | 7 | 46 | 12 | R1/8 | Φ6 |
| 6-02 | 9 | 48.5 | 14 | R1/4 | Φ6 |
| 6-03 | 10 | 48.5 | 17 | R3/8 | Φ6 |
| 6-04 | 10 | 51 | 21 | R1/2 | Φ6 |
| 8-01 | 8 | 51 | 14 | R1/8 | Φ8 |
| 8-02 | 10 | 53 | 14 | R1/4 | Φ8 |
| 8-03 | 10 | 53.5 | 17 | R3/8 | Φ8 |
| 8-04 | 11 | 55 | 21 | R1/2 | Φ8 |
| 10-01 | 8 | 56.5 | 17 | R1/8 | Φ10 |
| 10-02 | 10 | 58.5 | 17 | R1/4 | Φ10 |
| 10-03 | 10 | 58.5 | 17 | R3/8 | Φ10 |
| 10-04 | 11 | 59.5 | 21 | R1/2 | Φ10 |
|
12-01 |
8 | 62 | 19 | R1/8 | Φ12 |
| 12-02 | 10 | 64 | 19 | R1/4 | Φ12 |
Send inquiry now!
Company Information
Production Flow
Packaging & Shipping
Payment
FAQ
Q1. Are you manufacturer or trading company?
A1. We are the manufacturer mainly producing fitting, cylinder,tube with good quality.
Q2. What’s the delivery time ?
A2. Normal model 1-3days,because we have ability to do the stock.For big order,it takes about 10-15days.
Q3. What is the standard of package?
A3. Export standard package or special package according to customer requirement.
Q4. what kind of product quality your factory offer?
A4. We are the suppliers of the top three pneumatic company.We offer top quality to help client to get more market.
Q5. Do you accept OEM business?
A5. We do OEM .
Q6. Which market do you already sell?
A6. We already ship to Middle East, Asia, South America , Afria etc.
