Home > Auto, Motorcycle Parts & Accessories > Auto Engine > Gasoline Engine > S2A K27 318615 318570 174735 RE503097 RE508876 RE508971 RE509818 RE59379 RE59997 471049-0001 Turbo Charger for John Deere 4045T

S2A K27 318615 318570 174735 RE503097 RE508876 RE508971 RE509818 RE59379 RE59997 471049-0001 Turbo Charger for John Deere 4045T

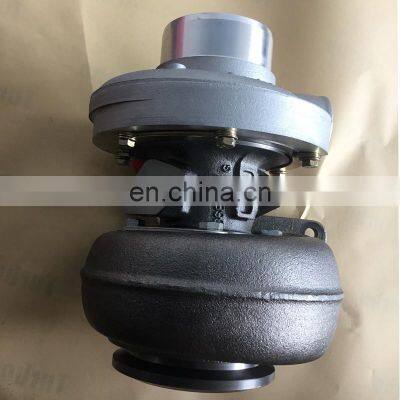

S2A K27 318615 318570 174735 RE503097 RE508876 RE508971 RE509818 RE59379 RE59997 471049-0001 Turbo Charger for John Deere 4045T photo-1

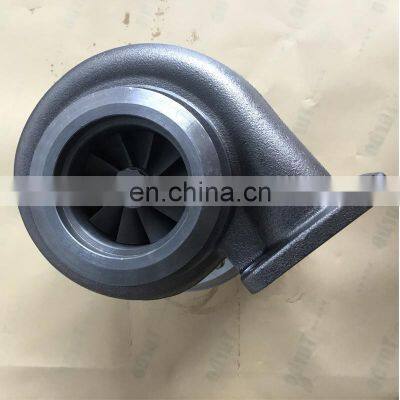

S2A K27 318615 318570 174735 RE503097 RE508876 RE508971 RE509818 RE59379 RE59997 471049-0001 Turbo Charger for John Deere 4045T photo-2

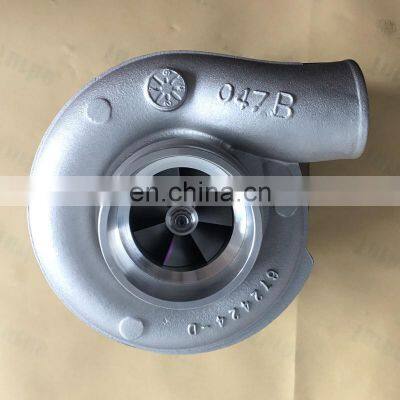

S2A K27 318615 318570 174735 RE503097 RE508876 RE508971 RE509818 RE59379 RE59997 471049-0001 Turbo Charger for John Deere 4045T photo-3
S2A K27 318615 318570 174735 RE503097 RE508876 RE508971 RE509818 RE59379 RE59997 471049-0001 Turbo Charger for John Deere 4045T photo-4
S2A K27 318615 318570 174735 RE503097 RE508876 RE508971 RE509818 RE59379 RE59997 471049-0001 Turbo Charger for John Deere 4045T photo-5
Negotiable MOQ: 1 set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Business Type:
Agent
Year Established:
2011
Annual Export Value:
US$1 Million - US$1.5 Million
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.

S2A  K27 318615 318570 174735 RE503097 RE508876 RE508971 RE509818 RE59379 RE59997 471049-0001 turbo charger for John Deere 4045T

Product Description
Eastern Factory Prices Turbocharger
S2A  K27 318615 318570 174735 RE503097 RE508876 RE508877 RE508971 RE509818 RE59379 RE59997 471049-0001 turbo charger for John Deere 4045T Diesel Engine & parts
S2A  K27 318615 318570 174735 RE503097 RE508876 RE508971 RE509818 RE59379 RE59997 471049-0001 turbo charger for John Deere 4045T

    20% discount on inquiry customers!



SKU p20531007
GW 13kg
Part Number 318615
Previous Version 318570, 174735
Interchangeable RE503097, RE508876, RE508877, RE508971, RE509818, RE59379, RE59997, RE59999, RE60069, RE60076, RE67647, RE70995
OE number RE508971, RE509818, RE523366, RE508973, 3990023112
Interchangeable Turbo Part OE No 471049-0001, 471049-0002, 471049-0003, 471049-0006, 471049-0008, 471049-9001, 471049-9004
Year 2000-12
Description Gen Set
Manufacturer Part Number 318570, 418570
CHRA 318613
Interchangeable CHRA 446311-0006
Turbo Model S2A, S2A090, K27-112
Engine Model 4045 & 4045T
Displacement 4.5L, 4500 ccm
KW 102/137
Fuel Diesel
Angle α (compressor housing 24°
Angle β (turbine housing)
Bearing Housing 318609
Turbine Wheel 314653 (Ind. 52.8 mm, Exd. 61. mm, 10 Blades)(301030001, 1228000015)
Comp. Wheel 197611 (409096-0008)(Ind. 38.1 mm, Exd. 60.95 mm, Trm 8.48, 6+6 Blades, Billet)
Back plate 197340 (408045-0041)
Heat shield Number 193975 (49168-18900, 193975)(1352346)
Repair Kit 318477 (1252102750)
Turbine Housing 318567
Compressor Cover 317367
Gasket (turbine inlet) 407294-0001 (310694, 312617)(303031063) $8.20
Gasket (oil outlet) 210021 (148062, 210021-0000, , 311496, 3519807, 409037-0000, 413671-0000)(1900000027)
Gasket Kit 318418
Replaced By 318614

 Applications

2000-12 John Deere Industrial Gen Set With 4045T Engine

 Choose us you will gain :

                                 1. 15% discount price item .

                                           2. Electronic version of the installation instructions and product maintenance manual.

                                          3. Electronic version of the warranty instructions.

(Please note: Product damage caused by improper installation and use is not covered by the warranty.)

S2A  K27 318615 318570 174735 RE503097 RE508876 RE508971 RE509818 RE59379 RE59997 471049-0001 turbo charger for John Deere 4045T

S2A  K27 318615 318570 174735 RE503097 RE508876 RE508971 RE509818 RE59379 RE59997 471049-0001 turbo charger for John Deere 4045TS2A  K27 318615 318570 174735 RE503097 RE508876 RE508971 RE509818 RE59379 RE59997 471049-0001 turbo charger for John Deere 4045TS2A  K27 318615 318570 174735 RE503097 RE508876 RE508971 RE509818 RE59379 RE59997 471049-0001 turbo charger for John Deere 4045TS2A  K27 318615 318570 174735 RE503097 RE508876 RE508971 RE509818 RE59379 RE59997 471049-0001 turbo charger for John Deere 4045TS2A  K27 318615 318570 174735 RE503097 RE508876 RE508971 RE509818 RE59379 RE59997 471049-0001 turbo charger for John Deere 4045T

S2A  K27 318615 318570 174735 RE503097 RE508876 RE508971 RE509818 RE59379 RE59997 471049-0001 turbo charger for John Deere 4045T

Related Products


S2A  K27 318615 318570 174735 RE503097 RE508876 RE508971 RE509818 RE59379 RE59997 471049-0001 turbo charger for John Deere 4045T

S2A  K27 318615 318570 174735 RE503097 RE508876 RE508971 RE509818 RE59379 RE59997 471049-0001 turbo charger for John Deere 4045T

Packaging & Shipping


S2A  K27 318615 318570 174735 RE503097 RE508876 RE508971 RE509818 RE59379 RE59997 471049-0001 turbo charger for John Deere 4045T

FAQ


S2A  K27 318615 318570 174735 RE503097 RE508876 RE508971 RE509818 RE59379 RE59997 471049-0001 turbo charger for John Deere 4045T

Q1. Where is your company?
A: We are located in Fengcheng City Erlongshan Industrial Park, Liaoning Province, China(Mainland)



Q2. What is your terms of packing?
A: Generally, we pack our goods in plastic bags  and brown cartons. If you have legally registered patent, we can pack the goods in your branded boxes after getting your authorization letters.



Q3. What is your terms of payment?
A: T/T 30% as deposit, and 70% before delivery. We’ll show you the photos of the products and packages before you pay the balance.



Q4. What is your terms of delivery?
A: EXW, FOB, CFR, CIF, DDU.



Q5. How about your delivery time?
A: Generally, it will take 7 to 15 days after receiving your advance payment. The specific delivery time depends on the items and the quantity of your order.



Q6. Can you produce according to the samples?
A: Yes, we can produce by your samples or technical drawings. We can build the molds and fixtures.



Q7. What is your sample policy?
A: We can supply the sample if we have ready parts in stock, but the customers have to pay the sample cost and the courier cost.



Q8. Do you test all your goods before delivery?
A: Yes, we have 100% test before delivery.



Q9: How do you make our business long-term and good relationship?
A:1. We keep good quality and competitive price to ensure our customers’ benefit ;
   2. We respect every customer as our friend and we sincerely do business and make friends with them, no matter where they come from.

 S2A  K27 318615 318570 174735 RE503097 RE508876 RE508971 RE509818 RE59379 RE59997 471049-0001 turbo charger for John Deere 4045T
