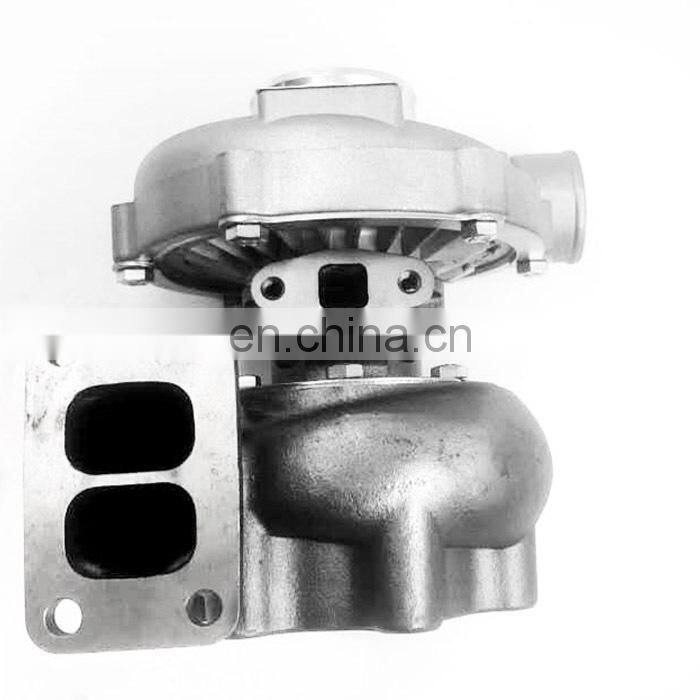

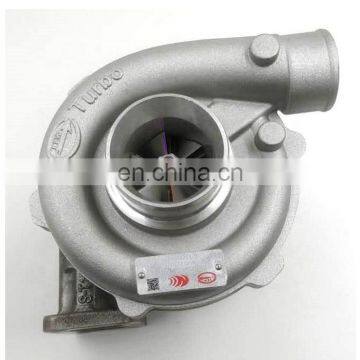

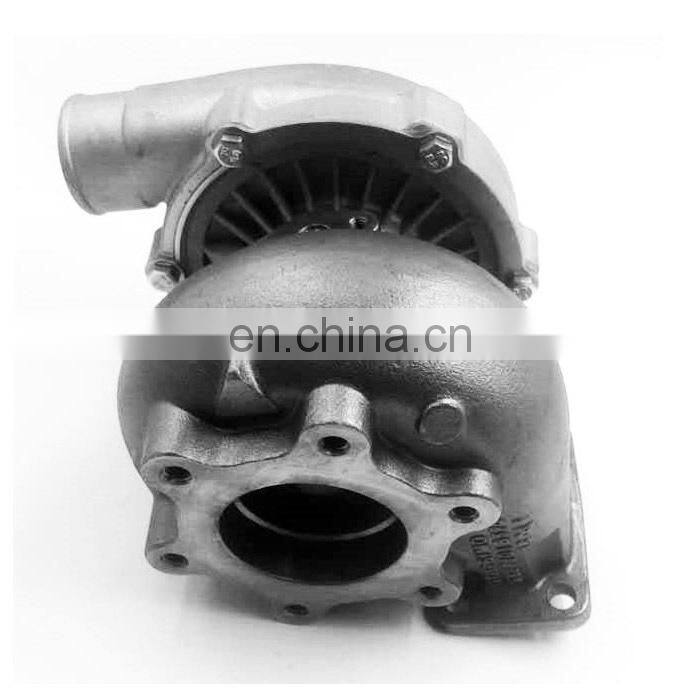

Help CenterTurbocharger T04E55 730505-5002S 730505-1 65091007083 65.09100-7137 65091007083 65.09100-7082 Turbo for Daewoo DE08TIS Excavator
Related Products
-
Factory Turbocharger HX25W 3599350 3599351 2852068 504061374 Turbo Charger for Holset Iveco BHL 4CYL2VTC EngineNegotiableMOQ: 1 -
Turbocharger S310 172831 3595392 20R0127 211-6964 2116964 10R0568 Turbo Charger for Caterpillar Perkins Earth Moving C18 DieselNegotiableMOQ: 1
-
Turbocharger S2B 315705 315654 315704 315739 315820 316835 04232274KZ 4232851KZ 318874 Turbo Charger for Deutz Various BF6L913CNegotiableMOQ: 1
-
Factory Prices Turbocharger K03 53039880260 53039880288 53039700240 Turbo Charger for Volvo Ford Land Rover Range Rover AJ-i4DNegotiableMOQ: 1
-
Factory Prices Turbocharger RHF3 JF140009 13900-83G52 1390083G52 Turbocharger for Suzuki T06 Kei HN22S TA-MC22S K6A 4AT 2WDNegotiableMOQ: 1
20% discount on inquiry customers!
| Part Number | 730505-5001S |
| Previous Version | 730505-0001, 730505-0002, 730505-1 |
| OE number | 65091007082, 65091007137, 65091007083 |
| Description | Daewoo (D.H. I) Excavator DE08TIS |
| CHRA | 447450-0137 (447450-5137S) |
| Turbo Model | T04E55 |
| Engine | DE08 EPA Tier 2, DE08 |
| Engine Manufacturer | for Daewoo |
| Displacement | 8.0L, 8000 ccm, 6 Cylinders |
| Fuel | Diesel |
| KW | 260/264 HP |
| RPM Max | 2300 |
| Bearing Housing | 430027-0025 (186879, 186881, 312379, 430027-0022, 430027-0048) (1100030450)(Oil Cooled) |
| Turbine Wheel | 446905-0002 (407276-0006, 407276-0019, 410188-0006, 410188-0037, 446905-0005, 446905-0007, 446905-0010, 451309-0003)(Ind. 64. mm, Exd. 73. mm, Trm 77, 11 Blades) |
| Comp. Wheel | 446618-0026 (Ind. 53. mm, Exd. 82. mm, Trm 42, 6+6 Blades) |
| Back plate | 408045-0064 (408045-0061) |
| Heat shield Number | 409299-0000 (409299-0001)(311943, 7N0012, 3524773B) |
| Repair Kit | 468265-0000 (1100040760) |
| Turbine Housing | 441619-0010 |
| Compressor Cover | 443219-0204 |
| Gasket (turbine inlet) | 409039-0000 (Inox Steel)(409039-0001, 210019, 2405022)(1900000006) |
| Gasket (turbine outlet) | 210274 (Stainless Steel) |
| Gasket (oil outlet) | 210021 (148062, 311496, 3519807, 413671-0000, 409037-0000)(1900000027) |
| Gasket oil inlet | 210023 (210023-0000, 147837, 215234, 55739, 3709737, 3500681, 3519762, 409266-0001, 409036-0000, 409026-0001, 52231586500)(1900000037) |
| Manufacturer | for Honeywell-Garrett |
Applications
for 2006- Daewoo Excavator DE08TIS with DE08 Engine
warranty:12 months
Choose us you will gain :1. 15% discount price item .
2. Electronic version of the installation instructions and product maintenance manual.
3. Electronic version of the warranty instructions.
(Please note: Product damage caused by improper installation and use is not covered by the warranty.)
Q1. Where is your company?
A: We are located in Fengcheng City Erlongshan Industrial Park, Liaoning Province, China(Mainland)
Q2. What is your terms of packing?
A: Generally, we pack our goods in plastic bags and brown cartons. If you have legally registered patent, we can pack the goods in your branded boxes after getting your authorization letters.
Q3. What is your terms of payment?
A: T/T 30% as deposit, and 70% before delivery. We’ll show you the photos of the products and packages before you pay the balance.
Q4. What is your terms of delivery?
A: EXW, FOB, CFR, CIF, DDU.
Q5. How about your delivery time?
A: Generally, it will take 7 to 15 days after receiving your advance payment. The specific delivery time depends on the items and the quantity of your order.
Q6. Can you produce according to the samples?
A: Yes, we can produce by your samples or technical drawings. We can build the molds and fixtures.
Q7. What is your sample policy?
A: We can supply the sample if we have ready parts in stock, but the customers have to pay the sample cost and the courier cost.
Q8. Do you test all your goods before delivery?
A: Yes, we have 100% test before delivery.
Q9: How do you make our business long-term and good relationship?
A:1. We keep good quality and competitive price to ensure our customers’ benefit ;
2. We respect every customer as our friend and we sincerely do business and make friends with them, no matter where they come from.
